The Series alpha_300 Care
For applications with specific requirements, the alpha_300 Care expands the design universe of the alpha_300 with functional features tailored to the healthcare sector. The clean, understated design language of the standard range is retained and is effectively complemented by longer levers and laminar flow aerators. The result is mixers that promote ease of use, hygiene and reliable performance in settings where everyday safety and practical handling are particularly important. The alpha_300 Care combines design clarity with a design tailored to medical, care and accessibility-focused applications.
Technical information
Product features
- Z059811-96010
- Heinrich Schulte
- Kitchen wall mounted mixer
- chrome
- reach 115 mm
- centre distance 135 - 165 mm
- open cartridge 35 mm
- with hot water and flow rate limiter
- spout swivelling
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- aerator laminar
- noise level test mark PA-IX 7260/IIA
- for wall mounting
- suitable for instantaneous water heaters
- for elbow lever action
- with reinforced cartridge screw connection
Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Kitchen mixer
- Mounting kit
- Cast spout
- Rosettes
- S-connectors
- Assembly instruction
- Care instruction
Spare parts

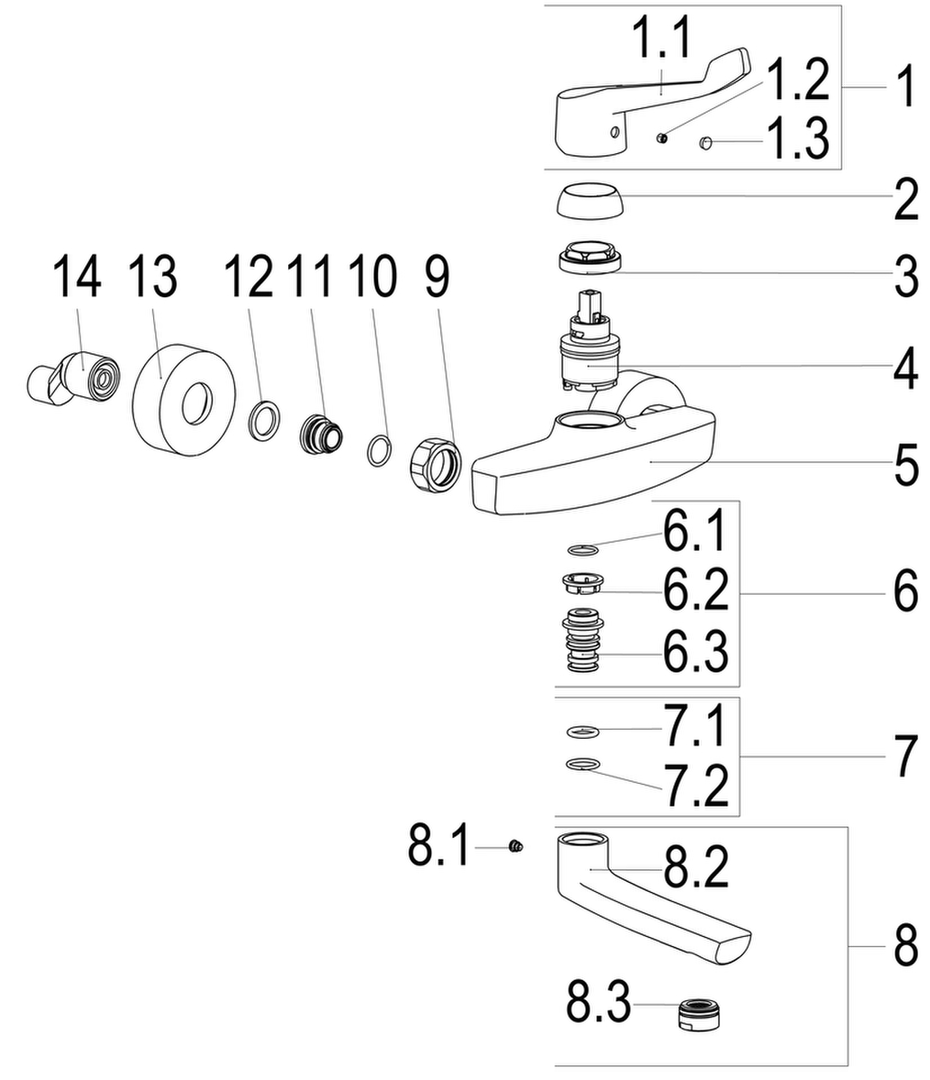

Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH BEDIENUNGSHEBEL ALPHA_300 | Z059990-00010 |
| 2 | SH ROSETTE M37 X 1,5 / D:39,7X12 | Z009110-00010 |
| 3 | SH VERSCHRAUBUNG | Z009111-00000 |
| 4 | SH KARTUSCHE FÜR NORMALDRUCK | Z009203-00001 |
| 7 | SH DICHTUNGSSATZ | Z001814-00000 |
| 8 | SH AUSLAUF FÜR EHM KÜCHENWANDARM. | Z054811-11011 |
| 9 | SH WANDANSCHLUSSMUTTER 3/4" | Z000144-00010 |
| 11 | SH ANSCHLUSSNIPPEL MIT O-RING | Z000147-00000 |
| 13 | SH ROSETTE FÜR S-ANSCHLUSS 3/4" | Z009469-00010 |
