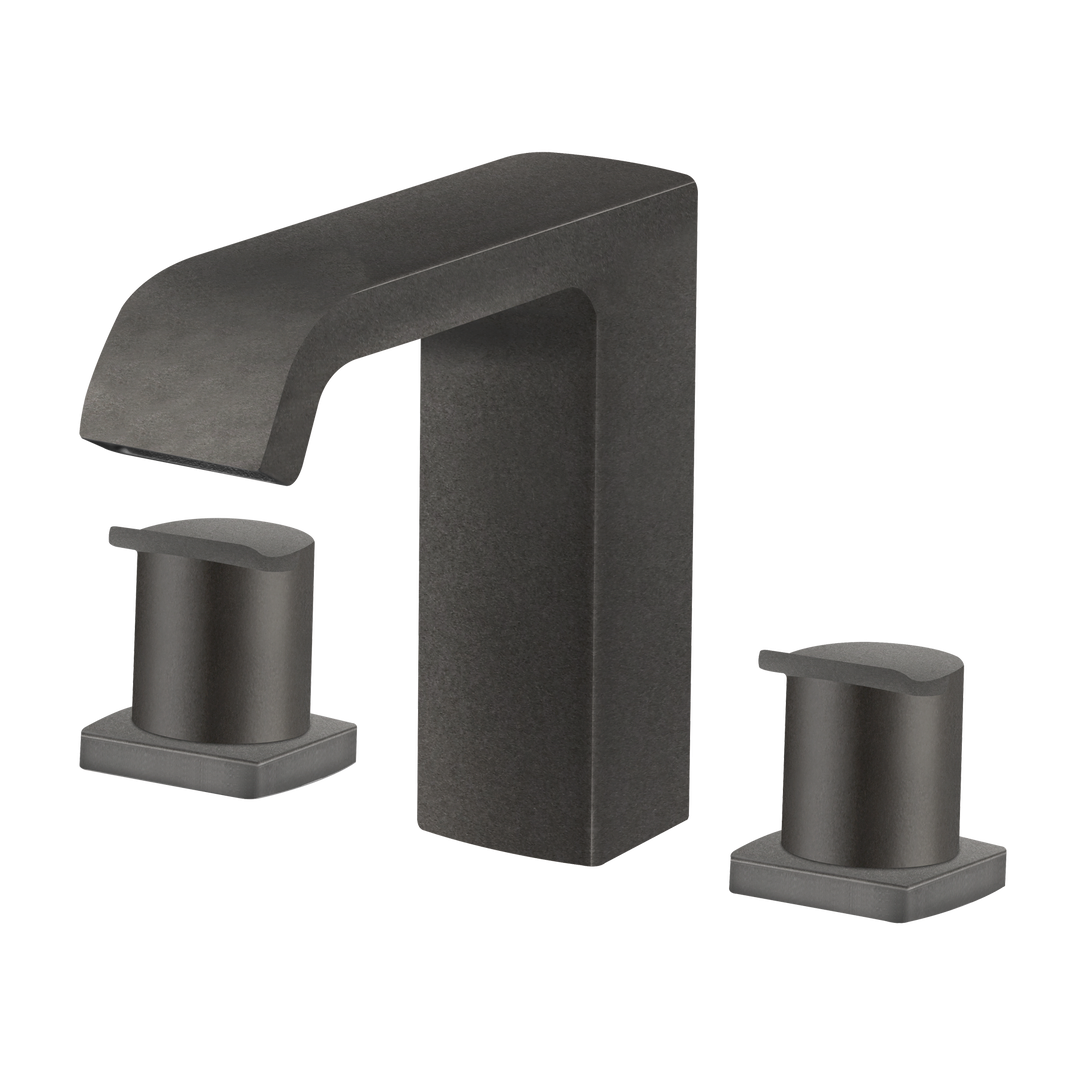

alpha-style_600 3-Hole wash basin mixer with push button waste
Product description

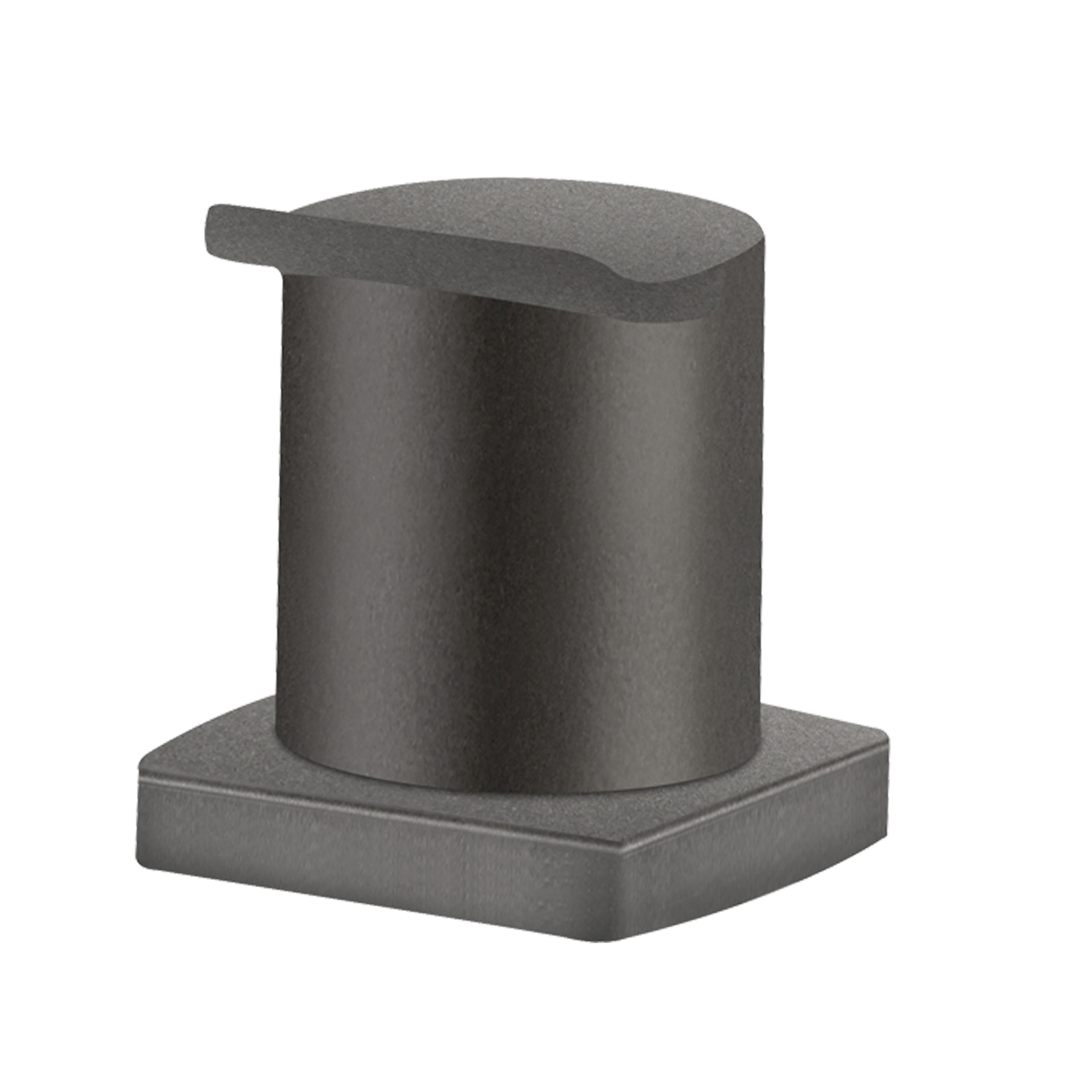

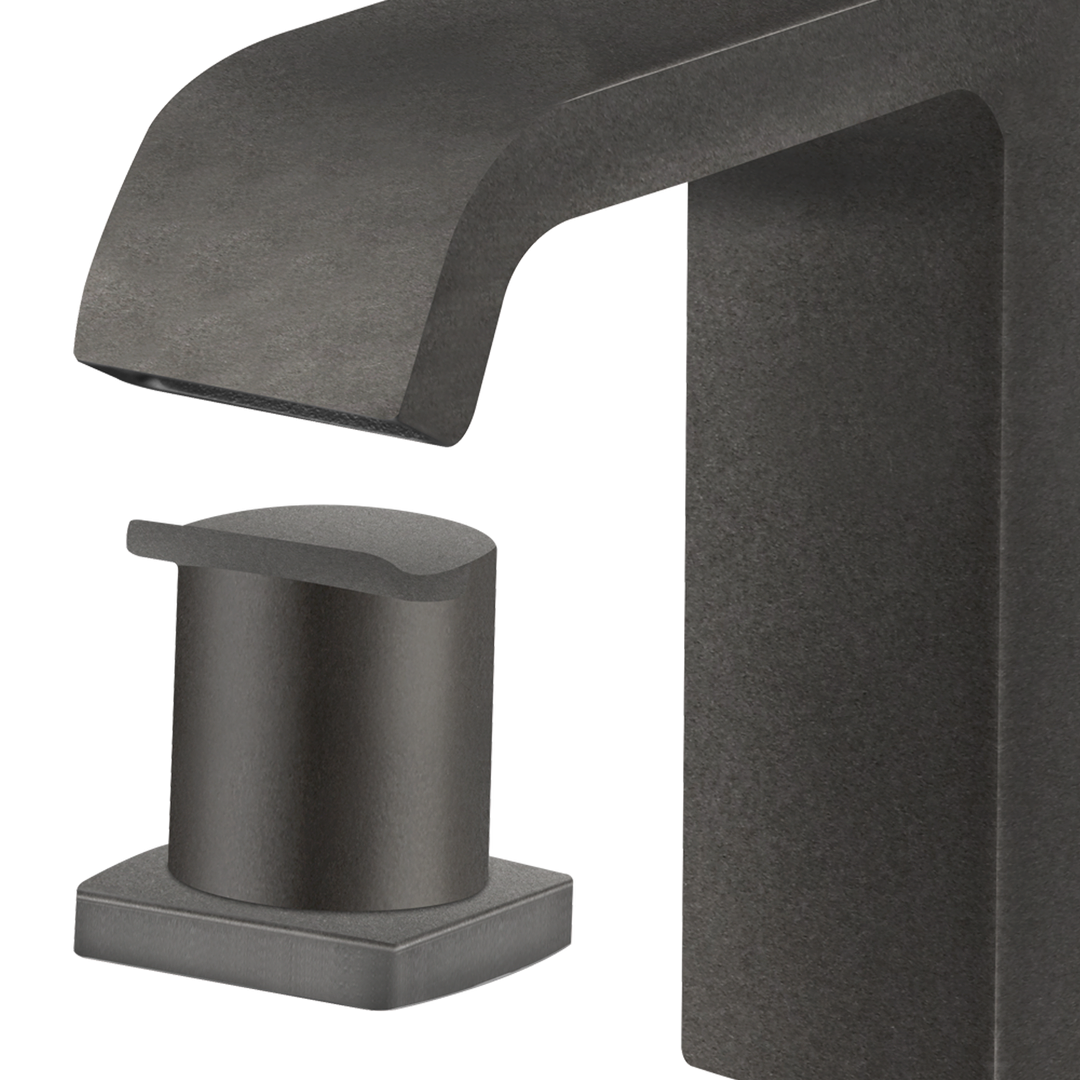

Die minimalistische Formensprache des Armaturenkörpers fasziniert ganz besonders, wenn das Wesen des Wassers sich sensibel in der Erscheinung manifestiert und zur luxuriösen Ikone des elementaren Wechselspiels zwischen Ruhe und fließender Bewegung wird. Formal dem Armaturenkörper angepasst lassen sich die beiden im Griffbereich leicht geschwungenen, kompakten Drehgriffe exzellent bedienen, um manuell die gewünschte Wassertemperatur einzustellen. Durch den querliegenden Strahlregler verlässt das Wasser angepasst an den breiten Auslauf in weichem wasserfallartigem Schwall bedeutungsvoll die Armatur. Durch einen Druck auf die Verschlusskappe, lässt sich die Ablaufgarnitur bequem direkt öffnen und schließen.The Series Design alpha-style_600
The sculptural design language of the design alpha-style_600 range gains an additional dimension of individual expression through its distinctive finishes. Clean surfaces, flowing lines and the dynamic balance between stillness and movement are given greater depth and presence through the finishing process. The result is mixers for modern, high-quality bathrooms that not only serve a functional purpose but also deliberately showcase water through the interplay of materials and surfaces. The design alpha-style_600 collection lends these distinctive mixers an even more exclusive presence in the room.
Related products
Technical information
Product features
- MF55112-00080
- Heinrich Schulte Manufacture
- 3-Hole wash basin mixer
- alpha-style_600
- grey_line
- reach 140 mm
- height to aerator 105 mm
- maximum height 140 mm
- ceramic head part 1/2" 90 degree
- materials in accordance with German Drinking Water Regulations and FEA
- flexible hoses 1/2" DIN DVGW
- aerator flow rate class A
- for single hole mounting
- with push button waste
- with mounting kit
- with shaft screw connection

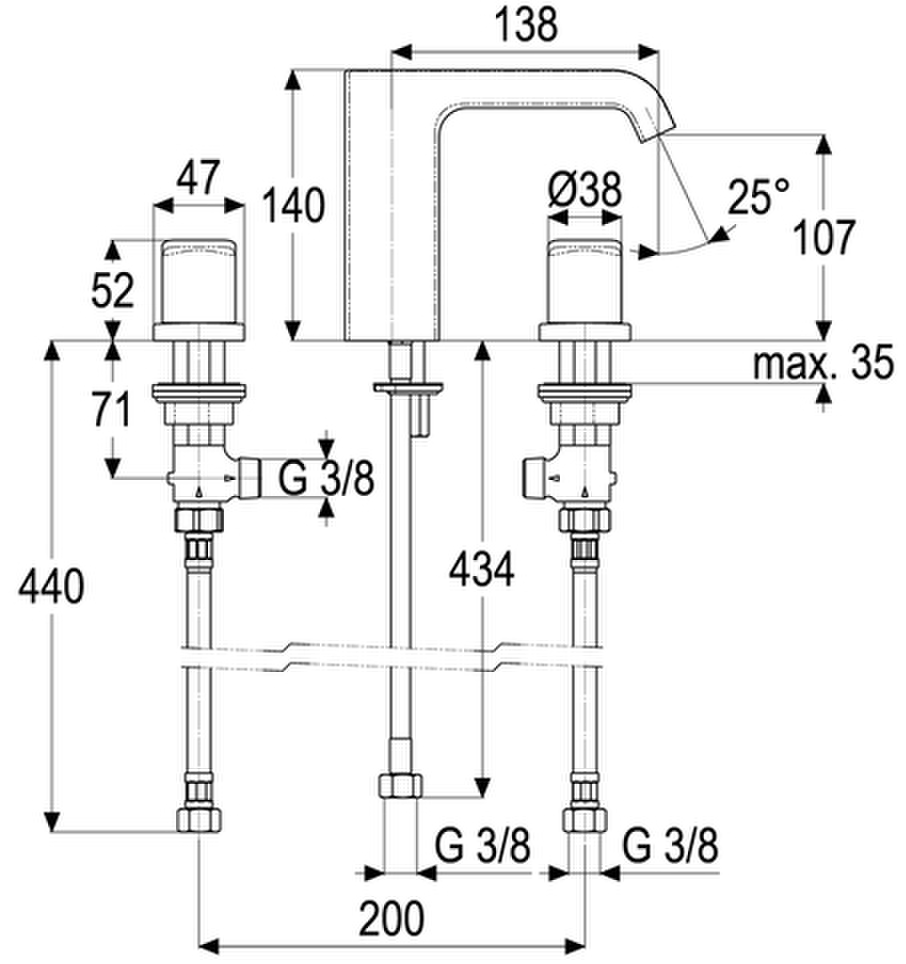

Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- 3-Hole Wash basin mixer
- Mounting kit
- Shaft screw connection kit
- Push button waste
- Flexible hoses
- Rosettes
- Side panels
- Handles
- Assembly instruction
- Care instruction
Spare parts

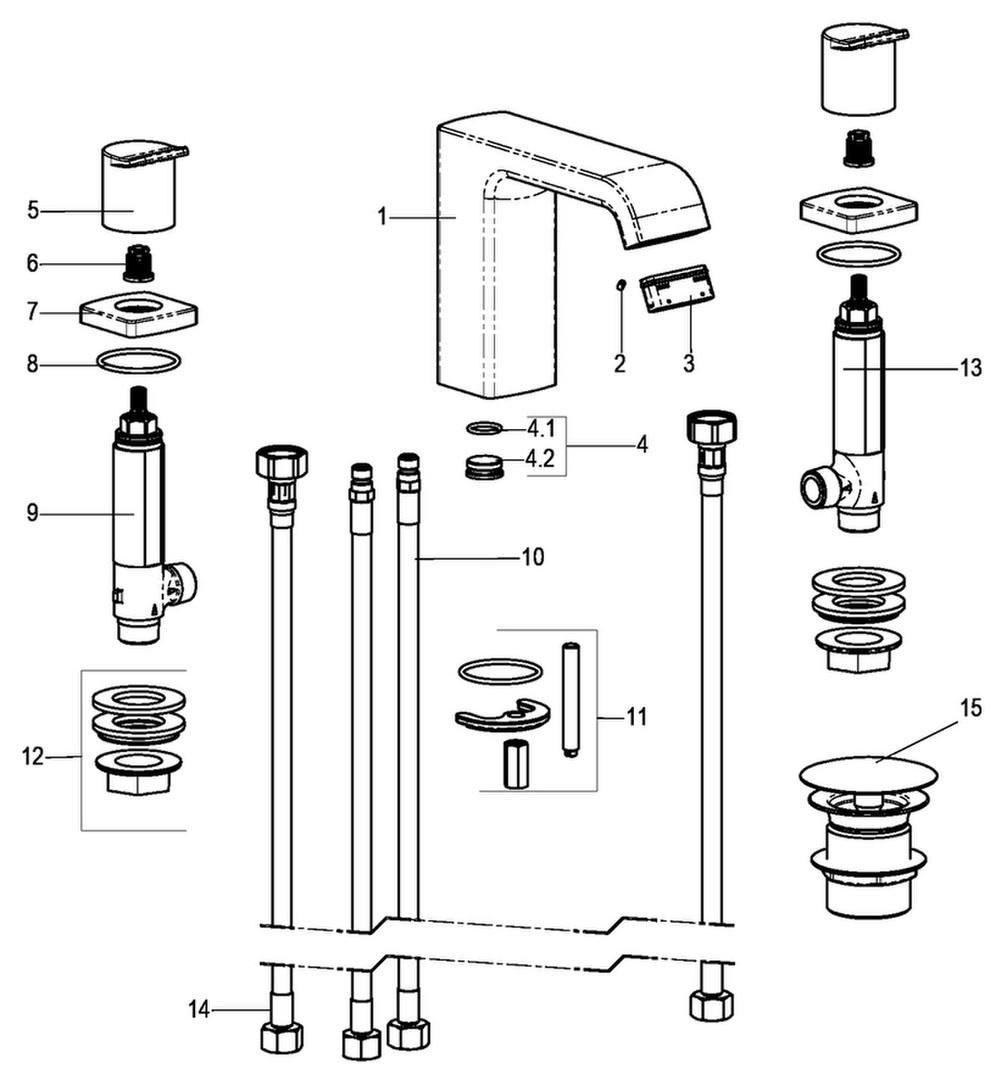

Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 3 | SH RECHTECKSTRAHLREGLER | Z013970-00000 |
| 6 | SH RASTBUCHSE | Z000413-00000 |
| 10 | SH FLEXSCHLAUCH M10 X 1 - 3/8" | Z009141-00000 |
| 11 | SH BEFESTIGUNGSSATZ M8 x 57MM | Z000606-00000 |
| 12 | SH SCHAFTVERSCHRAUBUNG 3/4" | Z000057-00000 |
