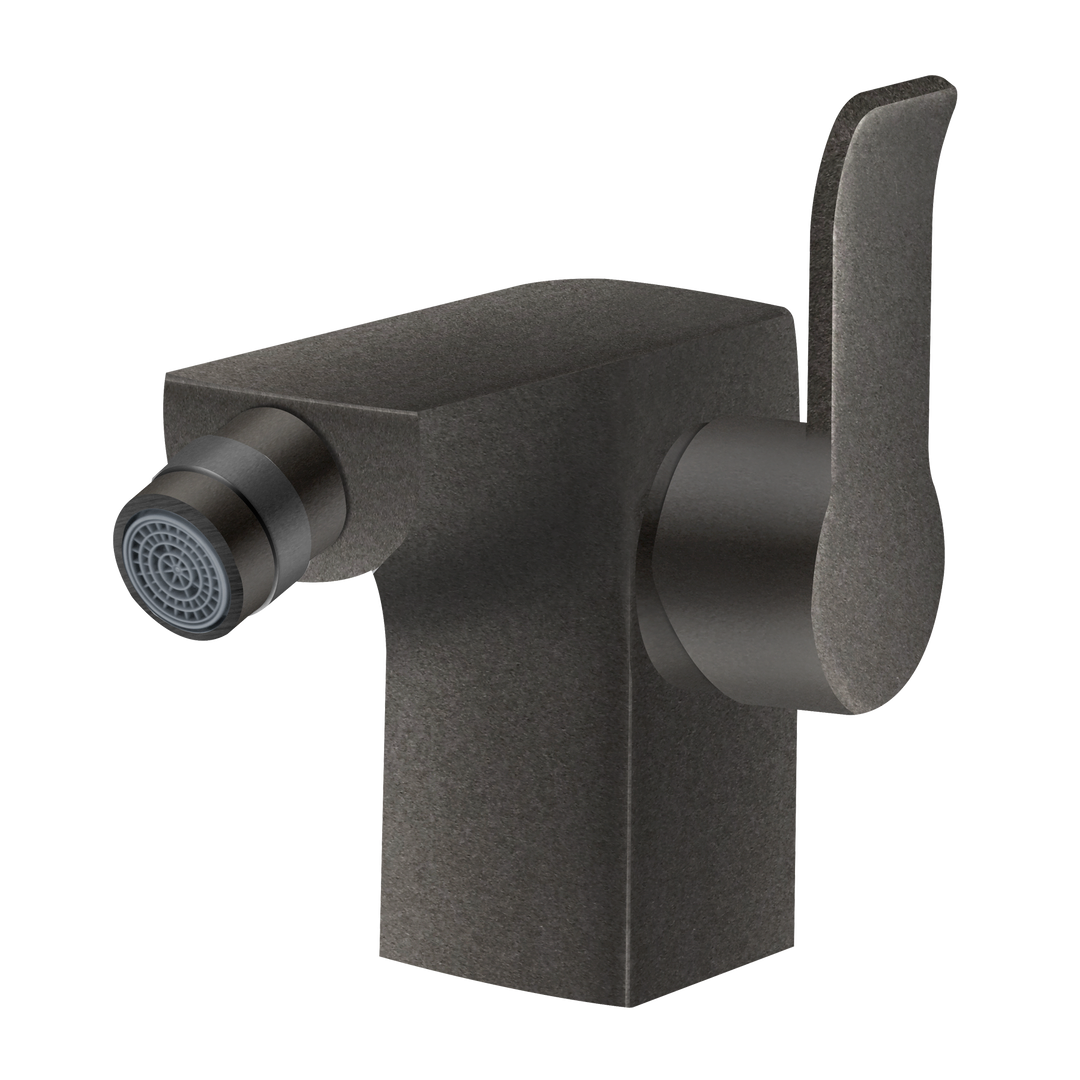

alpha-style_600 Bidet mixer with pop-up waste
Product description
Stilvoll gestaltet, kompakt gebaut und höchsten Anforderungen gerecht, ist diese Armatur ein Schmuckstück im hochwertigen Sanitärbereich. Der im Griffbereich leicht geschwungene Hebel zelebriert Leichtigkeit und Bewegung und schafft ergonomisch durchdacht Freiraum für komfortable Bedienung. Über den eingebauten beweglichen Strahlregler lässt sich der weiche Wasserstrahl individuell den Bedürfnissen angepasst sehr komfortabel in alle Richtungen lenken. Zur Steuerung der Ablaufgarnitur integriert sich im hinteren Bereich dezent die leichtgängige Zugstange, die durch ihre Form auch mit nassen Händen bequem und sicher zu bedienen ist.The Series Design alpha-style_600
The sculptural design language of the design alpha-style_600 range gains an additional dimension of individual expression through its distinctive finishes. Clean surfaces, flowing lines and the dynamic balance between stillness and movement are given greater depth and presence through the finishing process. The result is mixers for modern, high-quality bathrooms that not only serve a functional purpose but also deliberately showcase water through the interplay of materials and surfaces. The design alpha-style_600 collection lends these distinctive mixers an even more exclusive presence in the room.
Related products
Technical information
Product features
- MF55221-00080
- Heinrich Schulte Manufacture
- Bidet mixer
- alpha-style_600
- grey_line
- reach 105 mm
- height to aerator 85 mm
- maximum height 140 mm
- open cartridge 35 mm
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator flow rate class A
- with ball joint
- for bidets
- lateral control
- with pop-up waste 1 1/4"
- with mounting kit
Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Bidet mixer
- Mounting kit
- Pop-up waste with pull rod
- Assembly instruction
- Care instruction
Spare parts
Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH BEDIENUNGSH. ALPHA-STYLE_600 | MF55990-00081 |
| 3 | SH VERSCHRAUBUNG | Z009111-00000 |
| 4 | SH KARTUSCHE FÜR NORMALDRUCK | Z009203-00001 |
| 8 | SH FLEXSCHLAUCH M10 X 1 - 3/8" | Z009143-00000 |
| 11 | SH BEFESTIGUNGSSATZ M8 x 57MM | Z000606-00000 |
