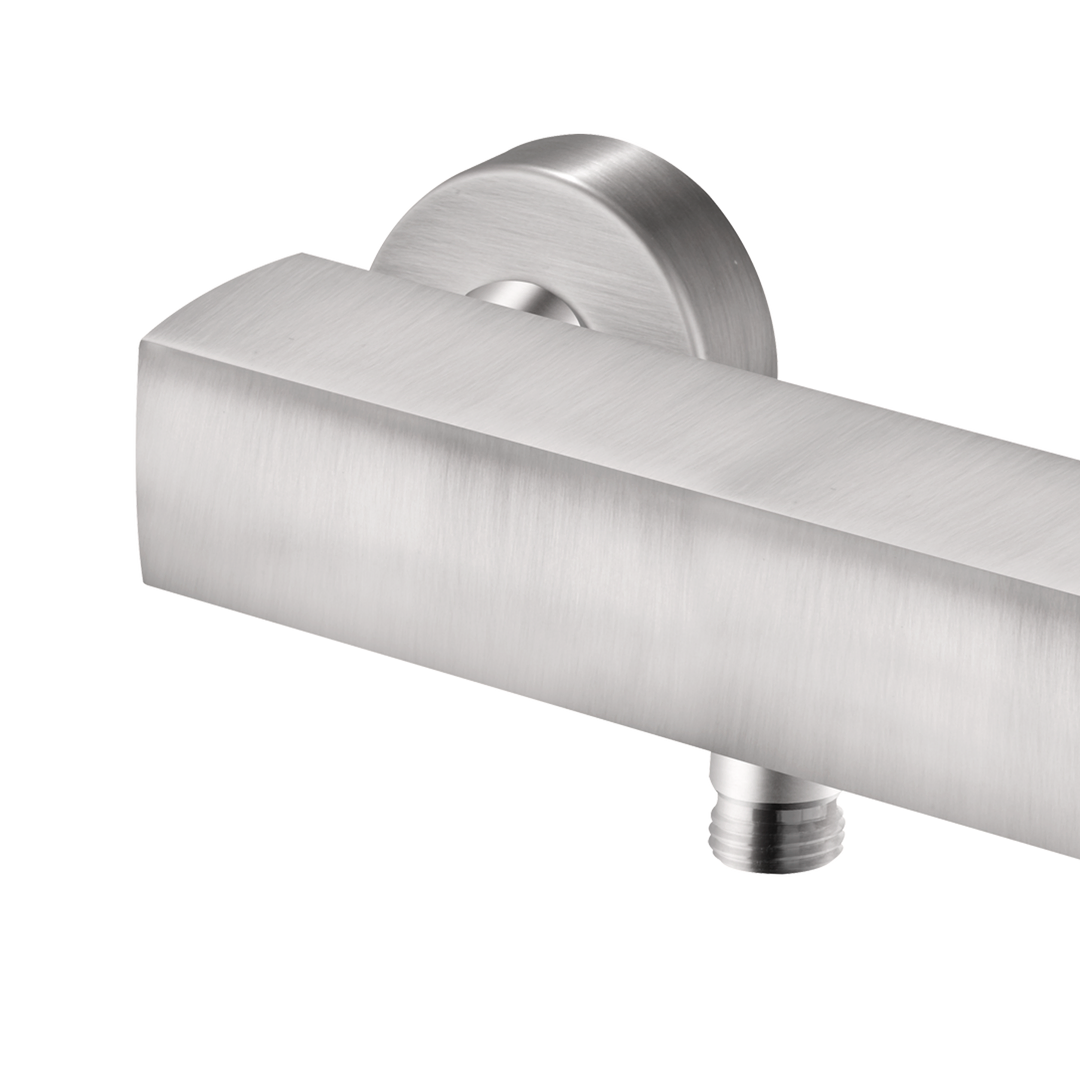

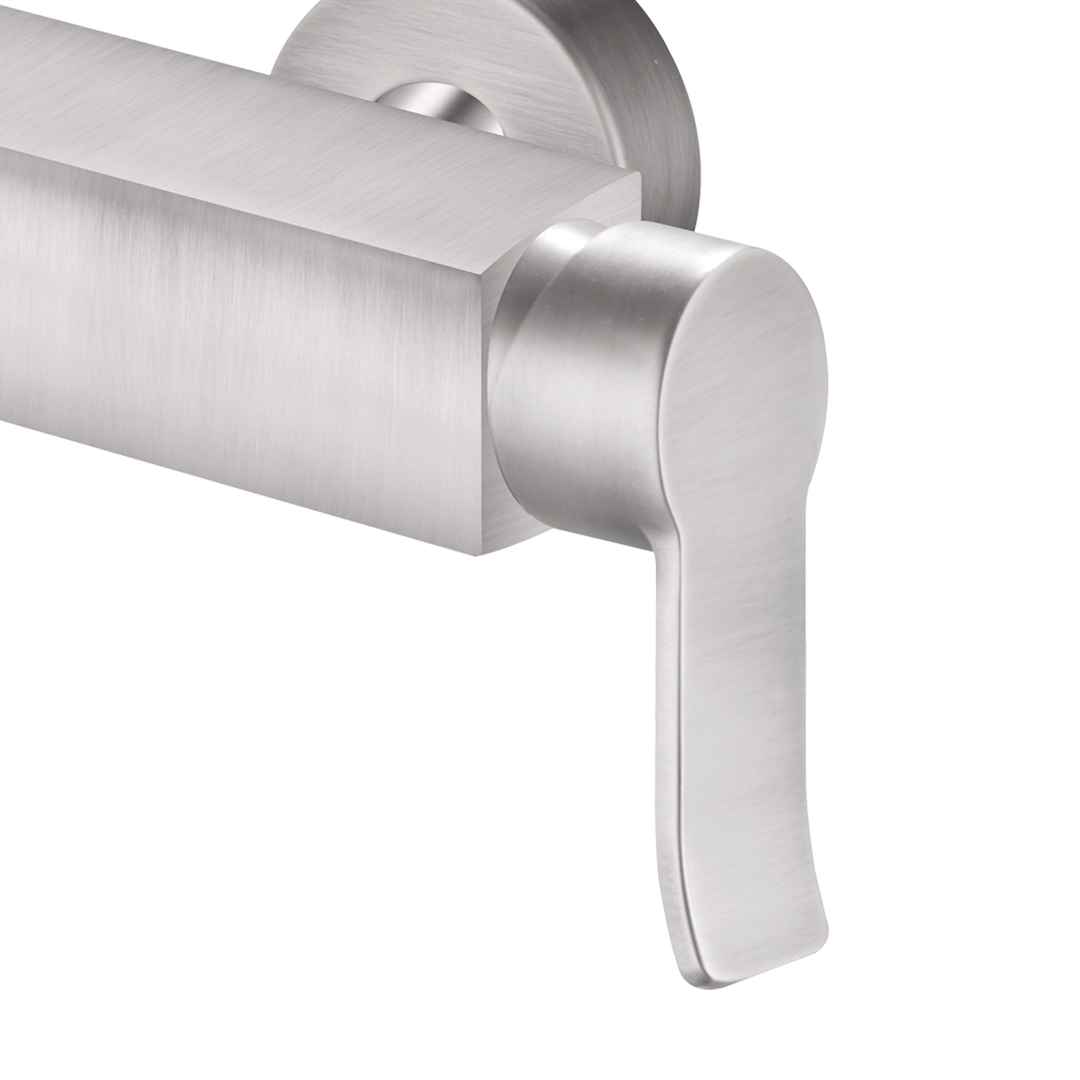

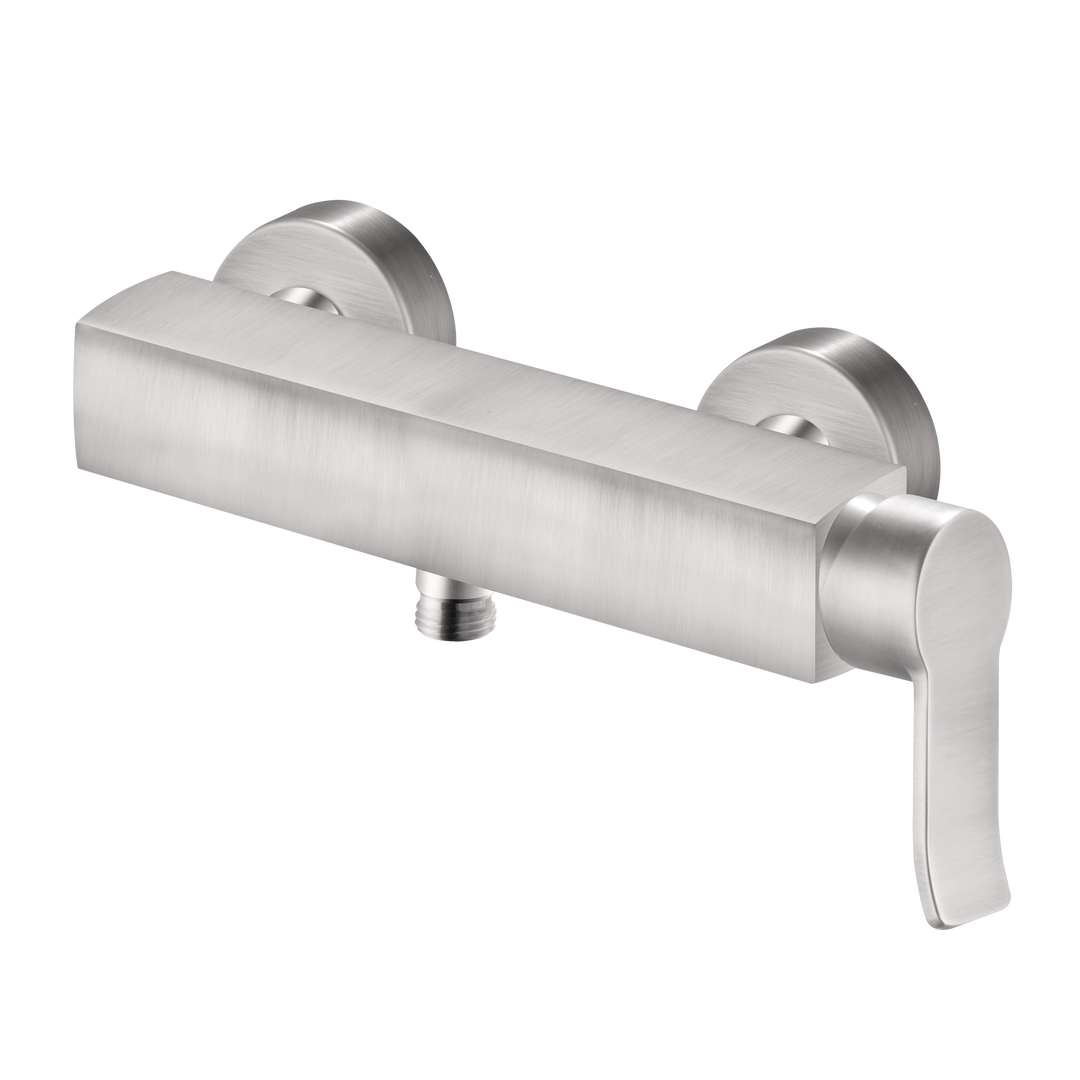

alpha-style_600 Shower mixer without shower set
Product description
Über einen langgestreckten puristisch gestalteten Körper gelangt das Wasser in den Brauseanschluss. Der im Griffbereich leicht geschwungene Hebel zelebriert Leichtigkeit und Bewegung und schafft ergonomisch durchdacht Freiraum für komfortable Bedienung. Leicht der Wand anpassbare Schubrosetten umschließen elegant die Zuleitungen und verleihen der Armatur auch im Anschlussbereich eine sehr hochwertige Erscheinung.The Series Design alpha-style_600
The sculptural design language of the design alpha-style_600 range gains an additional dimension of individual expression through its distinctive finishes. Clean surfaces, flowing lines and the dynamic balance between stillness and movement are given greater depth and presence through the finishing process. The result is mixers for modern, high-quality bathrooms that not only serve a functional purpose but also deliberately showcase water through the interplay of materials and surfaces. The design alpha-style_600 collection lends these distinctive mixers an even more exclusive presence in the room.
Related products
Technical information
Product features
- MF55602-00140
- Heinrich Schulte Manufacture
- Shower mixer
- alpha-style_600
- steel_line
- maximum width 265 mm
- centre distance 135 - 165 mm
- S-connectors 1/2"
- outlet to shower 1/2"
- cartridge 35 mm
- with hot water limiter
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- for wall mounting
- protected against backflow
- with covered S-connections
- suitable for instantaneous water heaters
- without shower set
Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Shower mixer
- Rosettes
- S-connectors
- Assembly instruction
Spare parts
Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH BEDIENUNGSH. ALPHA-STYLE_600 | MF55990-00140 |
| 3 | SH VERSCHRAUBUNG | Z009111-00000 |
| 4 | SH KARTUSCHE FÜR NORMALDRUCK | Z009200-00000 |
| 9 | SH ANSCHLUSSNIPPEL MIT O-RING | Z000147-00000 |
