alpha_100 Wash basin mixer high low pressure with pop-up waste
Product description
alpha_100 ist eine kleine und kompakte Armaturenserie, die mit sanfter und geschwungener Linienführung viele Möglichkeiten bietet zur stilgerechten Integration in kleinere Sanitärräume. Ihr leicht verspielter Charakter erzeugt eine angenehme Wirkung auf ihr Umfeld. Die Bedienung ist trotz kompakter Bauform in allen Produkten dieser Serie technisch und ergonomisch bis ins Detail ausgereift.The Series alpha_100
With its compact design and gentle lines, the alpha_100 blends particularly stylishly into smaller bathroom spaces. Its design language appears light, friendly and subtly playful, without losing any of its clarity, and lends the surroundings a pleasant, balanced atmosphere. Where space needs to be used sensibly and design precisely tailored, the alpha_100 opens up a wide range of possibilities for harmonious integration. The range has been thought through down to the last detail, both technically and ergonomically, thus combining user-friendly operation suitable for everyday use with the reliable quality of heinrichschulte.
Technical information
Product features
- Z058165-00010
- Heinrich Schulte
- Wash basin mixer high low pressure
- alpha_100
- chrome
- reach 115 mm
- height to aerator 90 mm
- maximum height 140 mm
- cartridge 35 mm
- with hot water and flow rate limiter
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator low pressure
- single hole mounted
- for unpressurized water heaters
- with pop-up waste 1 1/4"
- with mounting kit
- with flow rate limiter 5 l/min

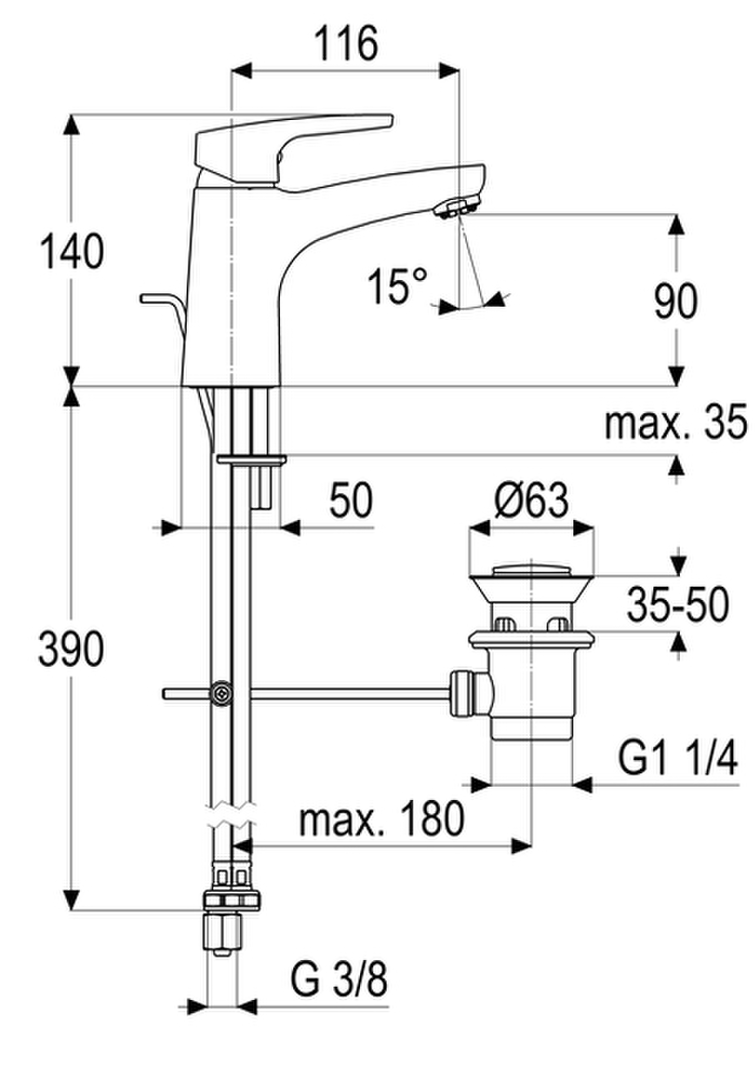

Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Wash basin mixer
- Mounting kit
- Pop-up waste with pull rod
- Flow rate limiter
- Assembly instruction
- Care instruction
Spare parts

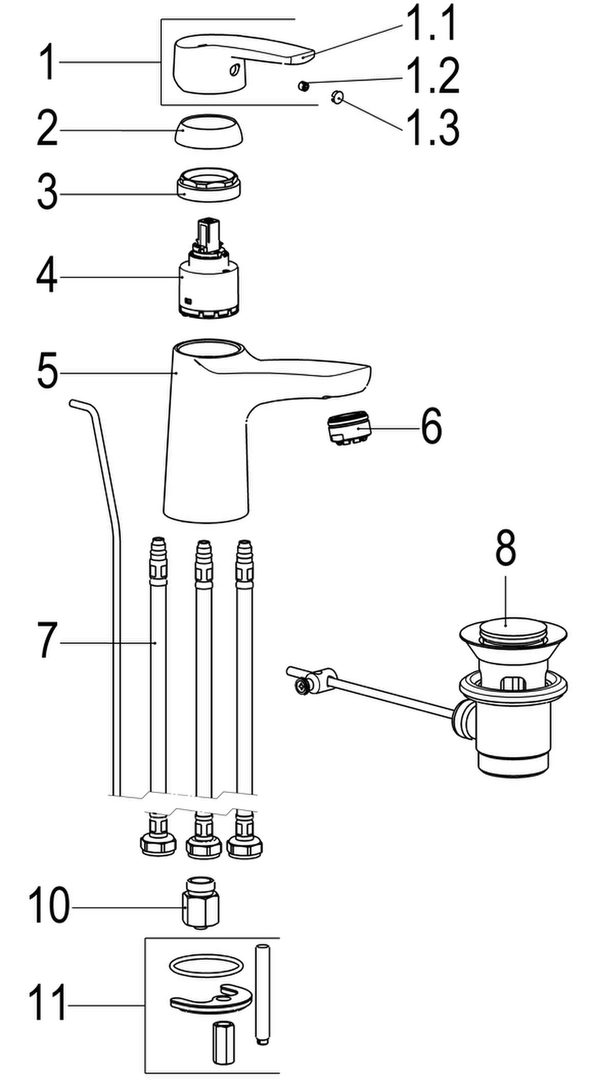

Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH BEDIENUNGSHEBEL ALPHA_100 | Z056990-00010 |
| 2 | SH ROSETTE M37 X 1,5 / D:39,7X12 | Z009110-00010 |
| 4 | SH KARTUSCHE FÜR HOCH-/NIEDERDUCK | Z000074-00000 |
| 6 | SH STRAHLREGLER ND | Z013924-00010 |
| 7 | SH ZUGSTANGE MIT KNOPF | Z009187-00010 |
| 8 | SH ABLAUFGARNITUR KUNSTSTOFF | Z001129-00010 |
| 9 | SH FLEXSCHLAUCH M8 X 1 - 3/8" | Z009075-00000 |
| 10 | SH DURCHFLUSSBEGRENZER 3/8" | Z019389-00000 |
| 11 | SH BEFESTIGUNGSSATZ M8 x 57MM | Z000606-00000 |
