The Series alpha_300
Formal clarity and striking details lend the alpha_300 by heinrichschulte its unmistakable character. The deliberately minimalist basic design gains expressiveness through precisely placed accents and brings a calm, structured effect to modern bathrooms. It is precisely this understated style, combined with an eye for detail, that gives the range such a strong character. The alpha_300 embodies a discreet yet distinctive design that complements your space day in, day out, without ever losing its relevance.
Related products
Technical information
Product features
- Z059802-00010
- Heinrich Schulte
- Kitchen mixer
- alpha_300
- chrome
- reach 205 mm
- height to aerator 150 mm
- maximum height 185 mm
- cartridge 35 mm
- with hot water limiter
- spout swivelling
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator flow rate class C
- anti lime
- single hole mounted
- with quick fastening

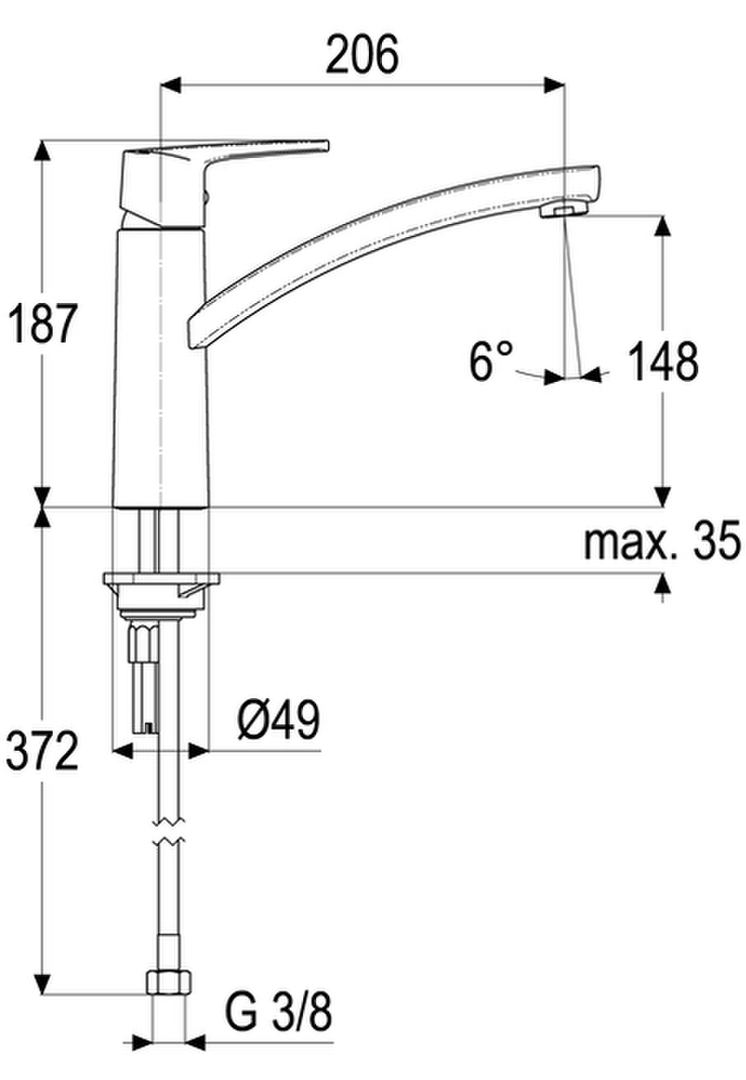

Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Kitchen mixer
- Mounting kit
- Assembly instruction
- Certificate
Spare parts

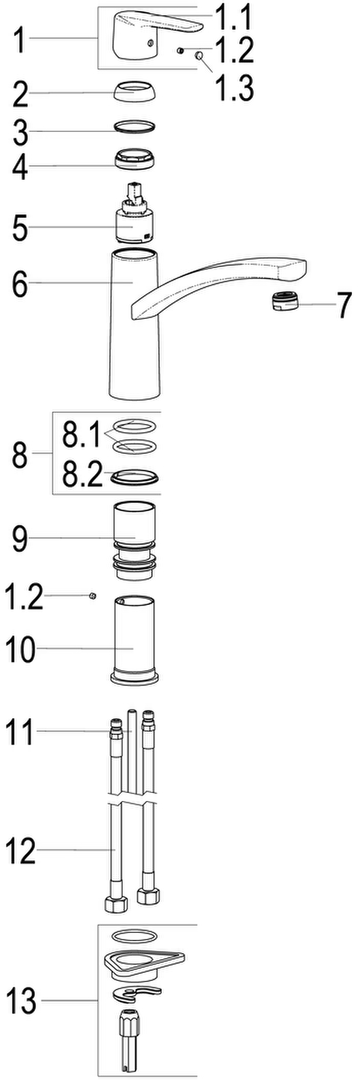

Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH BEDIENUNGSHEBEL ALPHA_300 | Z059990-00010 |
| 2 | SH ROSETTE M37 X 1,5 / D:39,7X12 | Z009110-00010 |
| 4 | SH VERSCHRAUBUNG | Z009111-00000 |
| 5 | SH KARTUSCHE FÜR NORMALDRUCK | Z009200-00000 |
| 7 | SH LUFTSPRUDLER SLC M. GUMMILIPPE | Z013918-00010 |
| 8 | SH DICHTUNGSSATZ FÜR SERIE 61 | Z001812-00000 |
| 11 | SH GEWINDESTANGE M8 X 130 | Z009072-00000 |
| 12 | SH FLEXSCHLAUCH M10 X 1 - 3/8" | Z009141-00000 |
| 13 | SH SCHNELLVERSCHRAUBUNG KOMPLETT | Z009295-00000 |
