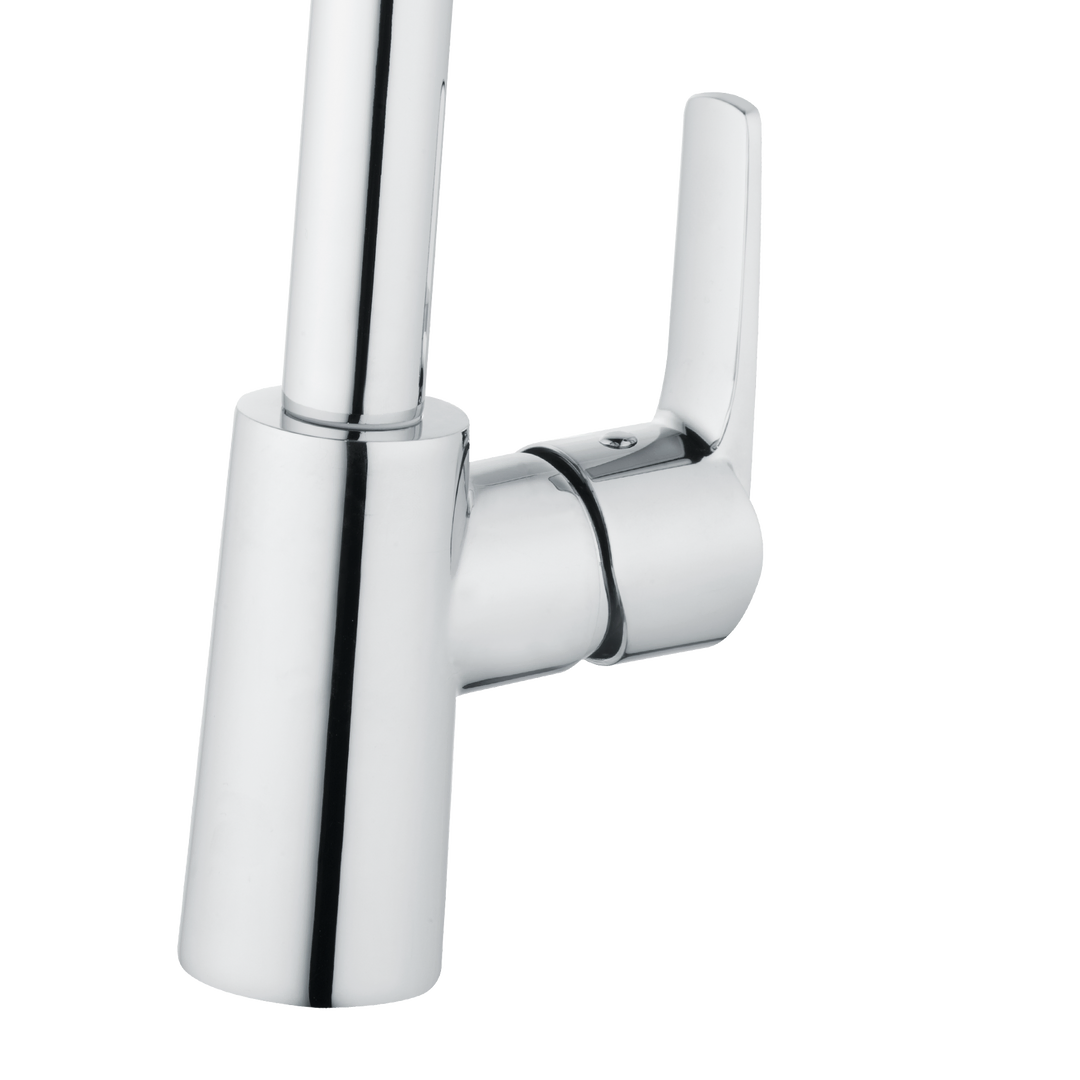

alpha_300 Kitchen mixer with pull-out spray
The Series alpha_300
Formal clarity and striking details lend the alpha_300 by heinrichschulte its unmistakable character. The deliberately minimalist basic design gains expressiveness through precisely placed accents and brings a calm, structured effect to modern bathrooms. It is precisely this understated style, combined with an eye for detail, that gives the range such a strong character. The alpha_300 embodies a discreet yet distinctive design that complements your space day in, day out, without ever losing its relevance.
Technical information
Product features
- Z059703-00010
- Heinrich Schulte
- Kitchen mixer
- alpha_300
- chrome
- reach 215 mm
- height to aerator 285 mm
- maximum height 320 mm
- cartridge 35 mm
- with hot water limiter
- spout swivelling and extractable
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator flow rate class A
- single hole mounted
- with metal shower hose
- with shaft screw connection

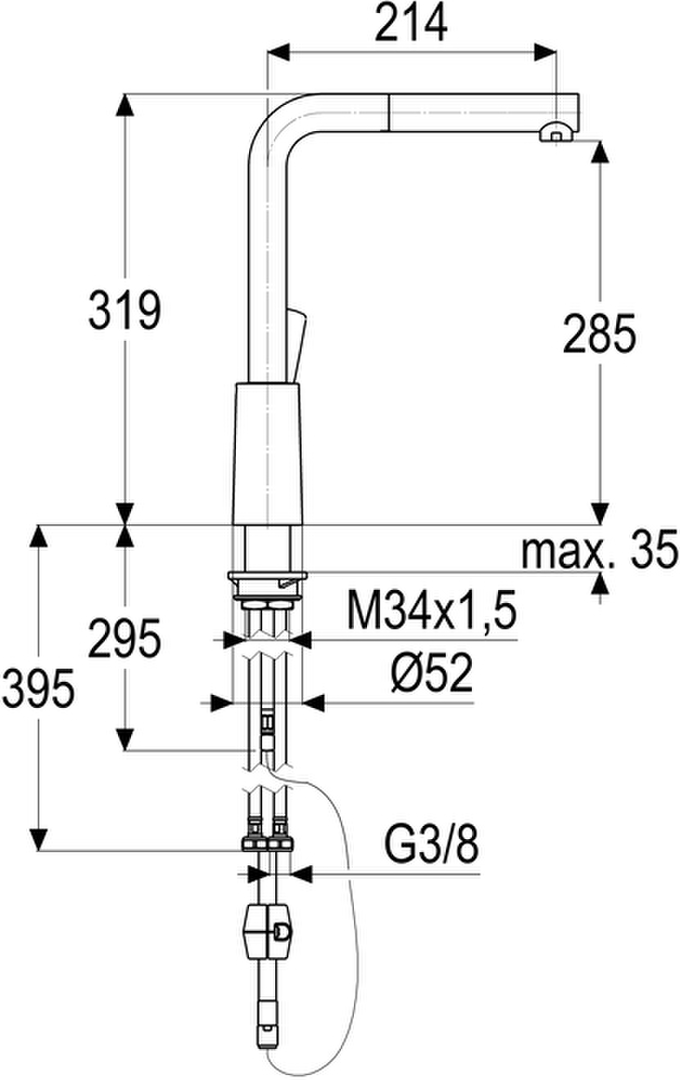

Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Kitchen mixer
- Shaft screw connection kit
- Assembly instruction
Spare parts

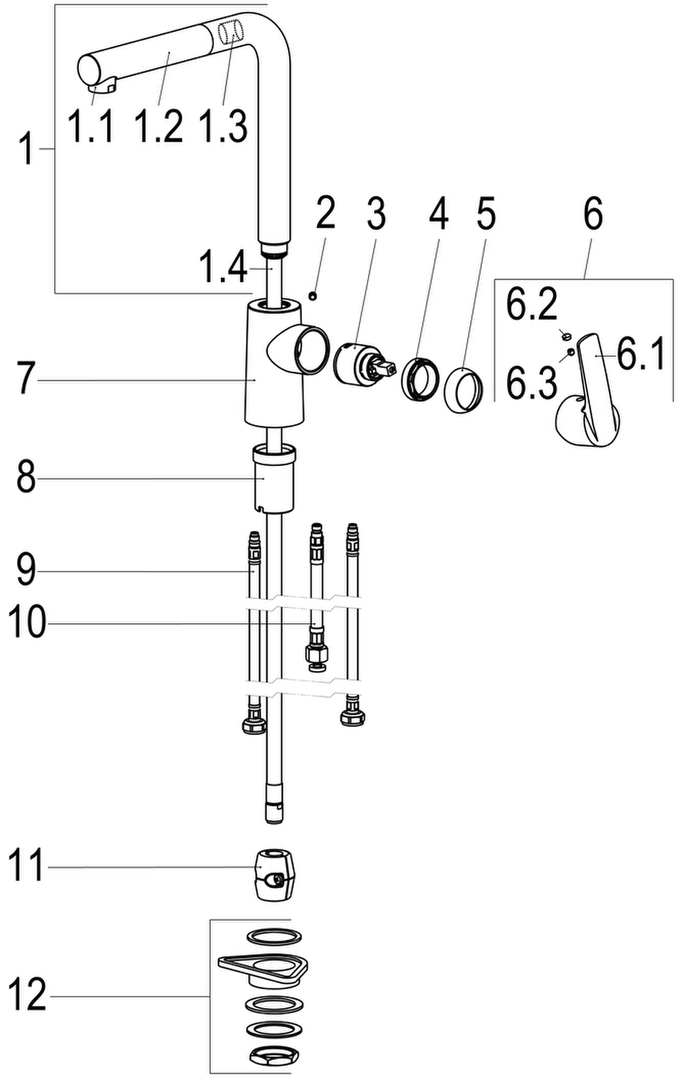

Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH LUFTSPRUDLEREINSATZ KL. A | Z013976-00000 |
| 1 | SH RÜCKFLUSSVERHINDERER PATRONE | Z028901-00001 |
| 1 | SH BRAUSESCHLAUCH KST. | Z059703-73000 |
| 1 | SH AUSL. F. KÜCHENARM. ALPHA_300 | Z059703-11010 |
| 3 | SH KARTUSCHE FÜR NORMALDRUCK | Z009200-00000 |
| 4 | SH VERSCHRAUBUNG | Z009111-00000 |
| 5 | SH ROSETTE M37 X 1,5 / D:39,7X12 | Z009110-00010 |
| 6 | SH BEDIENUNGSHEBEL ALPHA_300 | Z059990-00010 |
| 9 | SH FLEXSCHLAUCH M8 X 1 - 3/8" | Z009075-00000 |
| 10 | SH FLEXSCHLAUCH M8 X 1 - M15 X 1 | Z009074-00000 |
| 11 | SH BLEIGEWICHT | Z000287-00000 |
| 12 | SH SCHAFTVERSCHRAUBUNG M34 X 1,5 | Z009196-00000 |
