The Series alpha_300
Formal clarity and striking details lend the alpha_300 by heinrichschulte its unmistakable character. The deliberately minimalist basic design gains expressiveness through precisely placed accents and brings a calm, structured effect to modern bathrooms. It is precisely this understated style, combined with an eye for detail, that gives the range such a strong character. The alpha_300 embodies a discreet yet distinctive design that complements your space day in, day out, without ever losing its relevance.
Technical information
Product features
- Z059702-00280
- Heinrich Schulte
- Kitchen mixer
- alpha_300
- matt black
- reach 200 mm
- height to aerator 240 mm
- maximum height 340 mm
- cartridge 35 mm
- with hot water limiter
- spout swivelling
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator 7 l/min
- Cache, anti lime
- DIN DVGW
- single hole mounted
- lateral control
- with quick fastening
Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Kitchen mixer
- Mounting kit
- Cast spout
- Assembly instruction
- Certificate
Spare parts

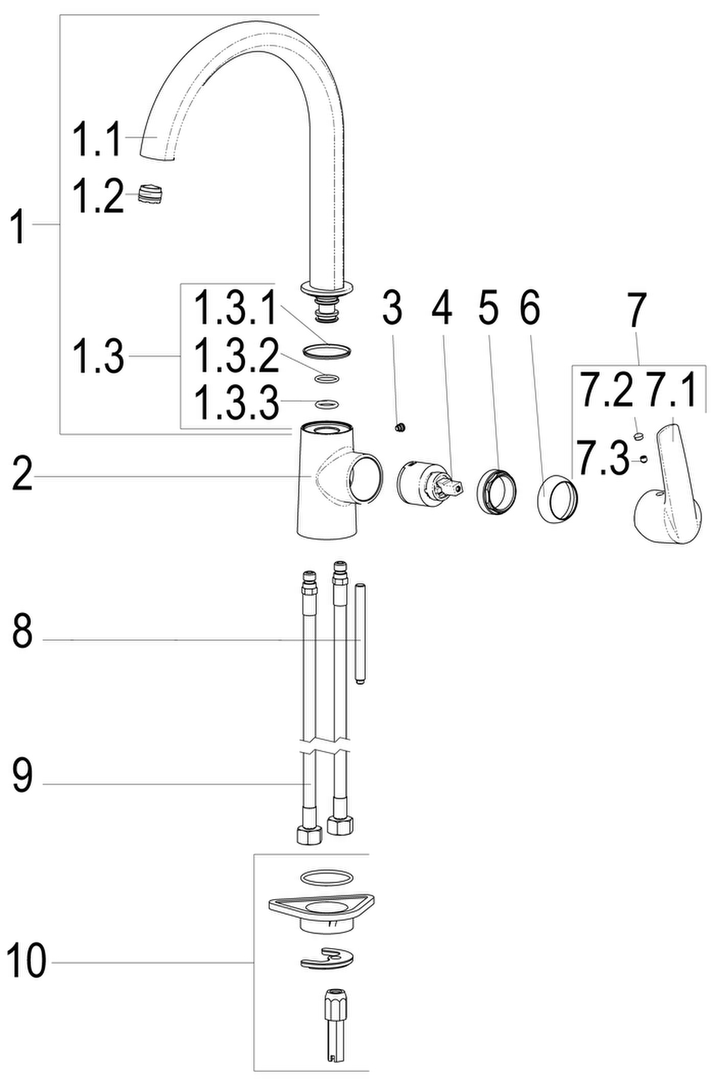

Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH AUSLAUF FÜR EHM KÜCHENARMATUR | Z013075-00280 |
| 3 | SH ANSCHLAGSCHRAUBE | Z000235-00000 |
| 4 | SH KARTUSCHE FÜR NORMALDRUCK | Z009200-00000 |
| 5 | SH VERSCHRAUBUNG | Z009111-00000 |
| 6 | SH ROSETTE M37 X 1,5 / D:39,7X12 | Z009110-00280 |
| 7 | SH BEDIENUNGSHEBEL ALPHA_300 | Z059990-00280 |
| 8 | SH GEWINDESTANGE M8 X 130 | Z009072-00000 |
| 9 | SH FLEXSCHLAUCH M10 X 1 - 3/8" | Z009141-00000 |
| 10 | SH SCHNELLVERSCHRAUBUNG KOMPLETT | Z009295-00000 |
