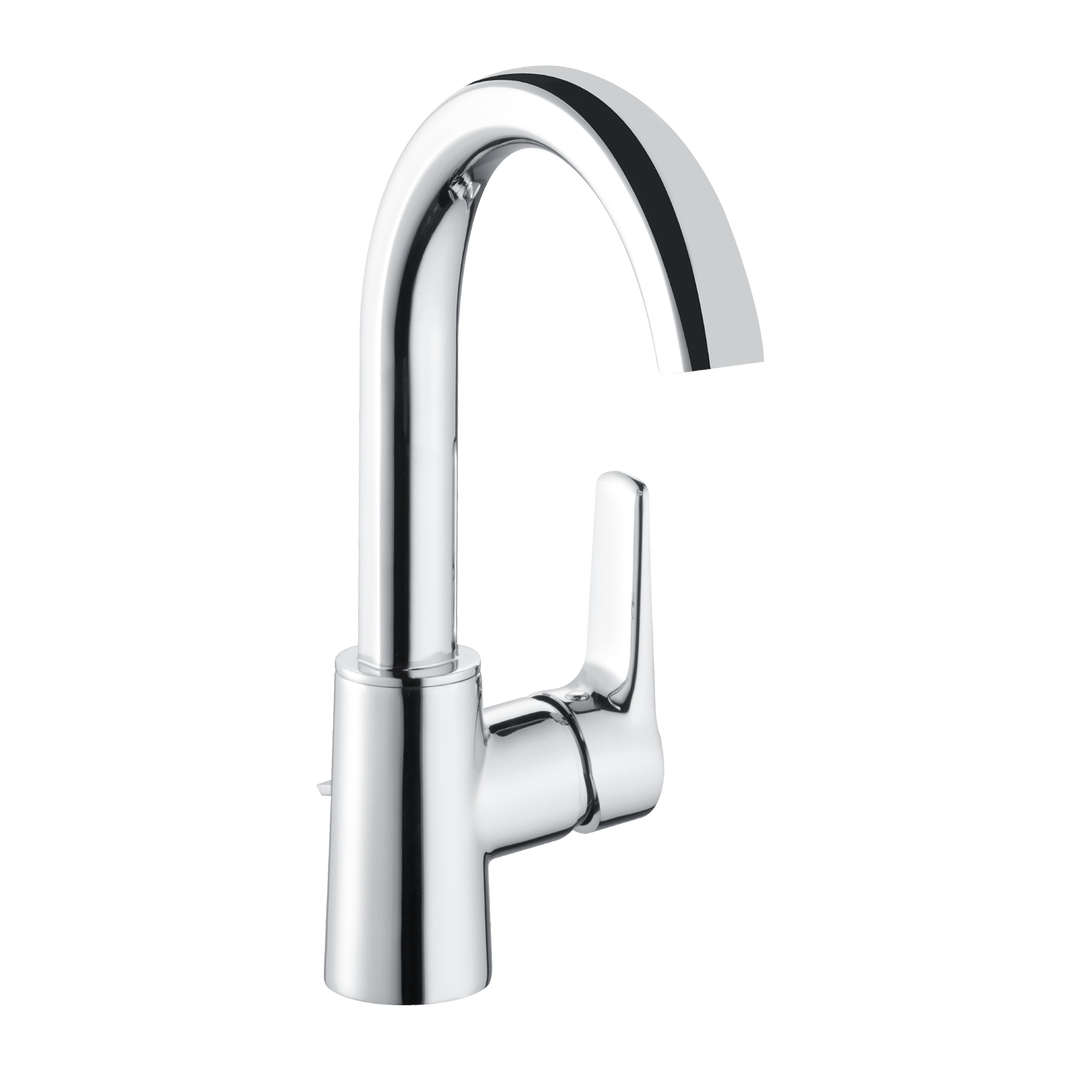

alpha_300 Wash basin mixer without pop-up waste
Product description
Der zylindrische Grundkörper der seitengesteuerten Armatur verjüngt sich sanft nach oben und bildet damit eine stilvolle Basis für den sich in weitem Bogen erhebenden Schwenkauslauf. Die brillante Chromoberfläche unterstreicht wirkungsvoll die Schönheit dieser Armatur. Leicht beweglich und ergonomisch sensibel abgestimmt, schließt der im Übergang markant gestaltete Hebel die Armatur formvollendet ab. Der unsichtbar eingesetzte Caché-Strahlregler hilft Wasser zu sparen und schützt die Armatur durch seine eigens dafür entwickelte Silikon-Lippe vor Kalkablagerungen.The Series alpha_300
Formal clarity and striking details lend the alpha_300 by heinrichschulte its unmistakable character. The deliberately minimalist basic design gains expressiveness through precisely placed accents and brings a calm, structured effect to modern bathrooms. It is precisely this understated style, combined with an eye for detail, that gives the range such a strong character. The alpha_300 embodies a discreet yet distinctive design that complements your space day in, day out, without ever losing its relevance.
Technical information
Product features
- Z059125-00010
- Heinrich Schulte
- Wash basin mixer
- alpha_300
- chrome
- reach 150 mm
- height to aerator 205 mm
- maximum height 275 mm
- cartridge 35 mm
- with hot water limiter
- spout swivelling
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator 7 l/min
- Cache, anti lime
- DIN DVGW
- single hole mounted
- lateral control
- without pop-up waste
- with mounting kit
Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Wash basin mixer
- Mounting kit
- Cast spout
- Assembly instruction
- Care instruction
- Certificate
Spare parts
Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH AUSLAUF FÜR EHM WASCHTISCHARM. | Z013077-00010 |
| 3 | SH ANSCHLAGSCHRAUBE | Z000235-00000 |
| 4 | SH KARTUSCHE FÜR NORMALDRUCK | Z009200-00000 |
| 5 | SH VERSCHRAUBUNG | Z009111-00000 |
| 6 | SH ROSETTE M37 X 1,5 / D:39,7X12 | Z009110-00010 |
| 7 | SH BEDIENUNGSHEBEL ALPHA_300 | Z059990-00010 |
| 8 | SH FLEXSCHLAUCH M10 X 1 - 3/8" | Z009141-00000 |
| 9 | SH GEWINDESTANGE M8 X 130 | Z009072-00000 |
| 10 | SH SCHNELLVERSCHRAUBUNG KOMPLETT | Z009295-00000 |
