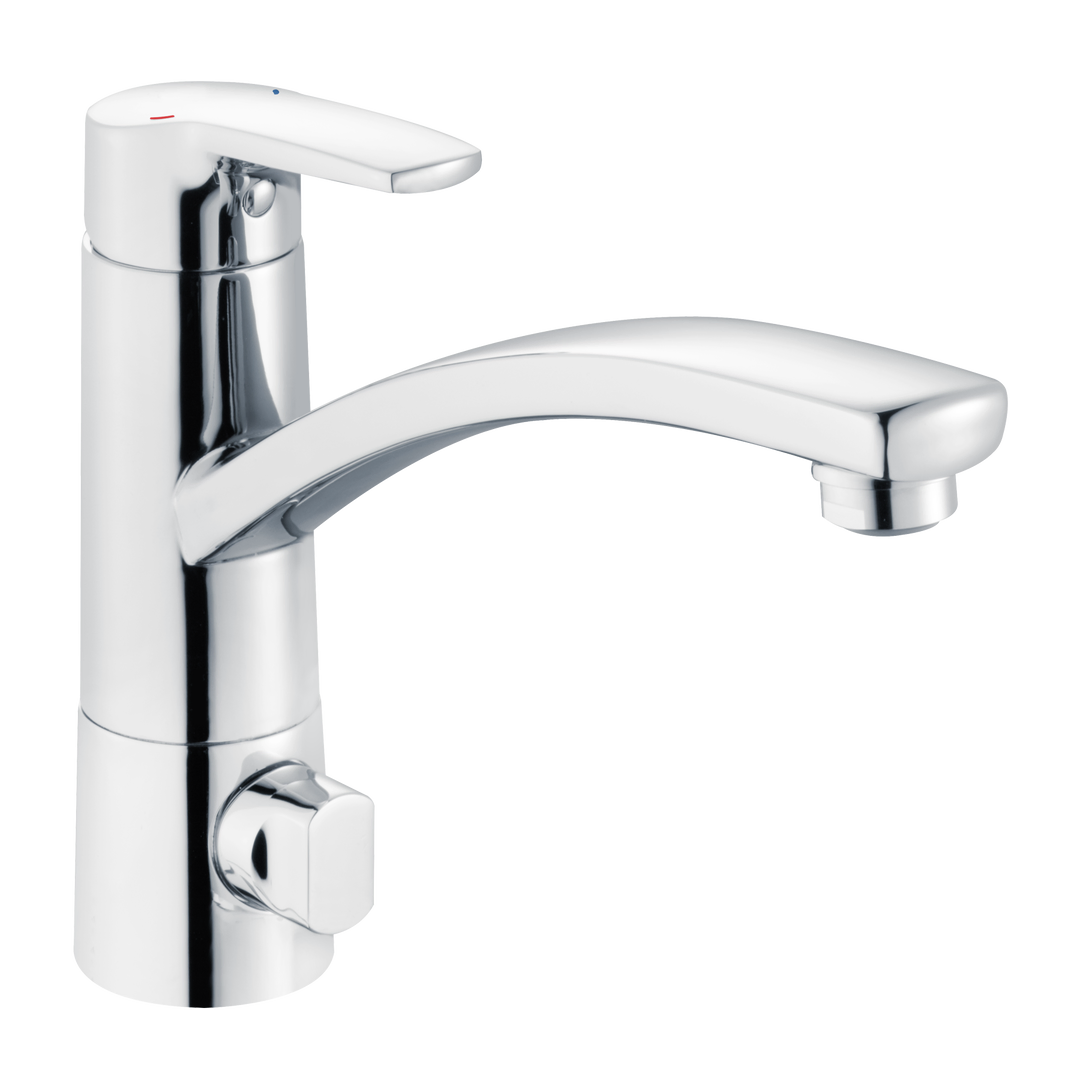

alpha_350 Kitchen mixer with appliance connection
The Series alpha_350
With its delicately sculpted contours and gently curved forms, the alpha_350 elegantly complements both organically curved and geometrically stylised interior designs. The range strikes a balance between softness and clarity, blending harmoniously into bathroom designs whilst retaining its own distinctive and subtly accentuated character. The alpha_350 combines modern, understated design with a construction designed for reliable use and a lasting presence in everyday life.
Related products
Technical information
Product features
- Z056807-00010
- Heinrich Schulte
- Kitchen mixer
- alpha_350
- chrome
- reach 205 mm
- height to aerator 150 mm
- maximum height 175 mm
- cartridge 35 mm
- with hot water limiter
- spout swivelling
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator flow rate class C
- anti lime
- with appliance connection
- with quick fastening

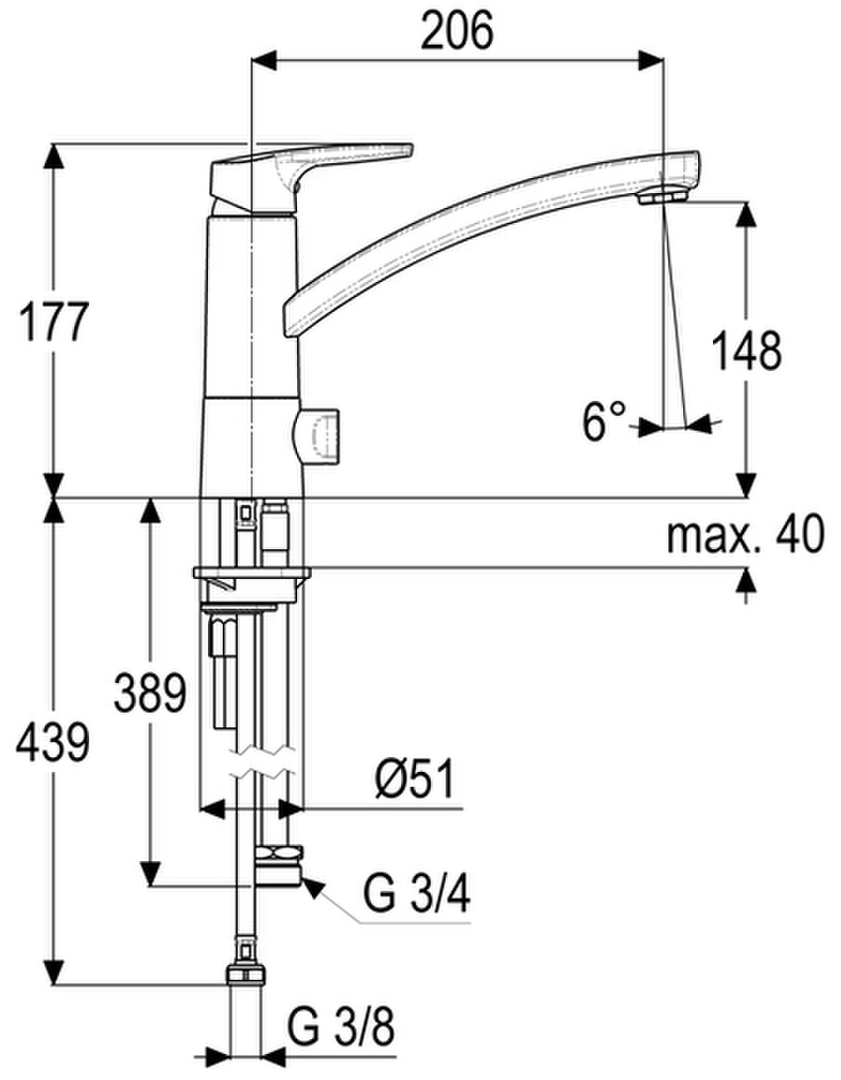

Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Kitchen mixer
- Mounting kit
- Assembly instruction
Spare parts

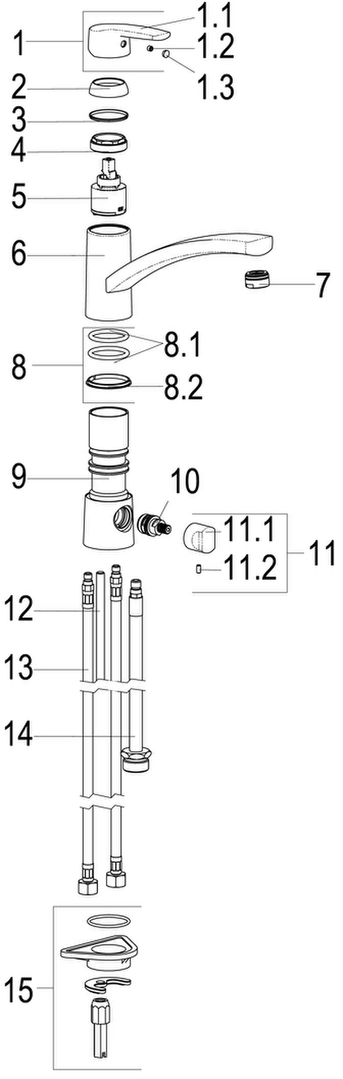

Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH BEDIENUNGSHEBEL ALPHA_100 | Z056990-00010 |
| 2 | SH ROSETTE M37 X 1,5 / D:39,7X12 | Z009110-00010 |
| 4 | SH VERSCHRAUBUNG | Z009111-00000 |
| 5 | SH KARTUSCHE FÜR NORMALDRUCK | Z009200-00000 |
| 7 | SH LUFTSPRUDLER SLC M. GUMMILIPPE | Z013918-00010 |
| 8 | SH DICHTUNGSSATZ FÜR SERIE 61 | Z001812-00000 |
| 10 | SH ABSPERR-OBERTEIL M20 X 1 | Z009064-00000 |
| 12 | SH GEWINDESTANGE M8 X 90 | Z009070-00000 |
| 13 | SH FLEXSCHLAUCH M8 X 1 - 3/8" | Z009075-00000 |
| 14 | SH FLEXSCHLAUCH M10 X 1 - 3/4" | Z009323-00000 |
| 15 | SH SCHNELLVERSCHRAUBUNG KOMPLETT | Z009295-00000 |
