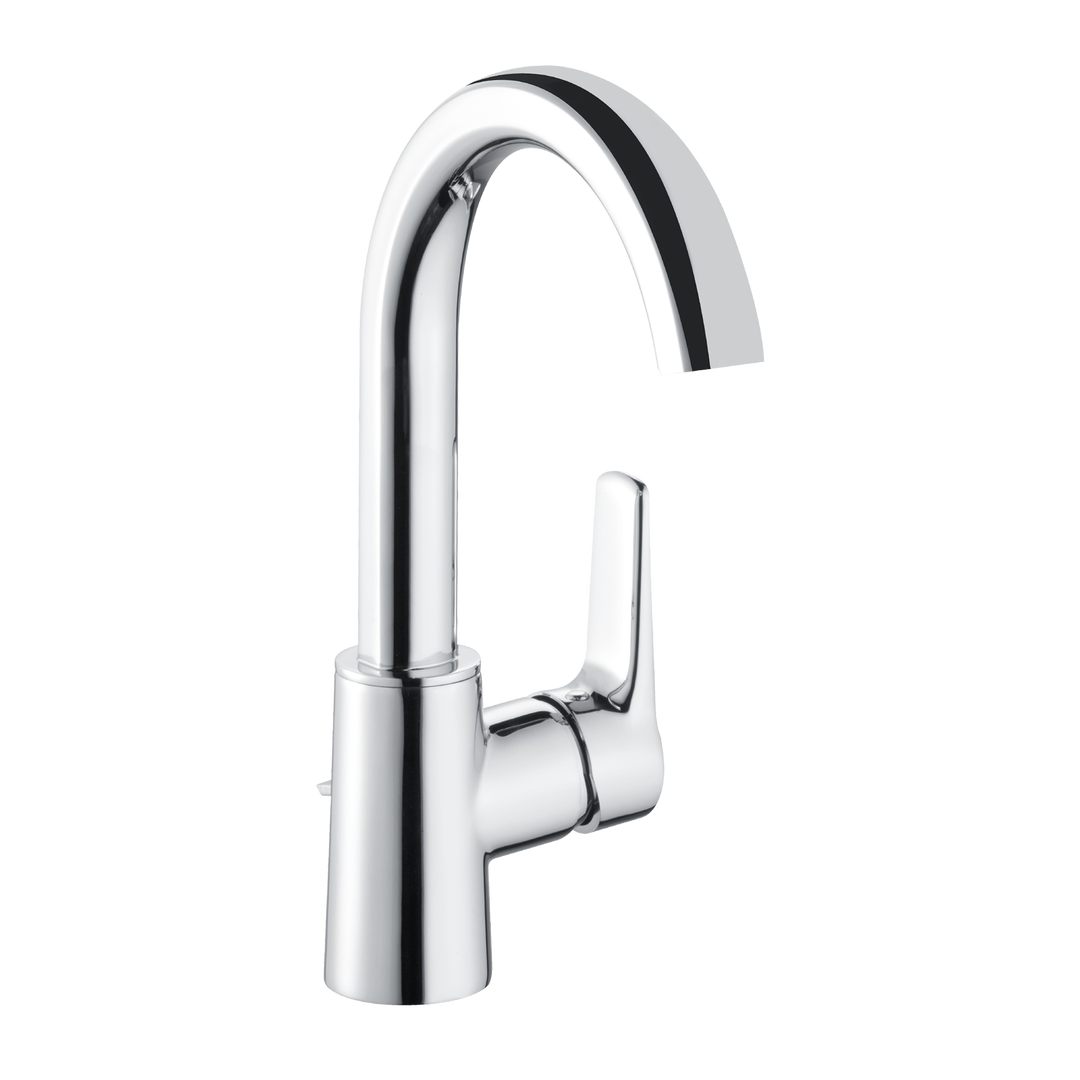

alpha_350 Wash basin mixer with pop-up waste
Product description

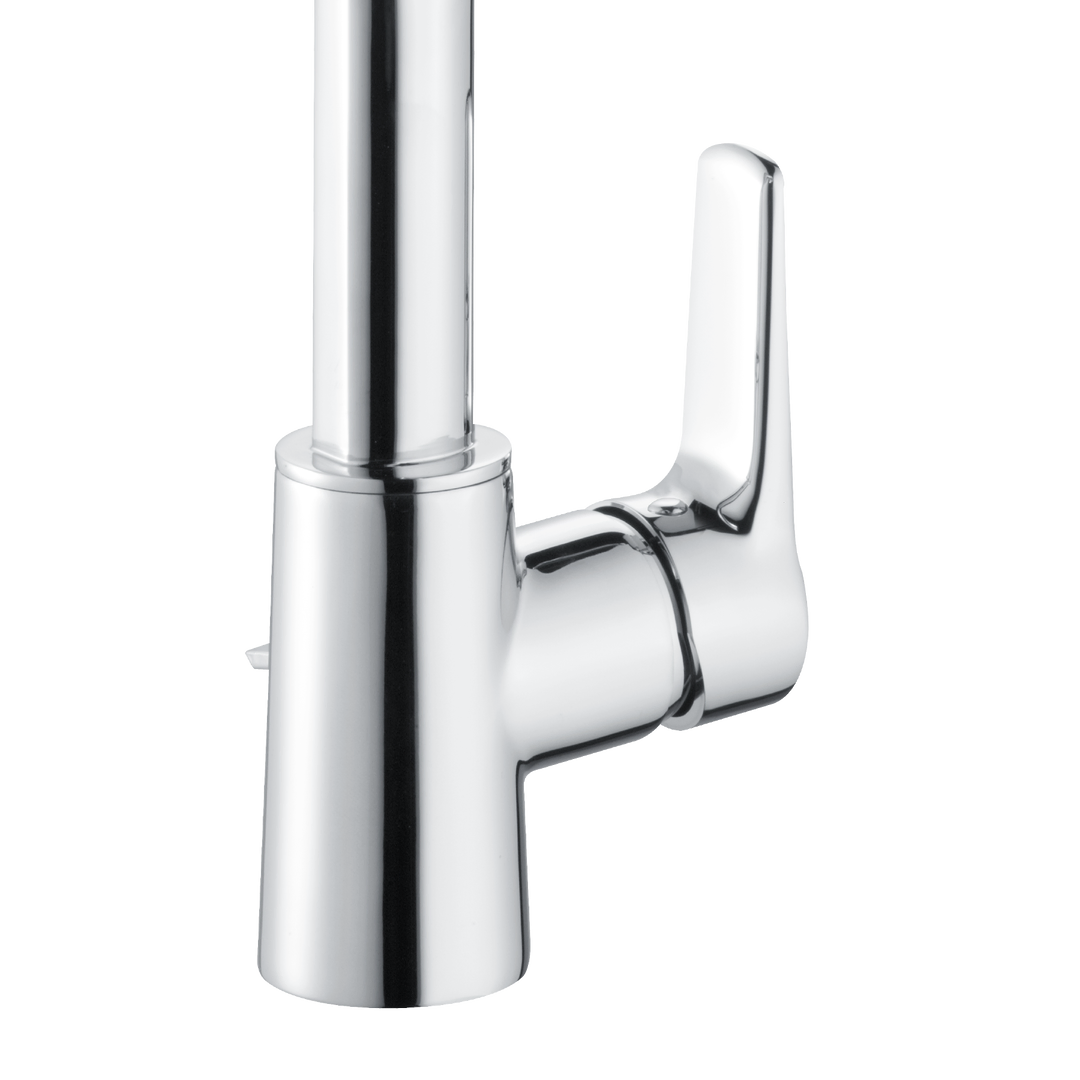

Der zylindrische Grundkörper der seitengesteuerten Armatur verjüngt sich sanft nach oben und bildet damit eine stilvolle Basis für den sich in weitem Bogen erhebenden Schwenkauslauf. Die brillante Chromoberfläche untersteicht wirkungsvoll die Schönheit dieser Armatur. Leicht beweglich und ergonomisch sensibel abgestimmt, schließt der im Übergang markant gestaltete Hebel die Armatur formvollendet ab. Der unsichtbar eingesetzte Caché-Strahlregler hilft Wasser zu sparen und schützt die Armatur durch seine eigens dafür entwickelte Silikon-Lippe vor Kalkablagerungen.The Series alpha_350
With its delicately sculpted contours and gently curved forms, the alpha_350 elegantly complements both organically curved and geometrically stylised interior designs. The range strikes a balance between softness and clarity, blending harmoniously into bathroom designs whilst retaining its own distinctive and subtly accentuated character. The alpha_350 combines modern, understated design with a construction designed for reliable use and a lasting presence in everyday life.
Technical information
Product features
- Z056102-00010
- Heinrich Schulte
- Wash basin mixer
- alpha_350
- chrome
- reach 150 mm
- height to aerator 200 mm
- maximum height 275 mm
- cartridge 35 mm
- with hot water limiter
- spout swivelling
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW

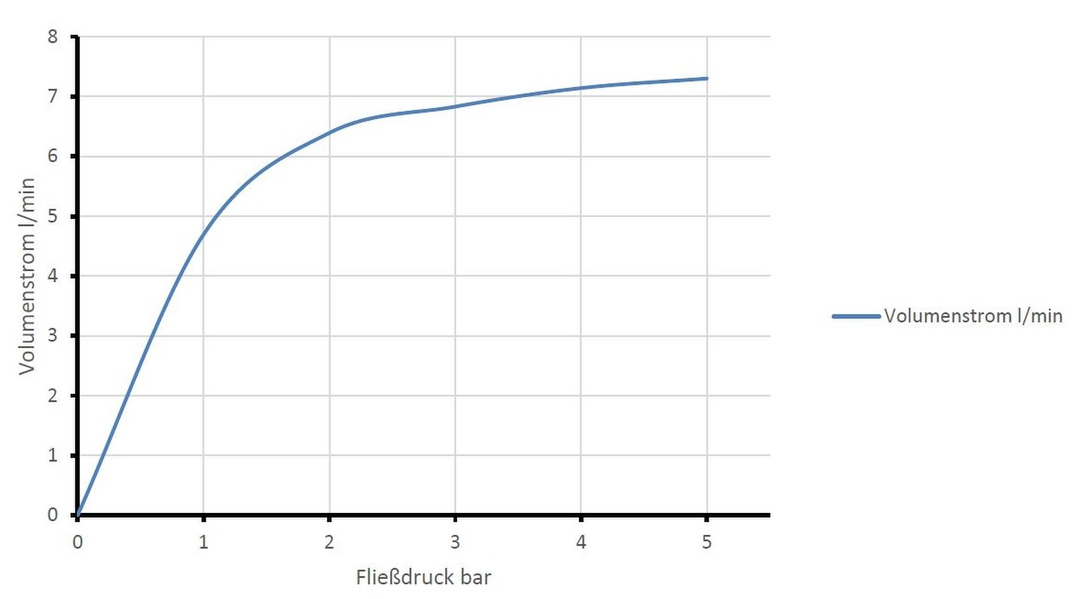

- aerator 7 l/min
- Cache, anti lime
- DIN DVGW
- single hole mounted
- lateral control
- with pop-up waste 1 1/4"
- with mounting kit
Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Wash basin mixer
- Mounting kit
- Pop-up waste with pull rod
- Cast spout
- Assembly instruction
- Certificate
Spare parts
Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH AUSLAUF FÜR EHM WASCHTISCHARM. | Z013077-00010 |
| 4 | SH KARTUSCHE FÜR NORMALDRUCK | Z009200-00000 |
| 5 | SH VERSCHRAUBUNG | Z009111-00000 |
| 6 | SH ROSETTE M37 X 1,5 / D:39,7X12 | Z009110-00010 |
| 7 | SH BEDIENUNGSHEBEL ALPHA_100 | Z056990-00010 |
| 8 | SH ZUGSTANGE MIT KNOPF | Z009187-00010 |
| 9 | SH ABLAUFGARNITUR KOMPLETT | Z001128-00010 |
| 10 | SH FLEXSCHLAUCH M10 X 1 - 3/8" | Z009141-00000 |
| 11 | SH GEWINDESTANGE M8 X 130 | Z009072-00000 |
| 12 | SH SCHNELLVERSCHRAUBUNG KOMPLETT | Z009295-00000 |
