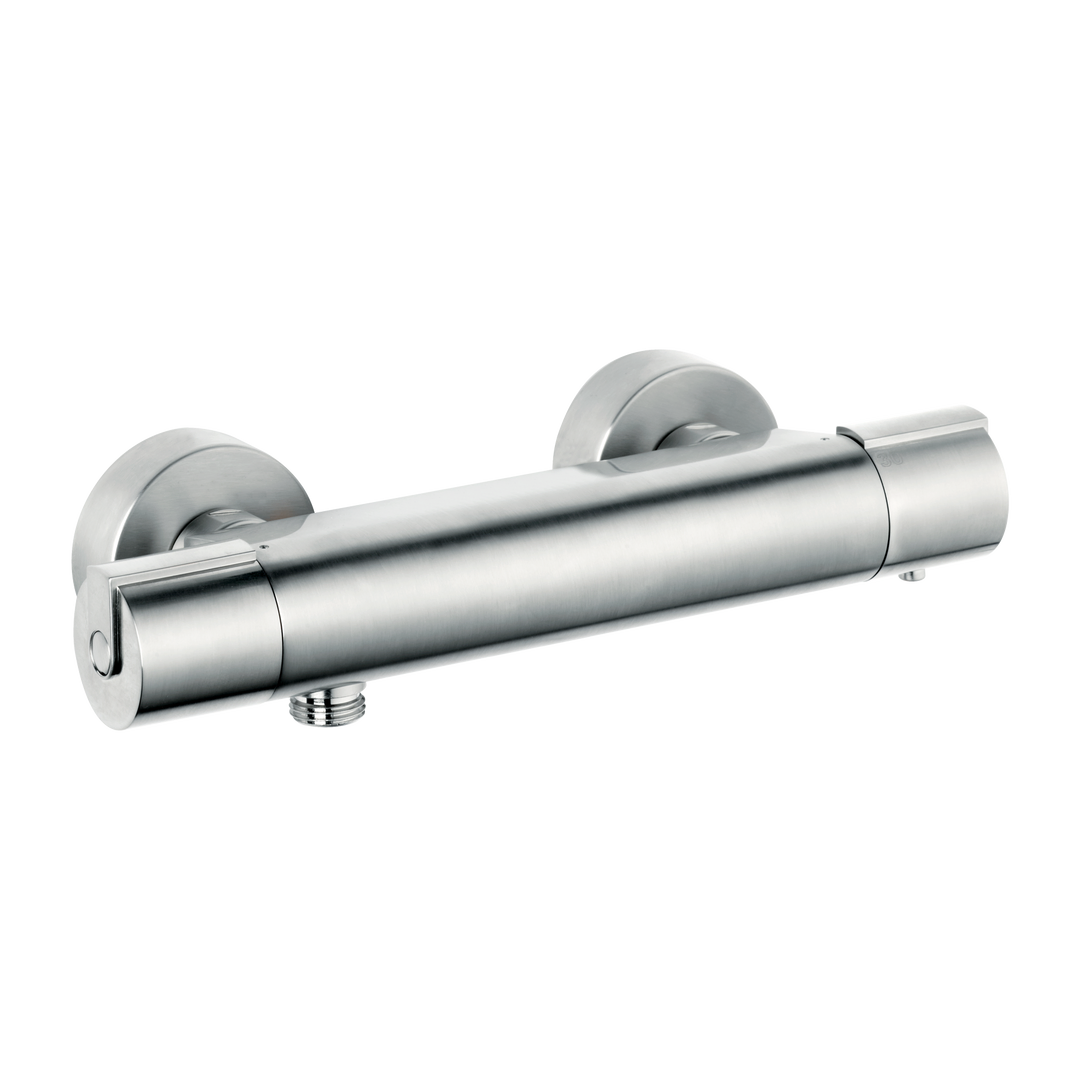

alpha_400 Thermostatic shower mixer without shower set
Product description

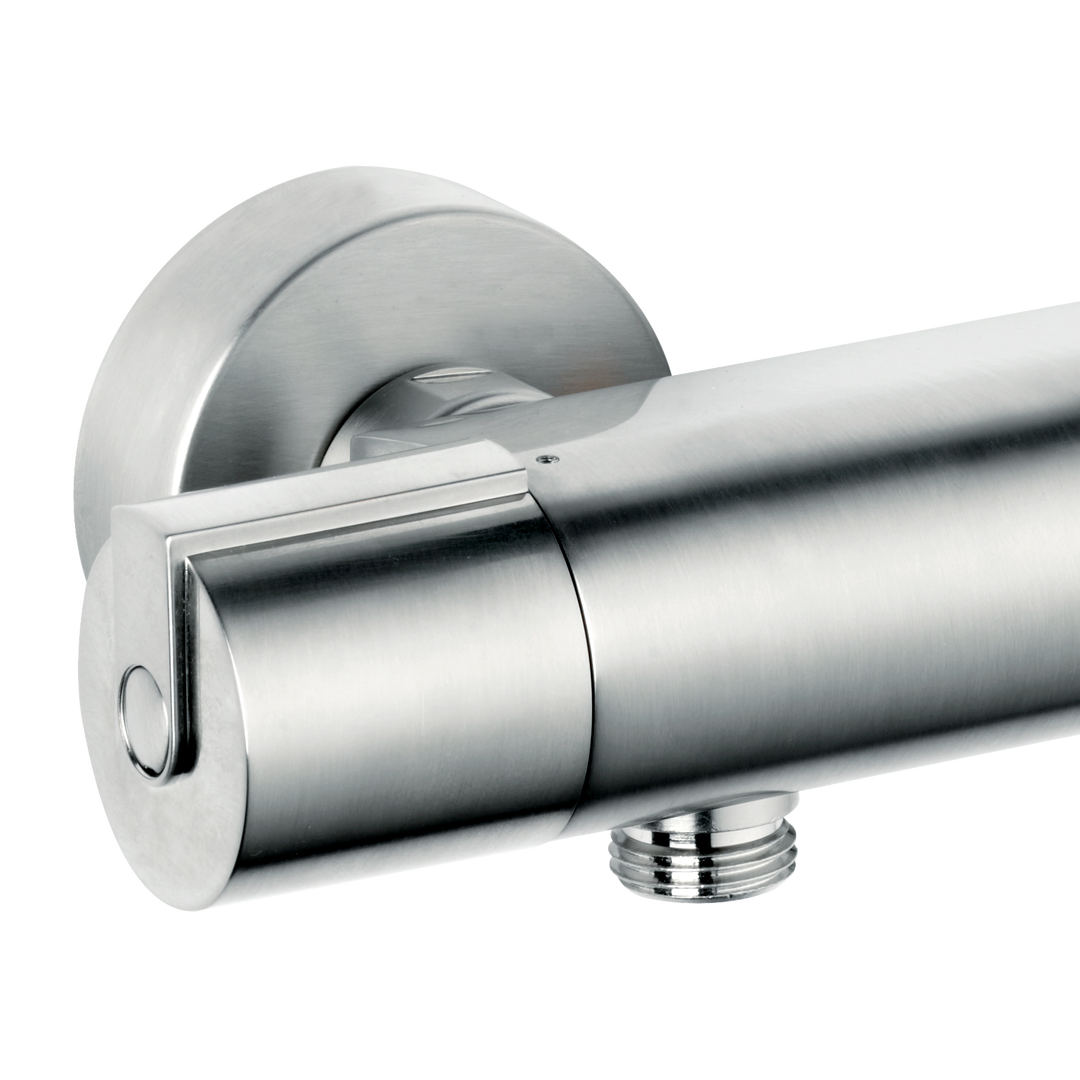

In einer eleganten Überwölbung trägt der Armaturenkörper die seitlich montierten Bedienelemente. Wie eine übergangslose Verlängerung des Grundkörpers sind Mengeneinsteller und Temperaturregler links und rechts positioniert. Die Abflachung im oberen Bereich der Griffe ermöglicht sicheres Greifen und signalisiert die 0-Position. Um das Wasser zur Handbrause zu leiten, wird der Mengeneinsteller ganz bequem nach vorne gedreht. Die Temperaturauswahl bleibt davon unberührt. Leicht der Wand anpassbare Schubrosetten umschließen elegant die Zuleitungen und verleihen der Armatur auch im Anschlussbereich eine sehr hochwertige Erscheinung.The Series Design alpha_400
New finishes lend the alpha_400 an extra layer of design depth without compromising the architectural clarity of the product line. The precise lines and defined surfaces retain their calm, high-quality appearance, yet gain additional expressiveness through the finish. The result is designer mixers for modern bathrooms that define a space not only through their form, but also through the effect of the materials and finishes. The alpha_400 range thus opens up a new dimension in personalised bathroom design.
Related products
Technical information
Product features
- MF69646-00140
- Heinrich Schulte Manufacture
- Thermostatic shower mixer
- alpha_400
- steel_line
- maximum width 270 mm
- centre distance 135 - 165 mm
- S-connectors 1/2"
- outlet to shower 1/2"
- thermo element and ceramic head part
- materials in accordance with German Drinking Water Regulations and FEA
- for wall mounting
- protected against backflow
- with covered S-connections
- suitable for instantaneous water heaters

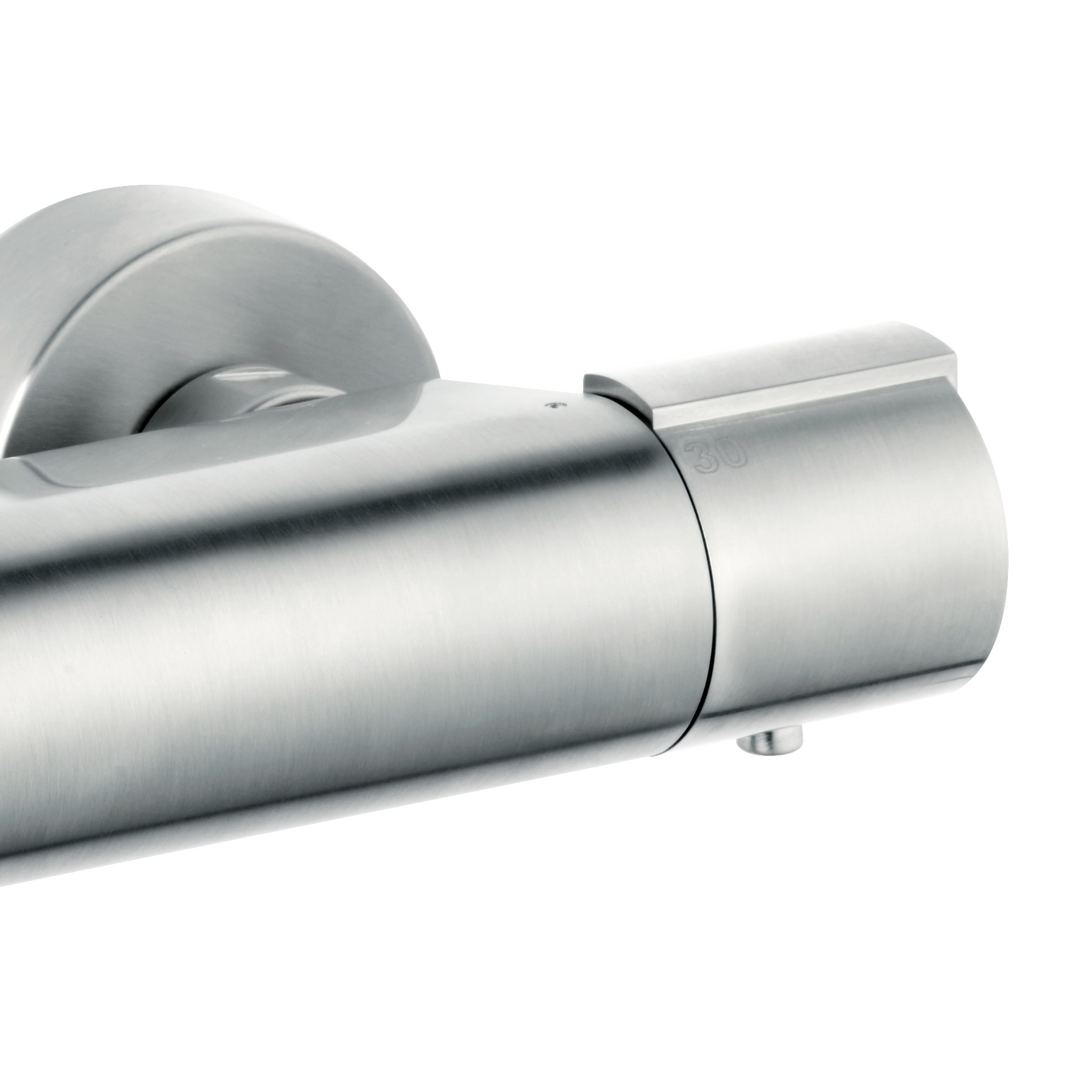

- temperature control handle
- with hot water safety stop at 38 degree
- without shower set
Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Thermostatic shower mixer
- Rosettes
- S-connectors
- Dirt sieves
- Assembly instruction
- Care instruction
Spare parts
Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | GRIFF TEMPERATUR STEEL_LINE | MF59991-31140 |
| 2 | THERMOELEMENT | Z009238-00002 |
| 4 | SH KERAMIKOBERTEIL 1/2" | Z000051-00002 |
