alpha_400 Visible parts for concealed valve
Product description
Zur Steuerung eines Unterputzventils wurde dieser imponierende Griff mit der die Grundstellung markierender Abflachung entwickelt. In seiner zurückhaltenden Gesamterscheinung ist er dennoch ein sehr funktionales Schmuckstück. Die quadratische, an den Ecken leicht verrundete Wandrosette, bildet einen sehr schön abgestimmten Übergang zur Wand.The Series Design alpha_400
New finishes lend the alpha_400 an extra layer of design depth without compromising the architectural clarity of the product line. The precise lines and defined surfaces retain their calm, high-quality appearance, yet gain additional expressiveness through the finish. The result is designer mixers for modern bathrooms that define a space not only through their form, but also through the effect of the materials and finishes. The alpha_400 range thus opens up a new dimension in personalised bathroom design.
Technical information
Product features
- MF69191-00080
- Heinrich Schulte Manufacture
- Visible parts
- alpha_400
- handle metal
- grey_line
- diameter cover plates 65 mm
- mounting with conc. valve
- with installation depth compensation
- with elongated gearing
Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Visible parts
- Assembly instruction
- Care instruction
- Mounting key
Spare parts

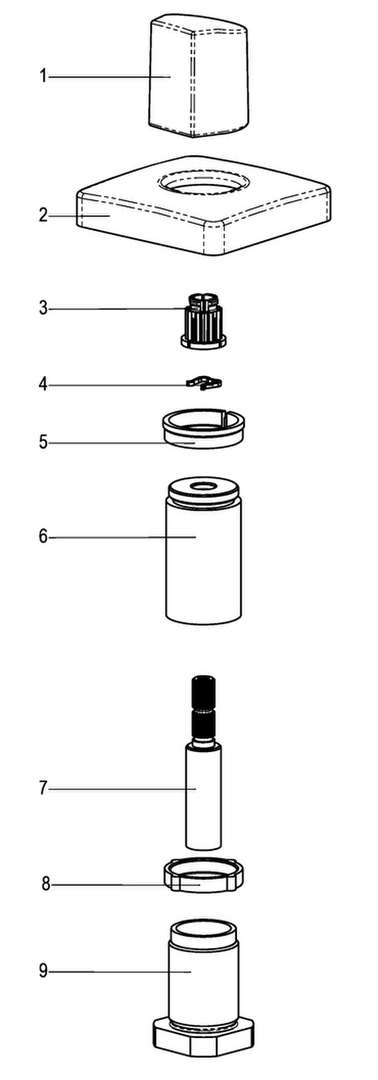

Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 3 | SH RASTBUCHSE | Z000413-00000 |
| 5 | SH ZENTRIERRING | Z000434-00000 |
