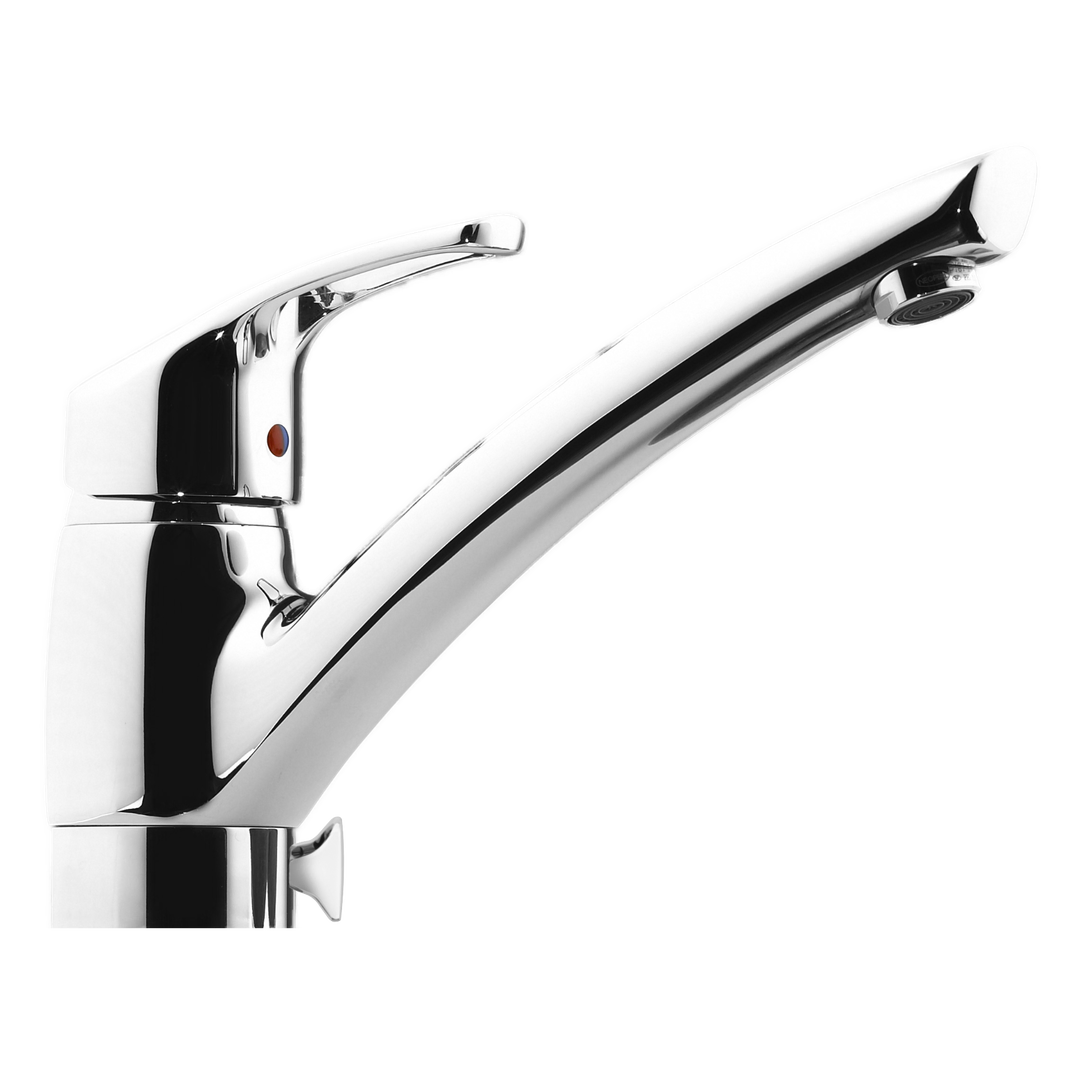

ascona_1 Kitchen mixer low pressure for below window mounted
The Series ascona_1
Dynamism and organic design come together in a unique way in the ascona_1 line by heinrichschulte. The rising spout and the control lever that sweeps upwards in parallel give the mixers in this line a dynamic, characterful design language that exudes individuality whilst blending harmoniously into a variety of interior concepts. Refined from classic design features, ascona_1 feels both familiar and distinctive. Its lively lines and meticulous attention to detail make it a series that stylishly complements both modern and classic bathrooms.
Technical information
Product features
- Z051838-00010
- Heinrich Schulte
- Kitchen mixer low pressure
- ascona_1
- chrome
- reach 200 mm
- height to aerator 135 mm
- maximum height 165 mm
- cartridge 44 mm
- with hot water and flow rate limiter
- spout swivelling
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator low pressure
- below window mounted
- for unpressurized water heaters
- with shaft screw connection
- with flow rate limiter 5 l/min

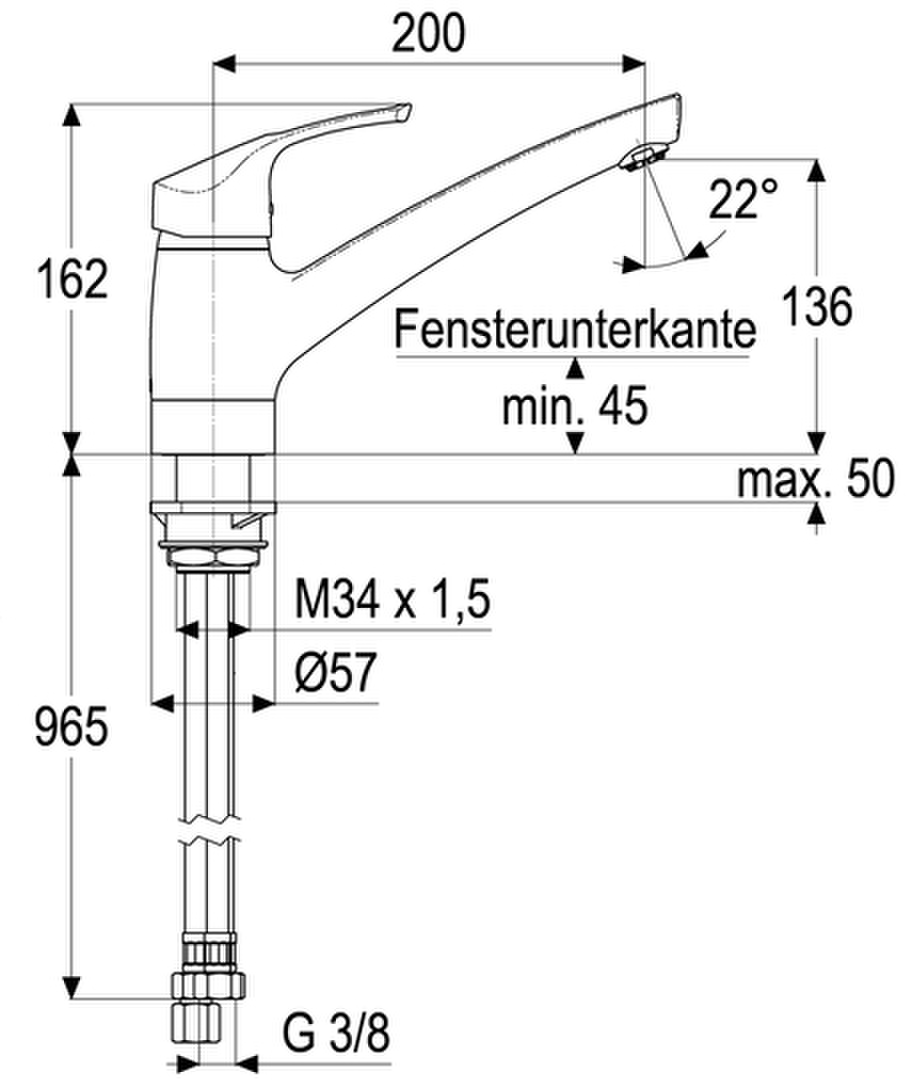

Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Kitchen mixer
- Shaft screw connection kit
- Flow rate limiter
- Assembly instruction
- Care instruction
Spare parts
Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH BEDIENHEBEL ASCONA_1 | Z051980-00010 |
| 2 | SH ROSETTE M48 X 1 | Z009076-00010 |
| 3 | SH VERSCHRAUBUNG F. SCHRAUBKAPPE | Z009078-00000 |
| 4 | SH KARTUSCHE FÜR NORMALDRUCK | Z000070-00000 |
| 6 | SH ANSCHLAGSCHRAUBE | Z000235-00000 |
| 7 | SH STRAHLREGLER ND | Z013924-00010 |
| 8 | SH DICHTUNGSSATZ F.44ER KARTUSCHE | Z001811-00000 |
| 12 | SH FLEXSCHLAUCH M8 X 1 - 3/8" | Z009098-00000 |
| 13 | SH FLEXSCHLAUCH M10 X 1 - 3/8" | Z009095-00000 |
| 14 | SH DURCHFLUSSBEGRENZER 3/8" | Z019389-00000 |
| 16 | SH SCHAFTVERSCHRAUBUNG M34 X 1,5 | Z009196-00000 |
