ascona_1 Wash basin mixer low pressure with push button waste
The Series ascona_1
Dynamism and organic design come together in a unique way in the ascona_1 line by heinrichschulte. The rising spout and the control lever that sweeps upwards in parallel give the mixers in this line a dynamic, characterful design language that exudes individuality whilst blending harmoniously into a variety of interior concepts. Refined from classic design features, ascona_1 feels both familiar and distinctive. Its lively lines and meticulous attention to detail make it a series that stylishly complements both modern and classic bathrooms.
Technical information
Product features
- Z051165-00010
- Heinrich Schulte
- Wash basin mixer low pressure
- ascona_1
- chrome
- reach 180 mm
- height to aerator 215 mm
- maximum height 310 mm
- cartridge 35 mm
- with hot water and flow rate limiter
- spout swivelling
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator low pressure
- single hole mounted
- for unpressurized water heaters
- lateral control
- with push button waste
- with mounting kit
- with flow rate limiter 5 l/min

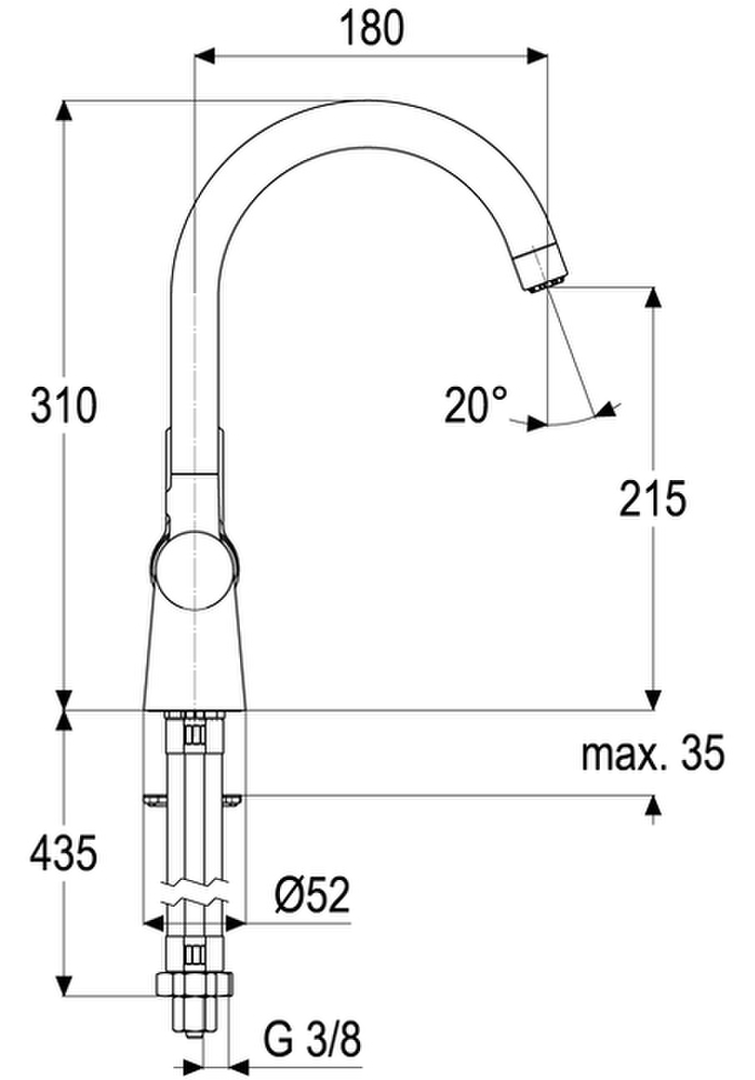

Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Wash basin mixer
- Mounting kit
- Push button waste
- Cast spout
- Flow rate limiter
- Assembly instruction
Spare parts
Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 0 | SH ABLAUFGARNITUR KOMPLETT | Z001126-00010 |
| 4 | SH KARTUSCHE FÜR HOCH-/NIEDERDUCK | Z000074-00000 |
| 5 | SH AUSLAUF FÜR EHM KÜCHENARMATUR | Z013069-00010 |
| 6 | SH ROSETTE M37 X 1,5 / D:39,7X12 | Z009110-00010 |
| 7 | SH BEDIENHEBEL ASCONA_1 | Z051994-00010 |
| 8 | SH FLEXSCHLAUCH M8 X 1 - 3/8" | Z009075-00000 |
| 9 | SH FLEXSCHLAUCH M10 X 1 - 3/8" | Z009141-00000 |
| 10 | SH DURCHFLUSSBEGRENZER 3/8" | Z019389-00000 |
| 11 | SH BEFESTIGUNGSSATZ M8 x 57MM | Z000606-00000 |
