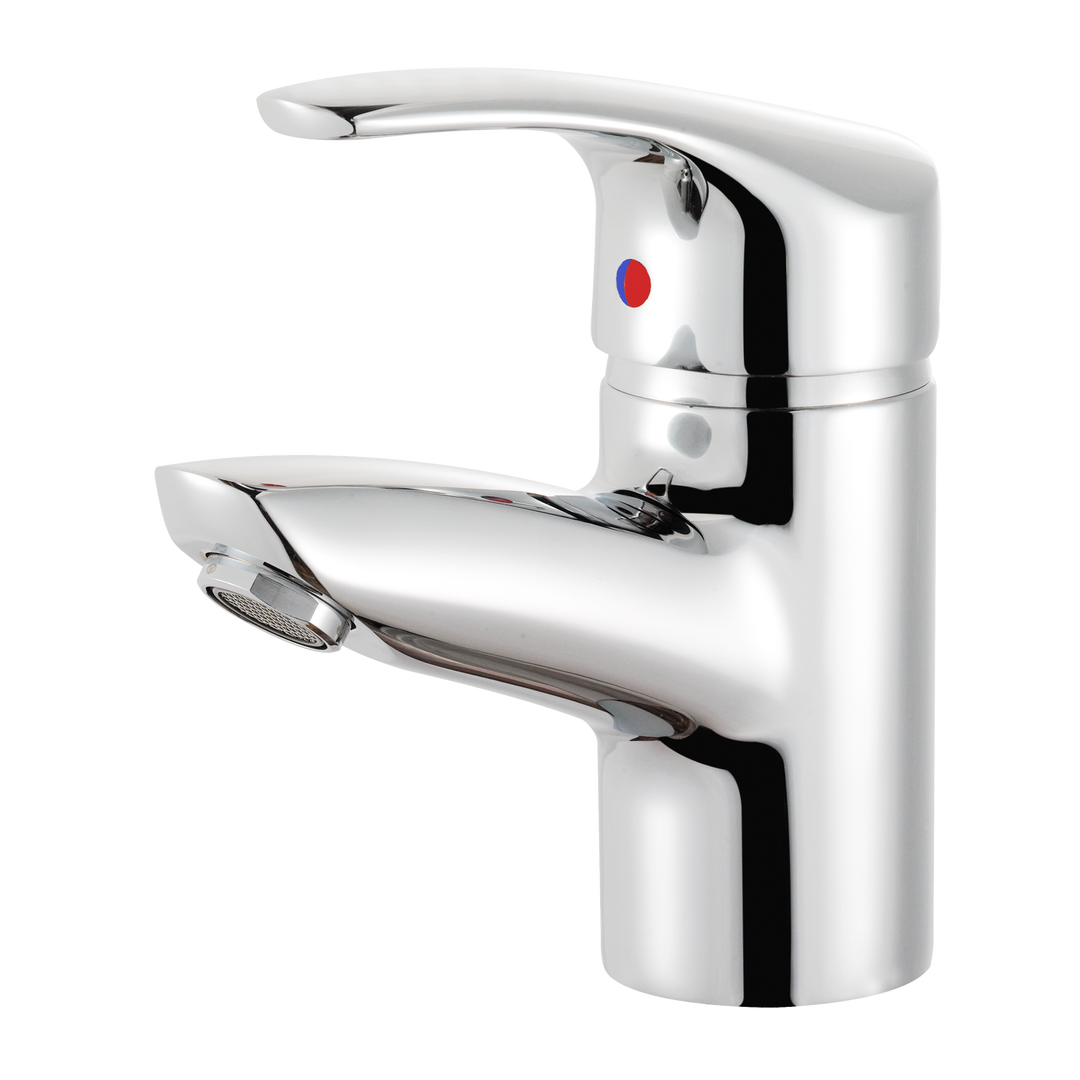

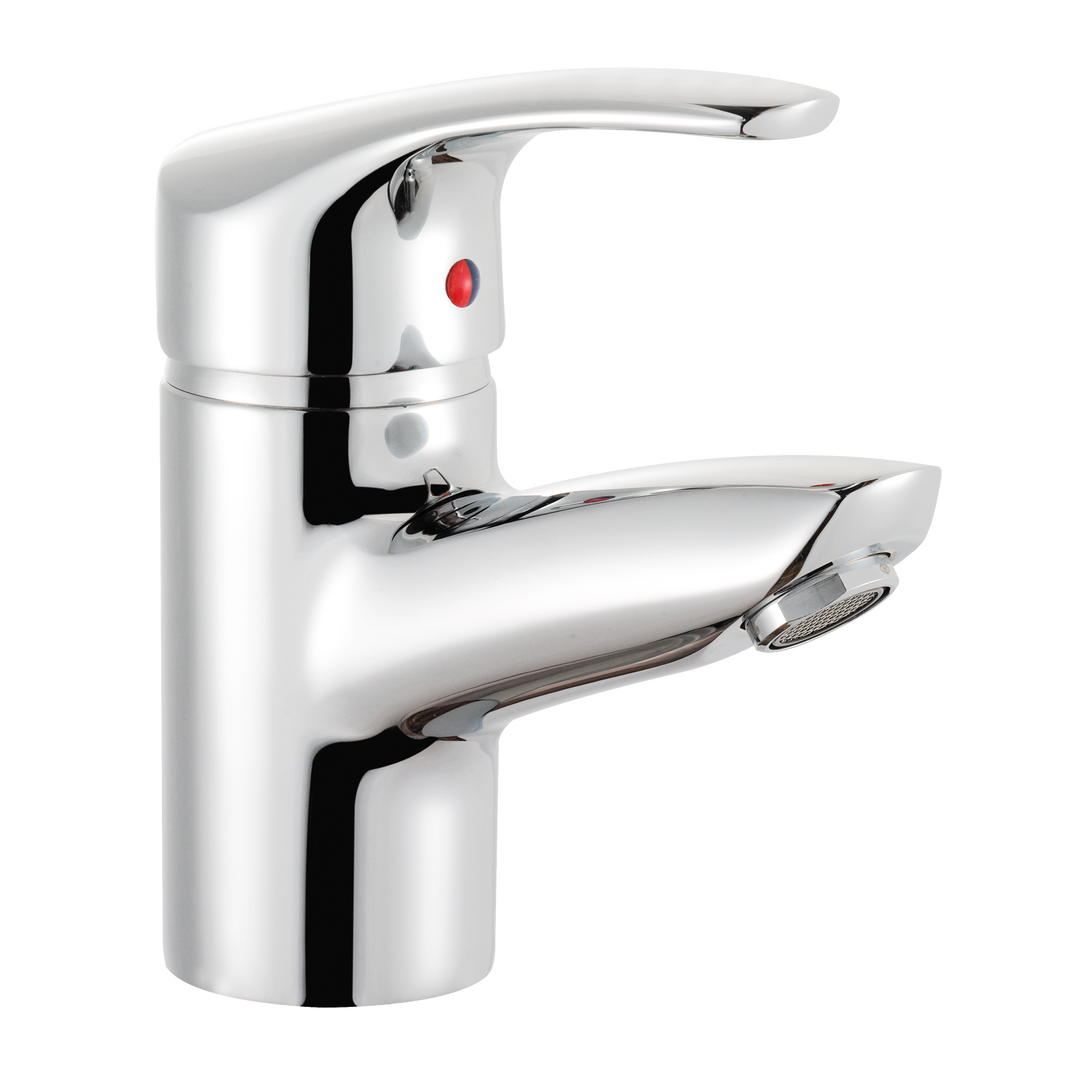

ascona_1 Wash basin mixer with pop-up waste
Product description
Die dynamische Gestaltung der Armaturenserie ascona_1 fügt sich spielerisch in die organische Formensprache der Sanitärkeramik ein. Durch den ansteigenden Auslauf und den parallel dazu aufschwingenden Bedienhebel zeigt sie Mut zur Individualität. Detailverliebt weiterentwickelt aus klassischen Gestaltungsmerkmalen, findet sich diese Armaturenserie bestens in der Welt moderner Badezimmer zurecht. ascona_1 ist eine Armatur für unsere Zeit.The Series ascona_1
Dynamism and organic design come together in a unique way in the ascona_1 line by heinrichschulte. The rising spout and the control lever that sweeps upwards in parallel give the mixers in this line a dynamic, characterful design language that exudes individuality whilst blending harmoniously into a variety of interior concepts. Refined from classic design features, ascona_1 feels both familiar and distinctive. Its lively lines and meticulous attention to detail make it a series that stylishly complements both modern and classic bathrooms.
Technical information
Product features
- Z051022-50010
- Heinrich Schulte
- Wash basin mixer
- ascona_1
- chrome
- reach 105 mm
- height to aerator 60 mm
- maximum height 140 mm
- cartridge 44 mm
- with hot water and flow rate limiter
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator flow rate class A
- single hole mounted
- with pop-up waste 1 1/4"
- with mounting kit

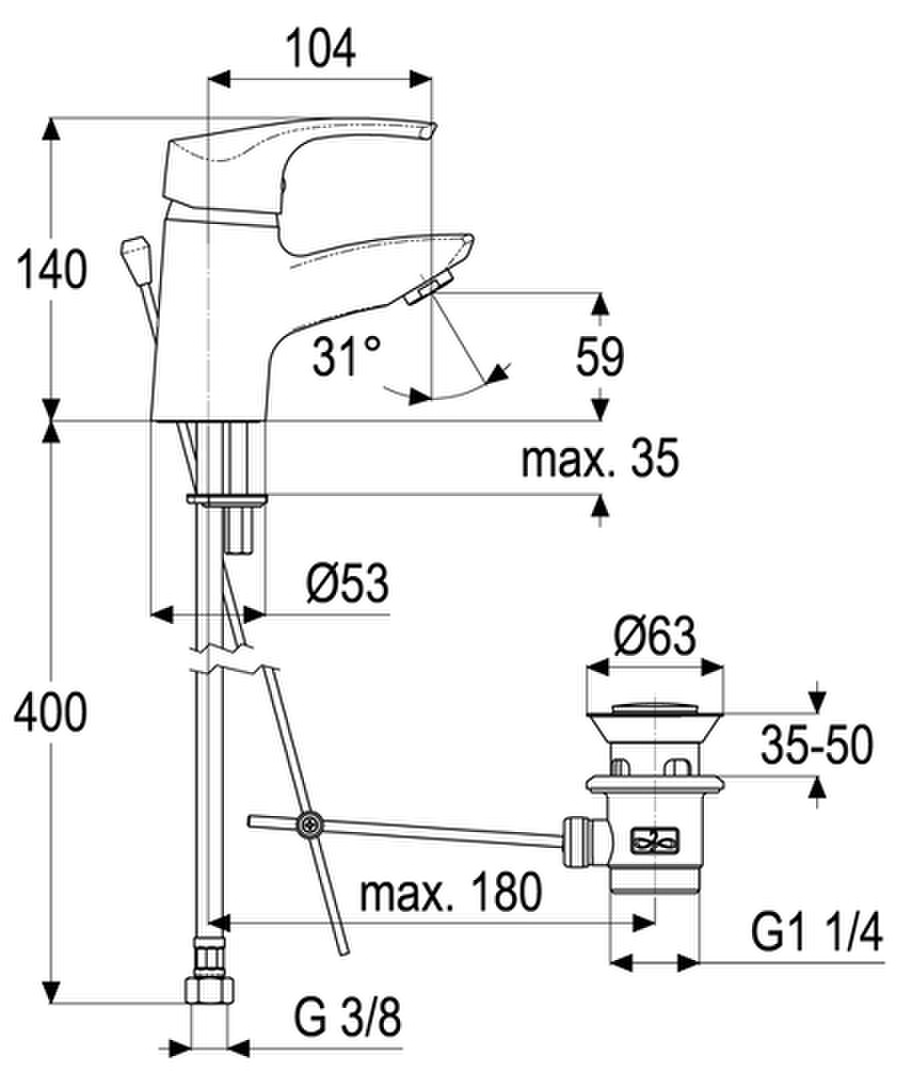

Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Wash basin mixer
- Mounting kit
- Pop-up waste with pull rod
- Assembly instruction
- Care instruction
- Certificate
Spare parts

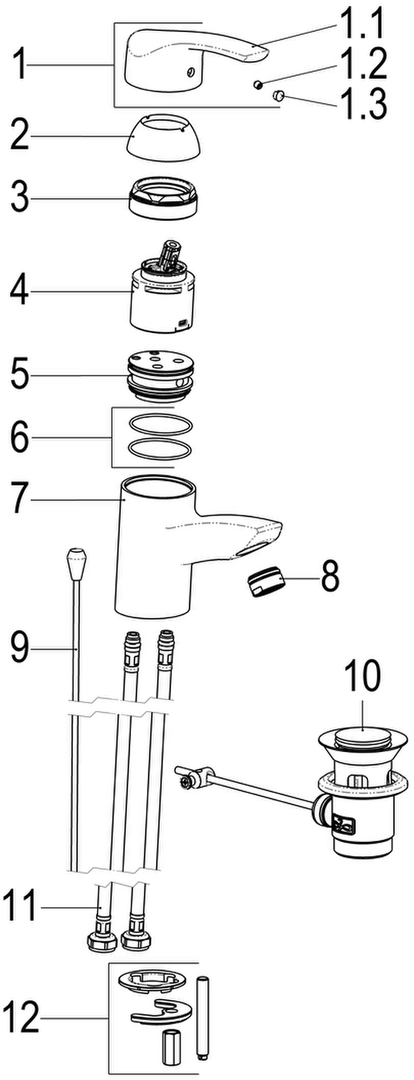

Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH BEDIENHEBEL ASCONA_1 | Z051970-00010 |
| 2 | SH ROSETTE M48 X 1 | Z009076-00010 |
| 3 | SH VERSCHRAUBUNG F. SCHRAUBKAPPE | Z009078-00000 |
| 4 | SH KARTUSCHE FÜR NORMALDRUCK | Z000070-00000 |
| 6 | SH LUFTSPRUDLER CASCADE KL. A | Z013974-00010 |
| 7 | SH FLEXSCHLAUCH M10 X 1 - 3/8" | Z009141-00000 |
| 8 | SH BEFESTIGUNGSSATZ M8 x 57MM | Z000616-00000 |
| 9 | SH ABLAUFGARNITUR KOMPLETT | Z001128-00010 |
| 10 | SH ZUGSTANGE MIT KNOPF | Z009184-00010 |
