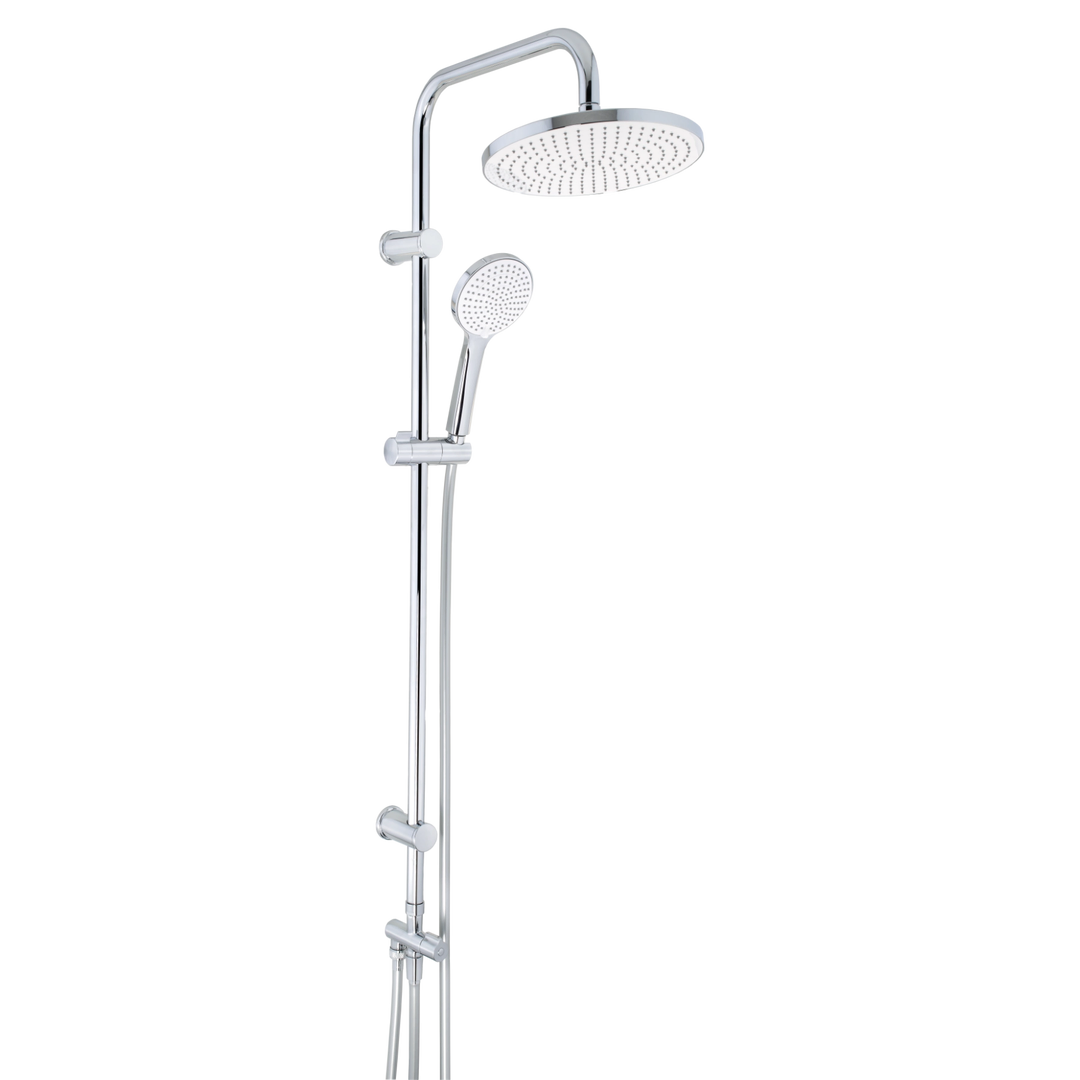

The Series B300
The B300 combines everyday comfort with a more modern and elegant design. Its balanced proportions, ease of use and harmonious water flow make it a versatile solution for contemporary bathroom designs. When used with the included water-saving insert, the B300 delivers a comfortable showering experience using less than 8 litres per minute, whilst also promoting a more conscious use of water. FlexClean makes it easier to clean the silicone nozzles. Made in Germany and certified to the company’s own extraordinary standards, the B300 stands for traceable quality, long-lasting performance and reliable build quality.
Technical information
Product features
- Z048534-00010
- Heinrich Schulte
- Shower system
- B300
- chrome
- reach 500 mm
- diverter with ceramic discs
- outlet to shower 1/2"
- hand shower 3S
- shower rain, massage jet and mix
- head diameter 110 mm
- anti lime
- rain shower round 230 mm
- shower hose 800 mm and 1600 mm
- for wall mounting
- with water-bearing shower rod
- with connecting hose
- with ball joint
- with selectable spray pattern
- suitable for instantaneous water heaters
- with connection hoses
- drilling distance 700 - 950 mm
- with adjustable shower holder
Dimensional drawing
Delivery and installation
Spare parts

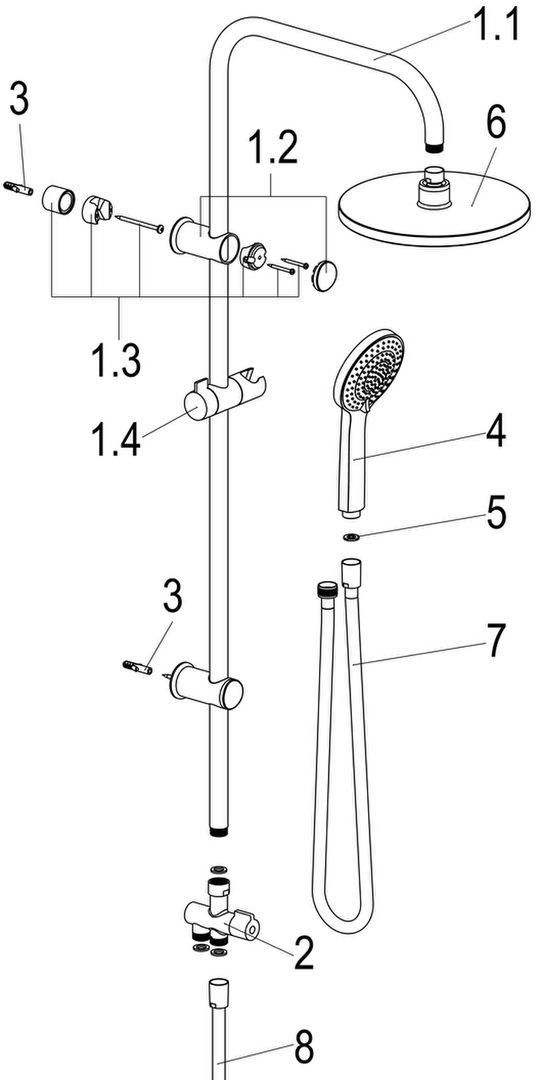

Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | B300 Glider | Z048513-00010 |
| 4 | B300 Hand shower 3S | Z048141-00010 |
| 7 | B300 Shower hose | Z048721-00010 |
| 8 | B300 Head shower 230 mm | Z048210-00010 |
