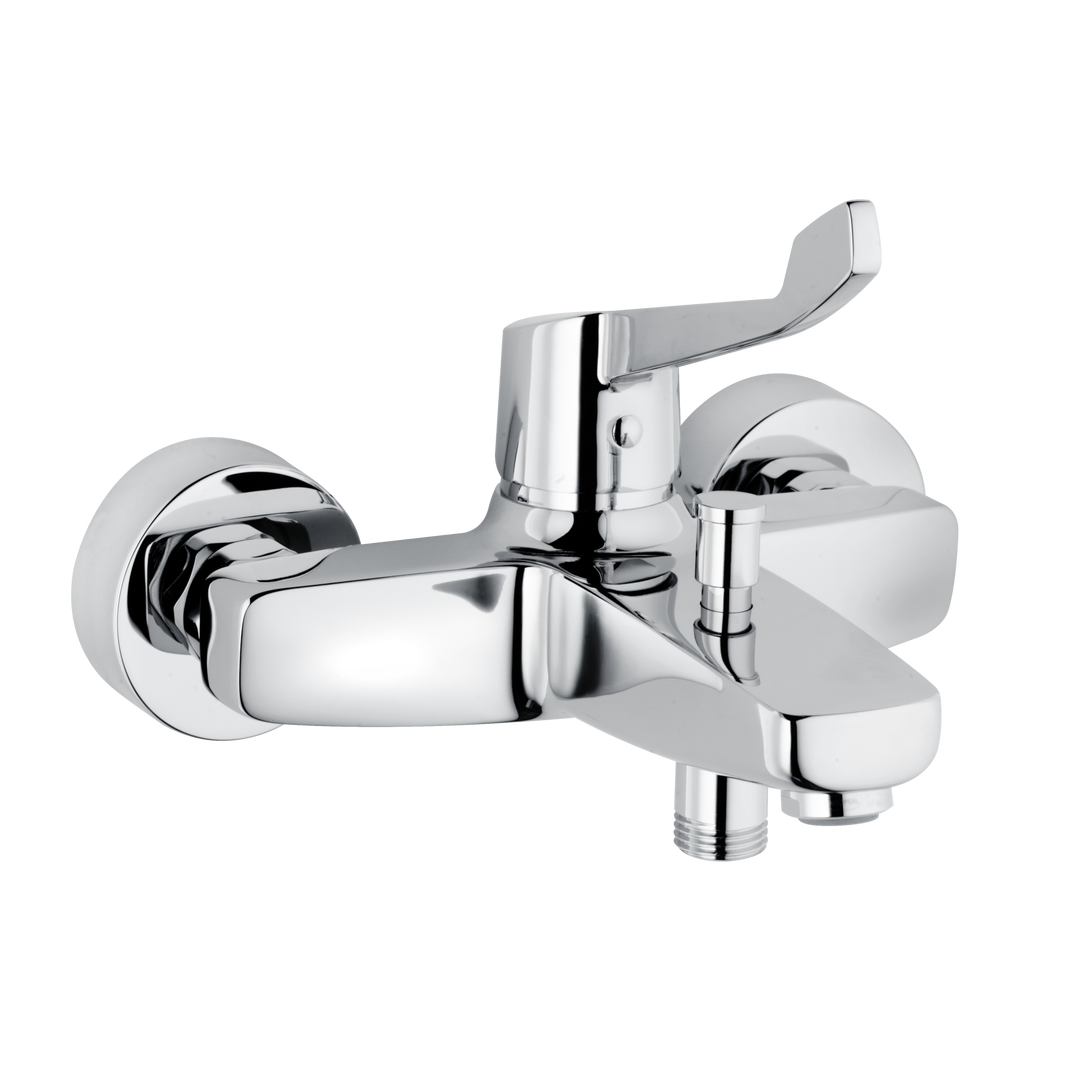

Bath shower mixer
Product description
Mit klarer Formensprache und ausgewogen proportioniert, harmoniert der Armaturenkörper in jeder Einbausituation. Die brillante Chromoberfläche unterstreicht wirkungsvoll die Schönheit dieser Armatur. Leicht beweglich und ergonomisch sensibel abgestimmt, schließt der im Übergang markant gestaltete Hebel die Armatur formvollendet ab. Der Umsteller ist in jeder Hebelposition bequem zu erreichen und durch seine besondere Form auch mit nassen Händen sicher zu bedienen.The Series alpha_300 Care
For applications with specific requirements, the alpha_300 Care expands the design universe of the alpha_300 with functional features tailored to the healthcare sector. The clean, understated design language of the standard range is retained and is effectively complemented by longer levers and laminar flow aerators. The result is mixers that promote ease of use, hygiene and reliable performance in settings where everyday safety and practical handling are particularly important. The alpha_300 Care combines design clarity with a design tailored to medical, care and accessibility-focused applications.
Technical information
Product features
- Z059406-96010
- Heinrich Schulte
- Bath shower mixer
- chrome
- reach 160 mm
- centre distance 135 - 165 mm
- S-connectors 1/2"
- diverter automatic
- outlet to shower 1/2"
- open cartridge 35 mm
- with hot water and flow rate limiter
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- aerator laminar
- DIN DVGW
- noise level test mark PA-IX 7201/IICC
- for wall mounting
- protected against backflow
- suitable for instantaneous water heaters
- for elbow lever action
- with reinforced cartridge screw connection
- without shower set
Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Bath shower mixer
- Rosettes
- S-connectors
- Assembly instruction
- Care instruction
Spare parts
Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH BEDIENUNGSHEBEL CARE | Z009919-30010 |
| 2 | SH ROSETTE M37 X 1,5 / D:39,7X12 | Z009110-00010 |
| 3 | SH VERSCHRAUBUNG | Z009111-00000 |
| 4 | SH KARTUSCHE FÜR NORMALDRUCK | Z009203-00001 |
| 5 | SH UMSTELLKNOPF FÜR WANNENARM. | Z009241-00010 |
| 7 | SH LAMINARSTRAHLREGLER | Z013906-00010 |
| 8 | SH AUFPUTZ-UMSTELLUNG | Z009149-00010 |
| 9 | SH WANDANSCHLUSSMUTTER 3/4" | Z000144-00010 |
| 11 | SH ANSCHLUSSNIPPEL MIT O-RING | Z000147-00000 |
| 13 | SH ROSETTE FÜR S-ANSCHLUSS 3/4" | Z009469-00010 |
