beta_316 Wash basin mixer with push button waste
Product description
beta_316 verkörpert schlankes Design aus vollwertigem Edelstahl und garantiert erneut die Erfüllung höchster Qualitäts- und Designmaßstäbe made by "heinrichschulte - Manufaktur". Exklusivität in Küche und Bad ist mit dieser Armatur garantiert.The Series beta_316
Its minimalist design, solid stainless steel and precise contours give the beta_316 line a calm, sophisticated presence. The distinctive material emphasises its technical and design qualities, lending the mixer an impressive sense of quality. Exclusivity, durability and high-quality craftsmanship come together here in plain sight. In the beta_316, heinrichschulte’s commitment to craftsmanship is combined with a design that infuses every bathroom with a blend of character and elegance.
Technical information
Product features
- MF82002-00140
- Heinrich Schulte Manufacture
- Wash basin mixer
- beta_316
- matt stainless steel
- reach 140 mm
- height to aerator 115 mm
- maximum height 170 mm
- cartridge 25 mm
- flexible hoses 3/8" DIN DVGW
- aerator flow rate class A
- single hole mounted
- with push button waste
- with mounting kit

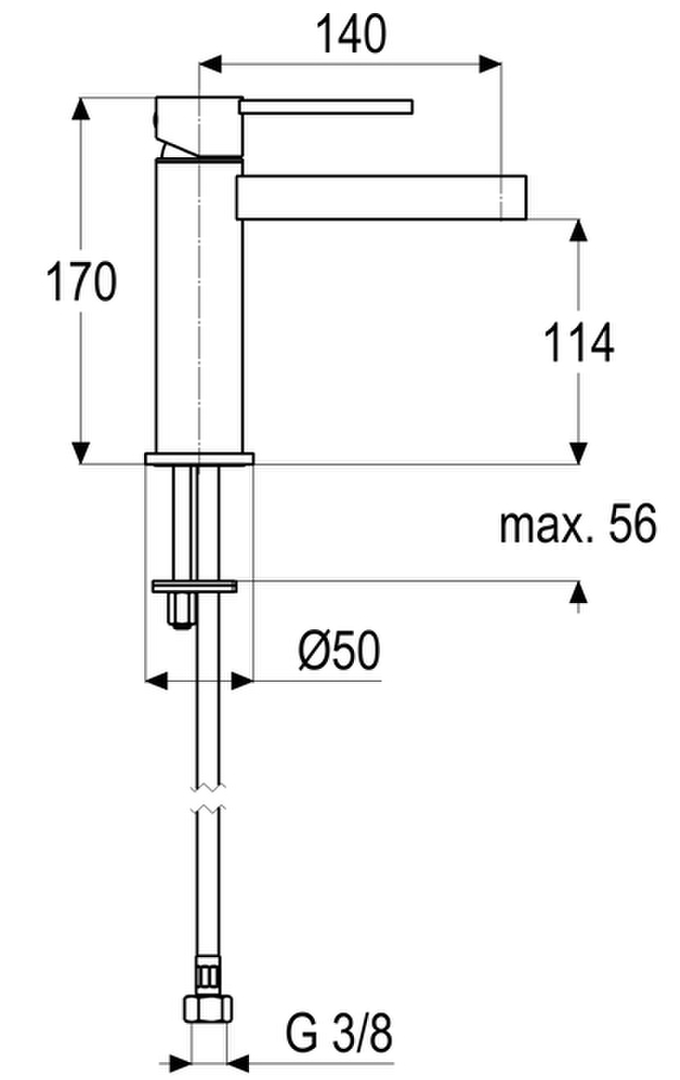

Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Wash basin mixer
- Mounting kit
- Push button waste
- Assembly instruction
- Care instruction
- Mounting key
Spare parts

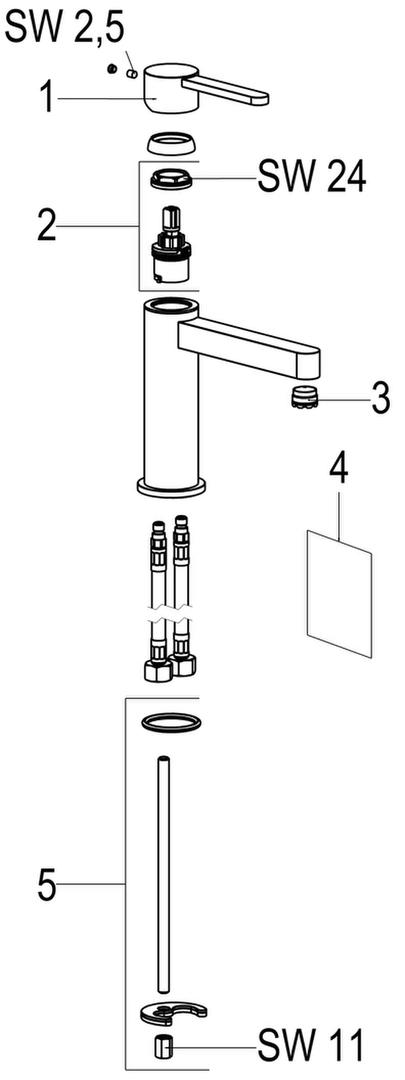

Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 3 | SH LUFTSPRUDLER CACHE | Z013909-00010 |
