beta_600 Wash basin mixer high with push button waste
Product description
beta_600 by "heinrichschulte - Manufaktur" verspricht hochwertigste Verarbeitung in einem edlen Design, eben eine Armatur der Extraklasse. Ein Must - have in jedem modernen Badezimmer. Das exklusive Design wird final von ihrem unvergleichlichen Wasserstrahl abgerundet. Unsere Komplettlösung beta_600 verwandelt Ihr Badezimmer in eine Wohlfühloase der besonderen Art.The Series beta_600
Staging, design and the experience of water come together in a distinctive way in the beta_600 from heinrichschulte. Its organic form, customisable control element and broad, cascading flow of water create an unmistakable appearance with a highly individual design identity. The beta_600 becomes more than a mixer: it becomes a defining element within the room. High-quality workmanship, expressive design and a water pattern with an almost theatrical quality give the line an exclusive presence, which can be further accentuated with an optional Murano glass lever.
Technical information
Product features
- MF60004-00010
- Heinrich Schulte Manufacture
- Wash basin mixer high
- beta_600
- chrome
- reach 89 mm
- height to aerator 240 mm
- maximum height 280 mm
- cartridge 35 mm
- with flow rate limiter
- materials in accordance with German Drinking Water Regulations and FEA
- flexible hoses 3/8" DIN DVGW
- single hole mounted
- without handle
- with push button waste
- with mounting kit

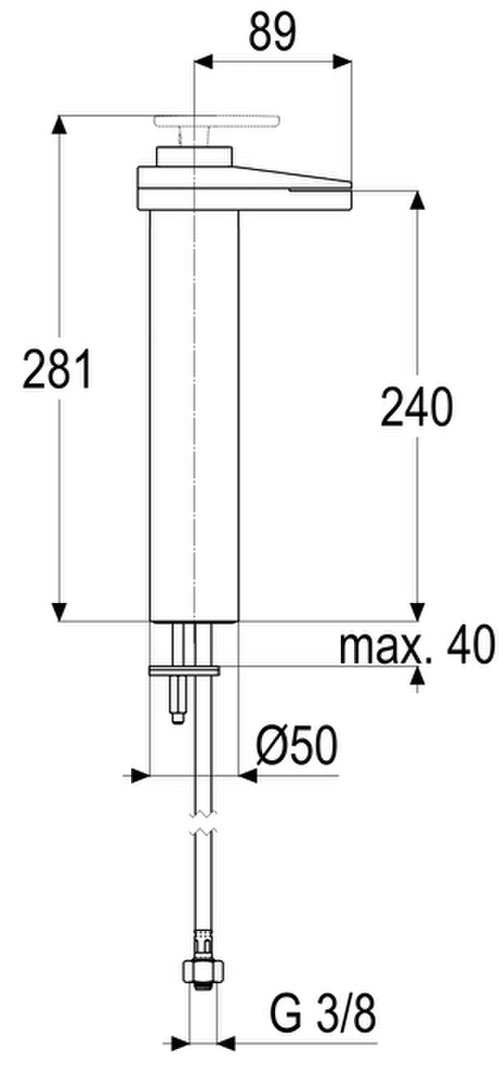

Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Wash basin mixer
- Mounting kit
- Push button waste
- Assembly instruction
- Care instruction
- Mounting key
Spare parts

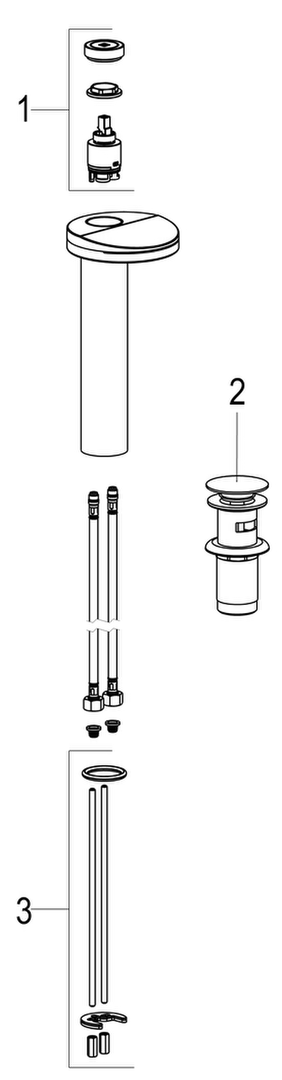

Exploded view
