malta Kitchen mixer low pressure with pull-out spray, for below window mounted
The Series malta
Purist design language and a striking, energetic expression give the malta its unmistakable character as a kitchen mixer. The spout and lever are closely coordinated in design, creating a clear, distinctive silhouette with high recognition value. The malta integrates confidently into modern kitchens and sink areas without losing presence. The line combines practical everyday functionality with a form that convincingly brings together clarity, dynamism and deliberately distinctive design.
Related products
Technical information
Product features
- Z065839-00010
- Heinrich Schulte
- Kitchen mixer low pressure
- malta
- chrome
- reach 200 mm
- height to aerator 105 mm
- maximum height 195 mm
- cartridge 44 mm
- with hot water and flow rate limiter
- spout swivelling and extractable
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator low pressure
- below window mounted
- for unpressurized water heaters
- with metal shower hose
- protected against backflow
- with shaft screw connection
- with flow rate limiter 5 l/min

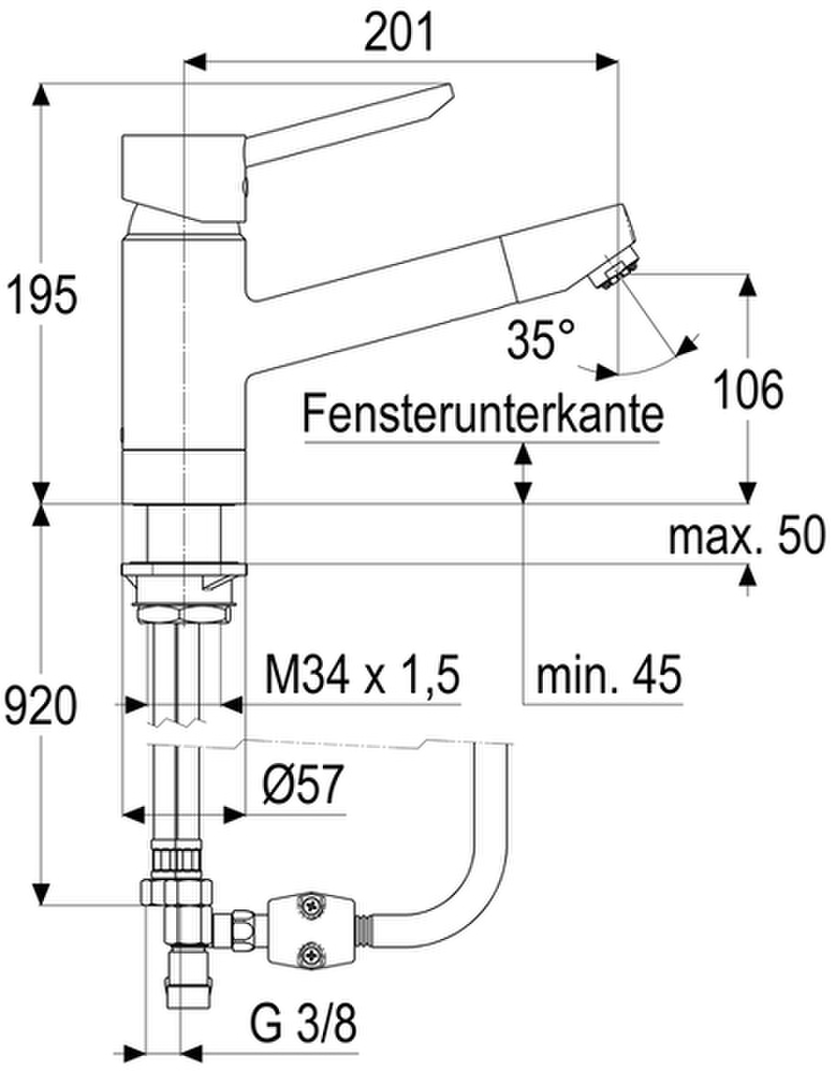

Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Kitchen mixer
- Shaft screw connection kit
- T-Piece
- Flow rate limiter
- Lead weight
- Check valve
- Assembly instruction
- Care instruction
Spare parts
Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH BEDIENHEBEL | Z009265-00010 |
| 2 | SH ROSETTE M48 X 1 | Z009076-00010 |
| 3 | SH VERSCHRAUBUNG F. SCHRAUBKAPPE | Z009078-00000 |
| 4 | SH KARTUSCHE FÜR NORMALDRUCK | Z000070-00000 |
| 6 | SH ANSCHLAGSCHRAUBE | Z000235-00000 |
| 8 | SH AUSZUGSCHLAUCH FÜR KÜCHENARM. | Z028804-00010 |
| 9 | SH STRAHLREGLER ND | Z013924-00010 |
| 12 | SH DICHTUNGSSATZ F.44ER KARTUSCHE | Z001810-00000 |
| 15 | SH ANSCHLUSSSCHLAUCH | Z009102-00010 |
| 16 | SH DURCHFLUSSBEGRENZER 3/8" | Z019389-00000 |
| 17 | SH RÜCKFLUSSVERHINDERER 3/8" | Z028903-00010 |
| 18 | SH T-ST. 3/8" IG X 3/8" AG X M15 | Z019394-00010 |
| 19 | SH BLEIGEWICHT | Z000287-00000 |
| 21 | SH SCHAFTVERSCHRAUBUNG M34 X 1,5 | Z009196-00000 |
