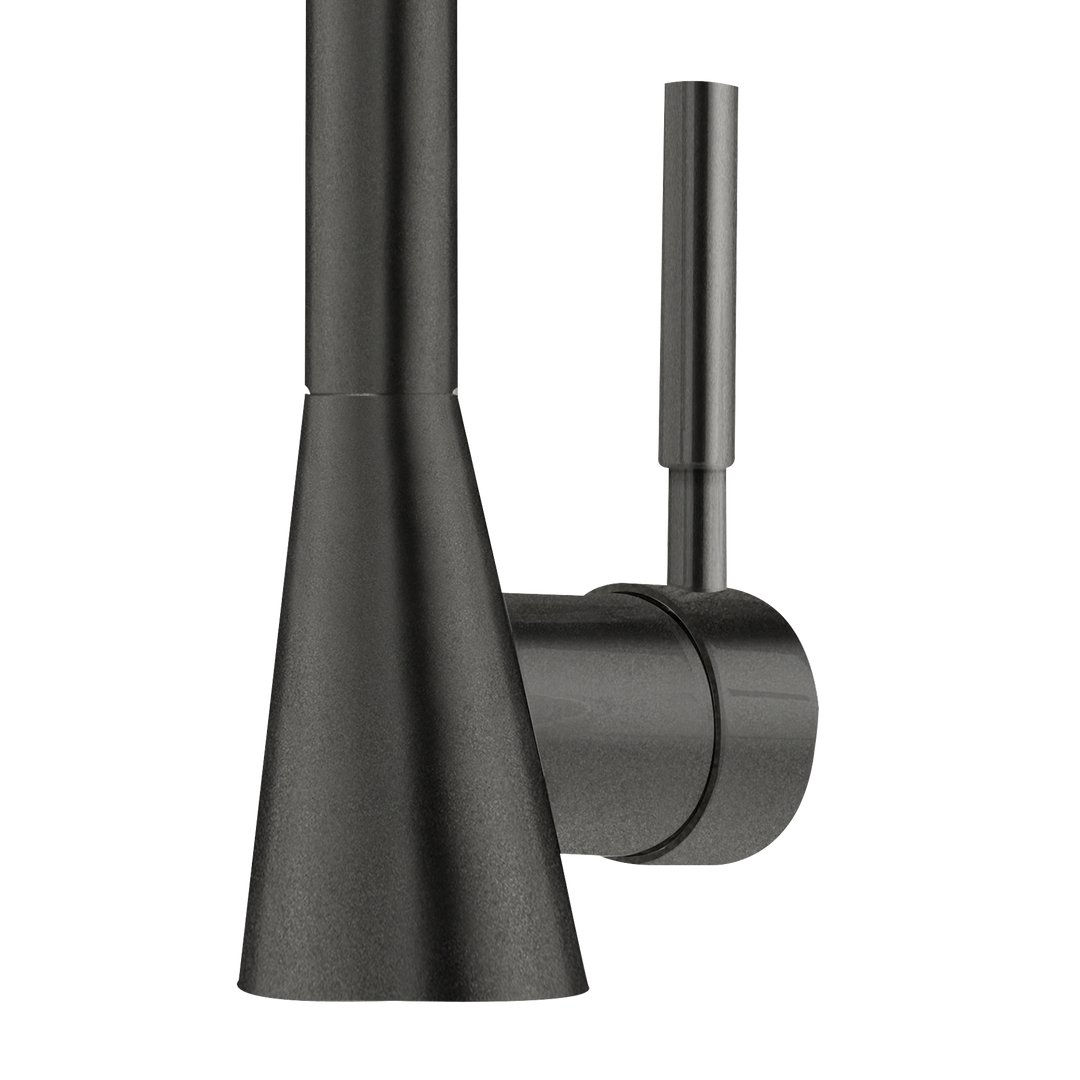

The Series Design vivana
Flowing lines and exclusive finishes lend the vivana range a new dimension to personalised kitchen design. The tall, gently curved spout and the slender silhouette retain their natural aesthetic appeal, yet gain additional depth in terms of material texture and expression through the finishing process. The result is kitchen mixers with exclusive finishes that not only complement modern kitchens functionally, but also make a distinct design statement. The vivana design collection combines precision craftsmanship, reliable performance and individuality to create a solution for discerning kitchens.
Related products
Technical information
Product features
- MF62803-00080
- Heinrich Schulte Manufacture
- Kitchen mixer
- vivana
- grey_line
- reach 175 mm
- height to aerator 180 mm
- maximum height 330 mm
- cartridge 35 mm
- with hot water limiter
- spout swivelling and extractable
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator flow rate class A
- single hole mounted
- with metal shower hose
- lateral control
- protected against backflow
- with shaft screw connection
Dimensional drawing

Delivery and installation
The following components are included in the scope of delivery
- Monolever-Kitchen mixer
- Shaft screw connection kit
- Lead weight
- Check valve
- Assembly instruction
- Care instruction
Spare parts
Exploded view

Spare parts
| Position | Description | Item Number |
|---|---|---|
| 2 | SH ANSCHLAGSCHRAUBE | Z000235-00000 |
| 3 | SH KARTUSCHE FÜR NORMALDRUCK | Z009200-00000 |
| 4 | SH VERSCHRAUBUNG | Z009111-00000 |
| 6 | SH BEDIENUNGSHEBEL VIVANA | MF62990-00080 |
| 7 | SH GEWEBESCHLAUCH | Z028811-00010 |
| 10 | SH LUFTSPRUDLER | MF13946-00080 |
| 12 | SH FLEXSCHLAUCH M8 X 1 - M15 X 1 | Z009074-00000 |
| 13 | SH FLEXSCHLAUCH M8 X 1 - 3/8" | Z009075-00000 |
| 14 | SH SCHAFTVERSCHRAUBUNG M34 X 1,5 | Z009196-00000 |
| 15 | SH RÜCKFLUSSVERHINDERER M15X1 | Z028914-00000 |
| 16 | SH BLEIGEWICHT | Z000287-00000 |
