Wash basin mixer
Product description

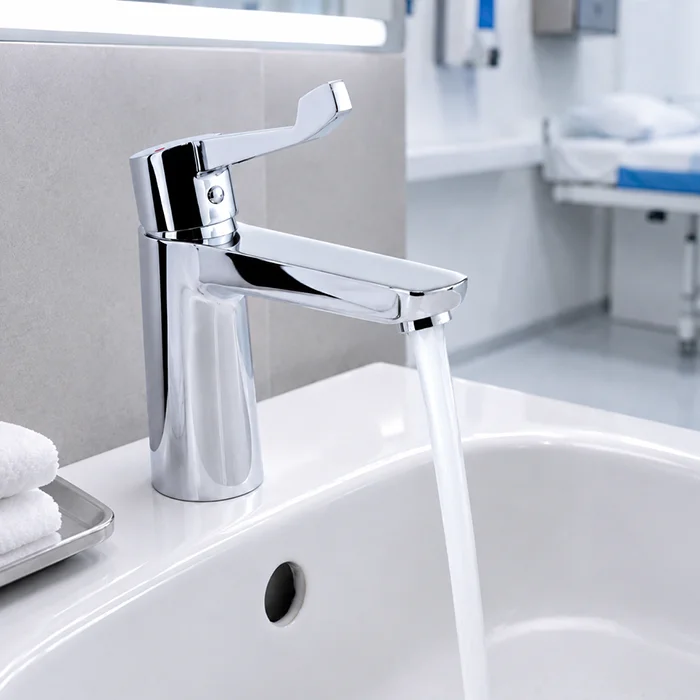

Der schlanke Körper der alpha_300 verbindet sich exzellent mit dem geometrisch geformten und horizontal ausgerichteten Auslauf zu einer eleganten und hochwertigen Waschtischarmatur. Die brillante Chromoberfläche unterstreicht wirkungsvoll die Schönheit dieser Armatur. Leicht beweglich und ergonomisch sensibel abgestimmt, schließt der im Übergang markant gestaltete Hebel die Armatur formvollendet ab. Zur Steuerung der Ablaufgarnitur integriert sich im hinteren Bereich dezent die leichtgängige Zugstange, die durch ihre Form auch mit nassen Händen bequem und sicher zu bedienen ist.The Series alpha_300 Care
For applications with specific requirements, the alpha_300 Care expands the design universe of the alpha_300 with functional features tailored to the healthcare sector. The clean, understated design language of the standard range is retained and is effectively complemented by longer levers and laminar flow aerators. The result is mixers that promote ease of use, hygiene and reliable performance in settings where everyday safety and practical handling are particularly important. The alpha_300 Care combines design clarity with a design tailored to medical, care and accessibility-focused applications.
Technical information
Product features
- Z059002-96010
- Heinrich Schulte
- Wash basin mixer
- chrome
- reach 105 mm
- height to aerator 75 mm
- maximum height 190 mm
- open cartridge 35 mm
- with hot water and flow rate limiter
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator laminar
- DIN DVGW
- noise level test mark PA-IX 7198/IO
- single hole mounted
- for elbow lever action
- with reinforced cartridge screw connection
- with pop-up waste 1 1/4"
- with mounting kit

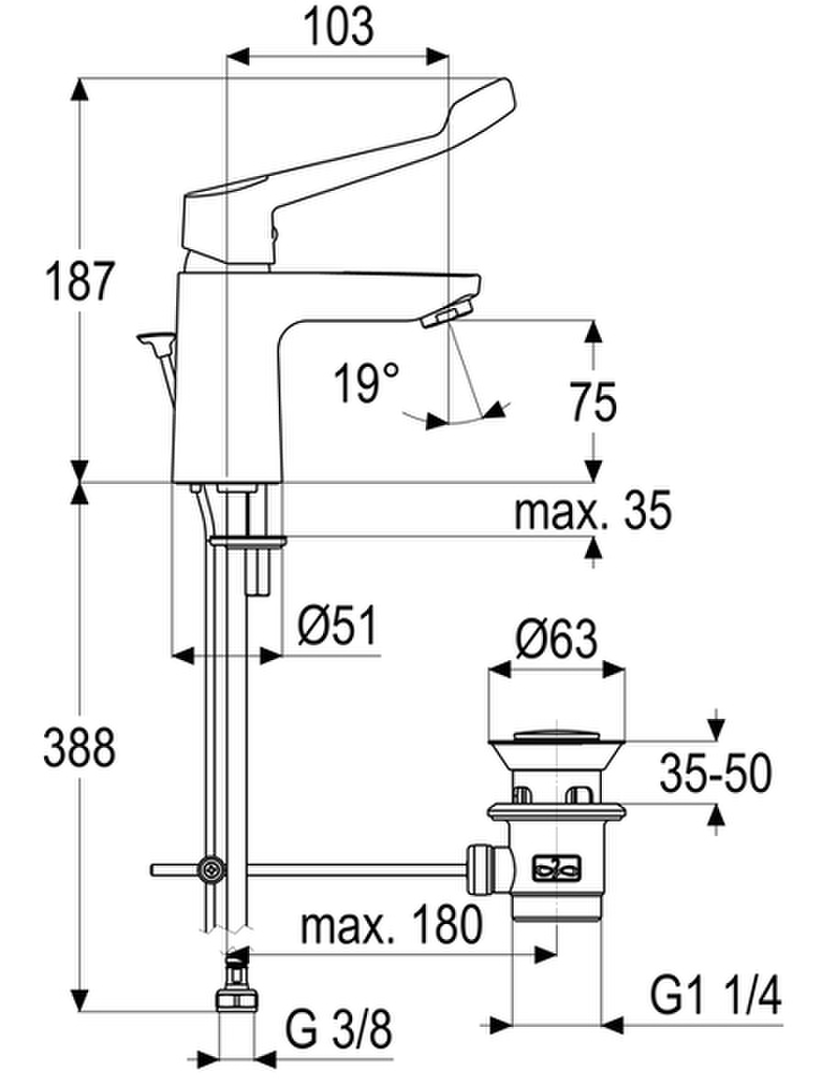

Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Wash basin mixer
- Mounting kit
- Pop-up waste with pull rod
- Assembly instruction
- Care instruction
- Certificate
Spare parts

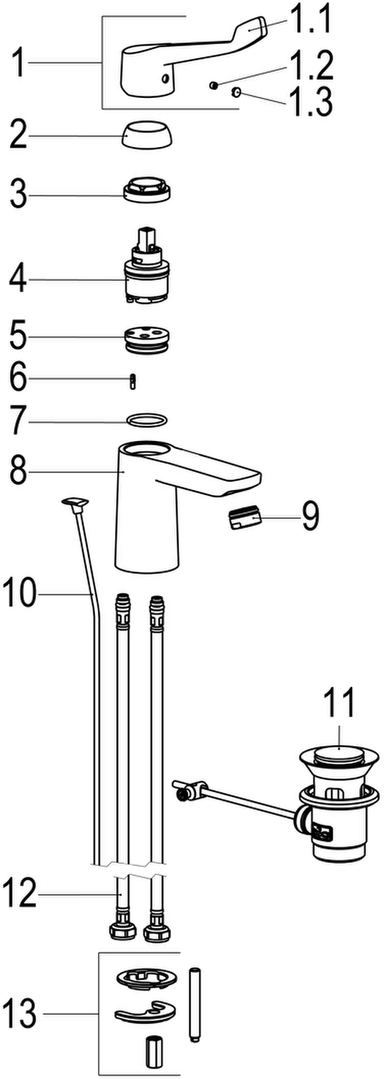

Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH BEDIENUNGSHEBEL CARE | Z009919-30010 |
| 2 | SH ROSETTE M37 X 1,5 / D:39,7X12 | Z009110-00010 |
| 3 | SH VERSCHRAUBUNG | Z009111-00000 |
| 4 | SH KARTUSCHE FÜR NORMALDRUCK | Z009203-00001 |
| 9 | SH LAMINARSTRAHLREGLER | Z013906-00010 |
| 10 | SH ZUGSTANGE MIT KNOPF | Z009187-00010 |
| 11 | SH ABLAUFGARNITUR KOMPLETT | Z001128-00010 |
| 12 | SH FLEXSCHLAUCH M10 X 1 - 3/8" | Z009141-00000 |
| 13 | SH BEFESTIGUNGSSATZ M8 x 57MM | Z000616-00000 |
