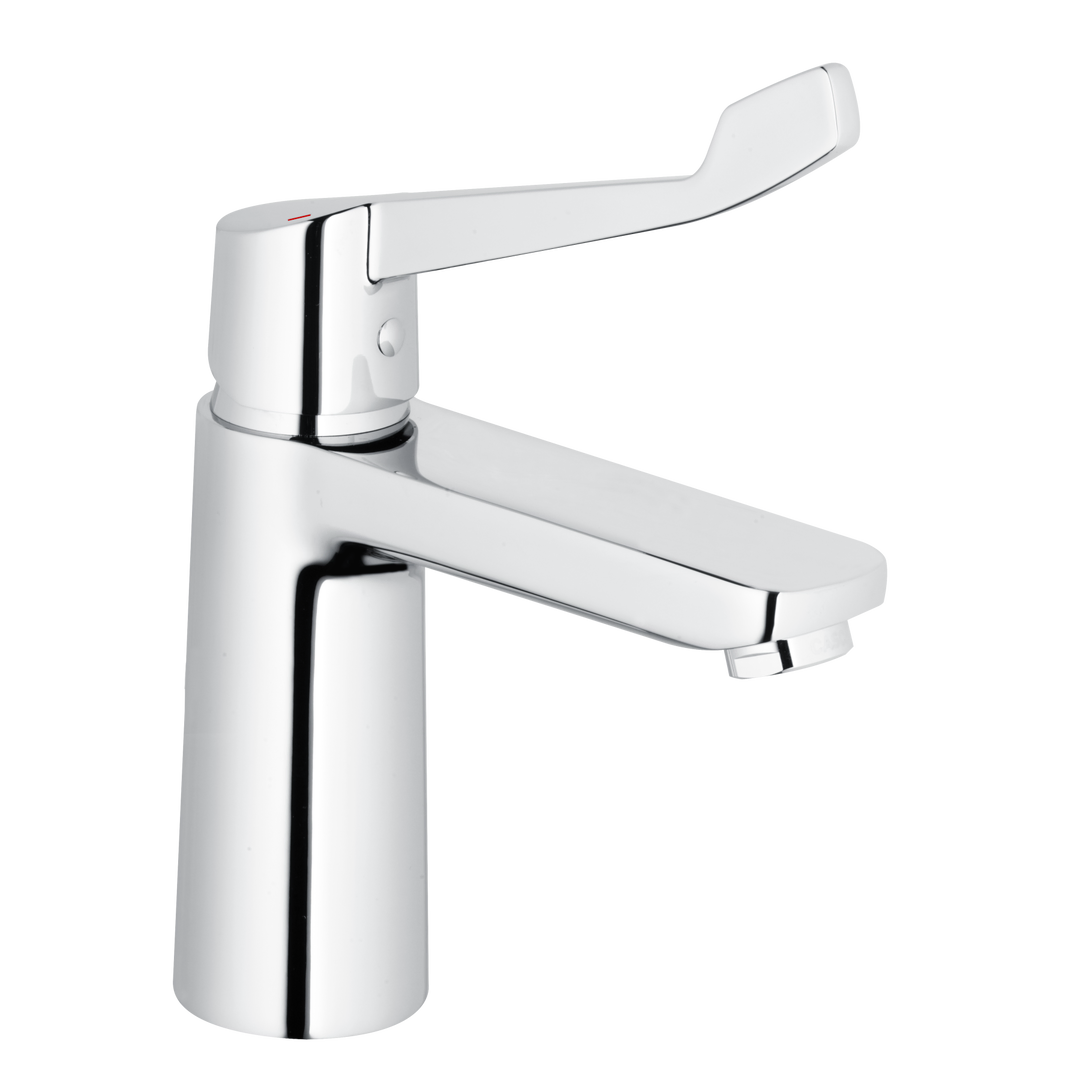

Wash basin mixer XL
Product description
Der schlanke Körper der alpha_300 verbindet sich exzellent mit dem geometrisch geformten und horizontal ausgerichteten Auslauf zu einer eleganten und hochwertigen Waschtischarmatur. Die brillante Chromoberfläche unterstreicht wirkungsvoll die Schönheit dieser Armatur. Leicht beweglich und ergonomisch sensibel abgestimmt, schließt der im Übergang markant gestaltete Hebel die Armatur formvollendet ab.The Series alpha_300 Care
For applications with specific requirements, the alpha_300 Care expands the design universe of the alpha_300 with functional features tailored to the healthcare sector. The clean, understated design language of the standard range is retained and is effectively complemented by longer levers and laminar flow aerators. The result is mixers that promote ease of use, hygiene and reliable performance in settings where everyday safety and practical handling are particularly important. The alpha_300 Care combines design clarity with a design tailored to medical, care and accessibility-focused applications.
Technical information
Product features
- Z059101-96010
- Heinrich Schulte
- Wash basin mixer XL
- chrome
- reach 120 mm
- height to aerator 95 mm
- maximum height 205 mm
- open cartridge 35 mm
- with hot water and flow rate limiter
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator laminar
- DIN DVGW
- noise level test mark PA-IX 7198/IO
- single hole mounted
- for elbow lever action
- with reinforced cartridge screw connection
- without pop-up waste
- with mounting kit
Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Wash basin mixer
- Mounting kit
- Assembly instruction
- Care instruction
- Certificate
Spare parts
Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH BEDIENUNGSHEBEL CARE | Z009919-30010 |
| 2 | SH ROSETTE M37 X 1,5 / D:39,7X12 | Z009110-00010 |
| 3 | SH VERSCHRAUBUNG | Z009111-00000 |
| 4 | SH KARTUSCHE FÜR NORMALDRUCK | Z009203-00001 |
| 9 | SH LAMINARSTRAHLREGLER | Z013906-00010 |
| 10 | SH FLEXSCHLAUCH M10 X 1 - 3/8" | Z009141-00000 |
| 11 | SH BEFESTIGUNGSSATZ M8 x 57MM | Z000616-00000 |
