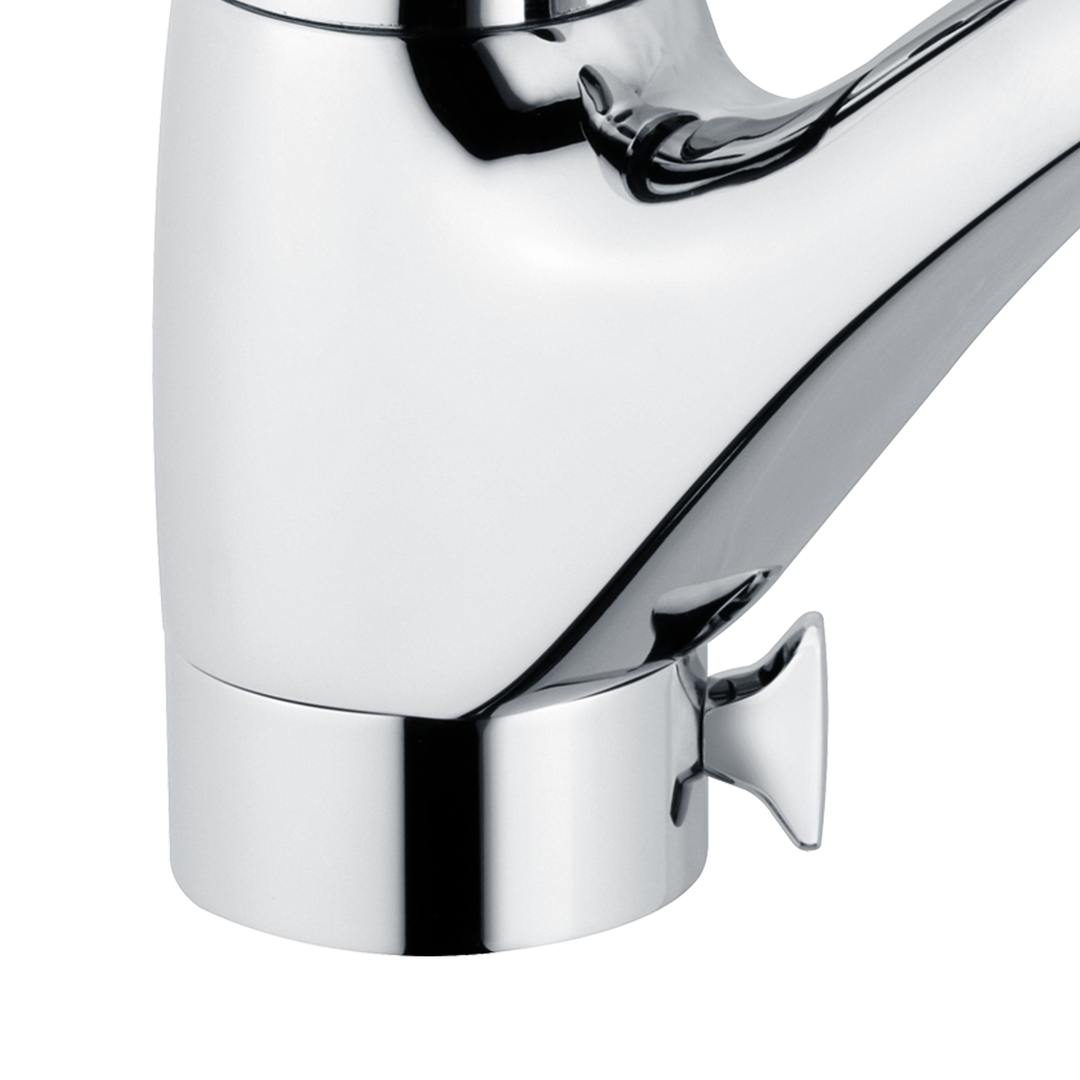

xena Kitchen mixer for below window mounted
The Series xena
The xena line combines soft, flowing lines with a balanced, timeless design. Its gently rounded contours lend the tap a calm presence and create a pleasant, familiar feel at the washbasin. Precise proportions, ease of use and a design that blends harmoniously into a variety of bathroom schemes make xena a reliable solution for everyday use. It embodies functional clarity, durability and an understated sense of quality that stands the test of time.
Technical information
Product features
- Z068822-00010
- Heinrich Schulte
- Kitchen mixer
- xena
- chrome
- reach 205 mm
- height to aerator 80 mm
- maximum height 160 mm
- cartridge 44 mm
- with hot water and flow rate limiter
- spout swivelling
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator flow rate class A
- below window mounted
- with shaft screw connection
Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Kitchen mixer
- Shaft screw connection kit
- Assembly instruction
- Care instruction
Spare parts
Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH BEDIENHEBEL | Z009268-00010 |
| 2 | SH ROSETTE M48 X 1 | Z009076-00010 |
| 3 | SH VERSCHRAUBUNG F. SCHRAUBKAPPE | Z009078-00000 |
| 4 | SH KARTUSCHE FÜR NORMALDRUCK | Z000070-00000 |
| 6 | SH ANSCHLAGSCHRAUBE | Z000235-00000 |
| 7 | SH LUFTSPRUDLER KTW-W270 | Z013904-00010 |
| 8 | SH DICHTUNGSSATZ F.44ER KARTUSCHE | Z001811-00000 |
| 13 | SH FLEXSCHLAUCH M10 X 1 - 3/8" | Z009095-00000 |
| 14 | SH SCHAFTVERSCHRAUBUNG M34 X 1,5 | Z009196-00000 |
