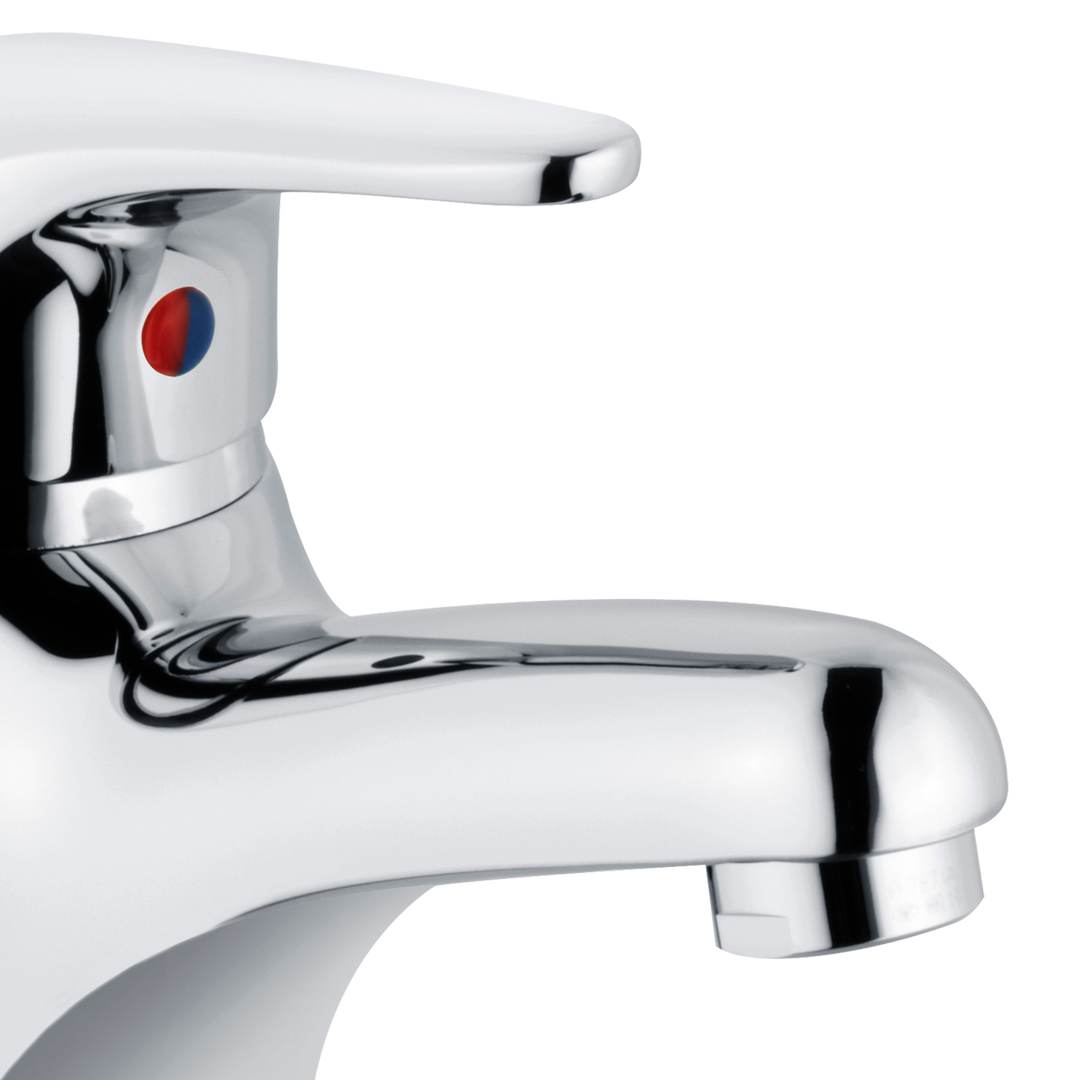

xena Wash basin mixer low pressure with pop-up waste
The Series xena_studio_line
The xena_studio_line combines soft, flowing lines with a balanced, timeless design. Its gently rounded contours lend the tap a calm presence and create a pleasant, familiar feel at the washbasin. Precise proportions, ease of use and a design that blends harmoniously into a variety of bathroom schemes make xena a reliable solution for everyday use. It embodies functional clarity, durability and an understated sense of quality that stands the test of time.
Related products
Technical information
Product features
- Z068165-00010
- Heinrich Schulte
- Wash basin mixer low pressure
- xena
- chrome
- reach 115 mm
- height to aerator 50 mm
- maximum height 120 mm
- cartridge 44 mm
- with hot water and flow rate limiter
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator low pressure
- single hole mounted
- for unpressurized water heaters
- with pop-up waste 1 1/4"
- with mounting kit
- with flow rate limiter 5 l/min

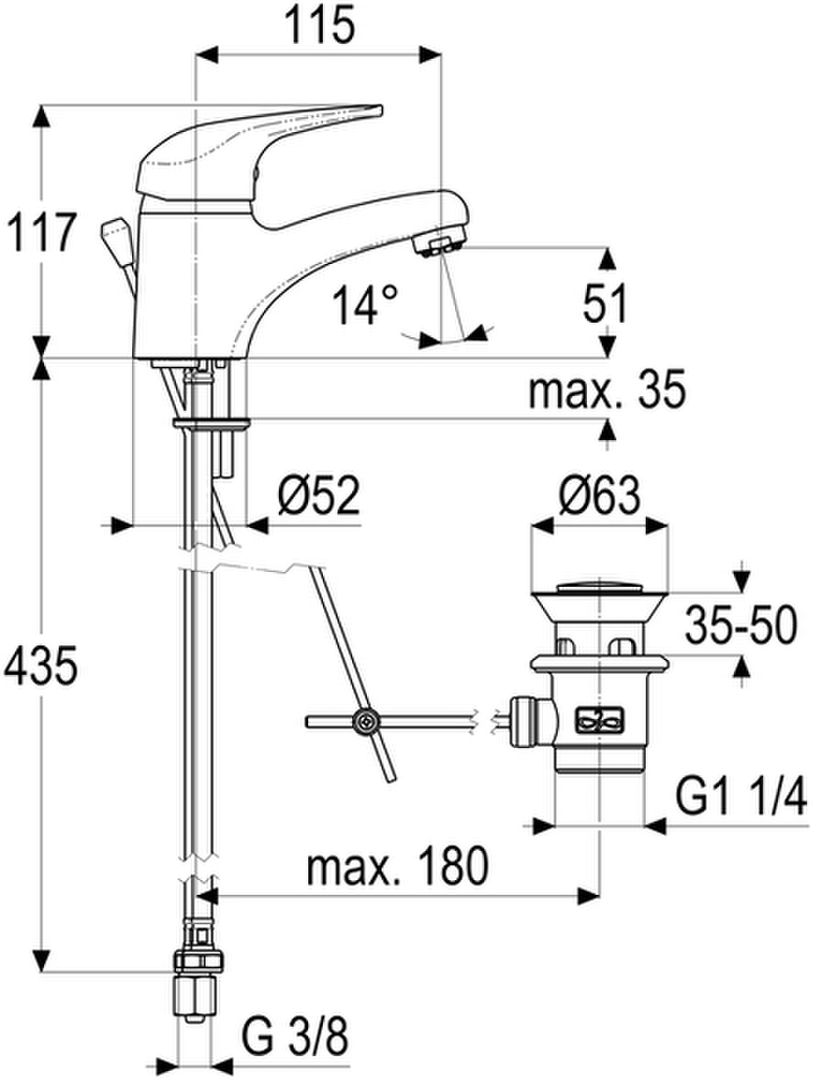

Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Wash basin mixer
- Mounting kit
- Pop-up waste with pull rod
- Flow rate limiter
- Assembly instruction
Spare parts

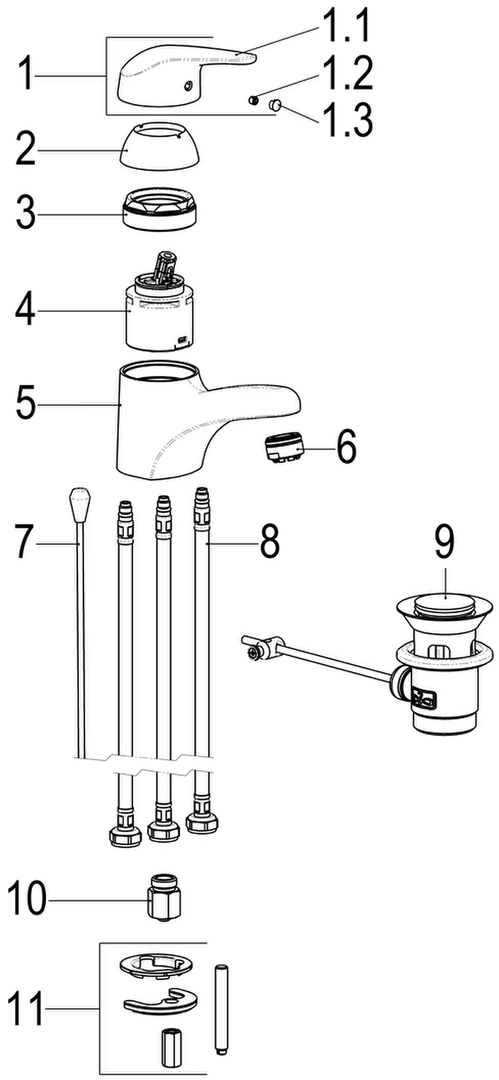

Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH BEDIENHEBEL | Z009268-00010 |
| 2 | SH ROSETTE M48 X 1 | Z009076-00010 |
| 3 | SH VERSCHRAUBUNG F. SCHRAUBKAPPE | Z009078-00000 |
| 4 | SH KARTUSCHE FÜR NORMALDRUCK | Z000070-00000 |
| 6 | SH STRAHLREGLER ND | Z013924-00010 |
| 7 | SH FLEXSCHLAUCH M8 X 1 - 3/8" | Z009075-00000 |
| 8 | SH ZUGSTANGE MIT KNOPF | Z009184-00010 |
| 9 | SH ABLAUFGARNITUR KOMPLETT | Z001128-00010 |
| 10 | SH DURCHFLUSSBEGRENZER 3/8" | Z019389-00000 |
| 11 | SH BEFESTIGUNGSSATZ M8 x 57MM | Z000616-00000 |
