alpha_400 Finishing set shower mixer for Tec-box

alpha_400 Finishing set shower mixer for Tec-box
alpha_400 Finishing set shower mixer for Tec-box - Image 2
alpha_400 Finishing set shower mixer for Tec-box - Image 3
SKU: Z069697-00010 Categories: , ,
Surface: chrome

Product description

Pur und exquisit ist diese Brausearmatur durchgestylt. Präzise architektonische Linienführung schafft mit klarer Funktionstransparenz unaufdringliche Eleganz. Mit aufwändig aufgebrachtem hochwertigem Chrom werden die formal bedeutungsvollen Oberflächen wirkungsvoll in Szene gesetzt. Der selbstbewusste und elegante Hebel ist parallel zur Wand vertikal ausgerichtet und schafft damit höchsten Komfort bei freibleibendem Bewegungsraum im Duschbereich. Die sanft gerundeten Ecken der elegant geformten quadratischen Wandrosette bewirken einen harmonischen Übergang zu unterschiedlichsten Wandgestaltungen.
Technical informationDelivery and installationSpare parts

The Series alpha_400

The alpha_400 strikes a harmonious, high-quality balance between architectural lines and precisely defined surfaces. Its deliberately minimalist design language appears clear and confident without losing any of its presence, and blends naturally into sophisticated bathroom concepts. It is precisely this that allows the range to make a distinctive statement within the room. Technical precision, long-lasting quality and a design that remains relevant over time make alpha_400 a reliable solution for modern bathrooms.



Discover the line

Related products

gamma_400 Grab bar
gamma_400 Grab bar
ascona_1 Conc. body Tec-box 1/2"
ascona_1 Conc. body Tec-box 1/2"
gamma_400 Corner shower basket with inlet
gamma_400 Corner shower basket with inlet
gamma_400 Shower basket with inlet and shower wiper
gamma_400 Shower basket with inlet and shower wiper

Technical information

Product features

  • Z069697-00010
  • Heinrich Schulte
  • Finishing set shower mixer
  • alpha_400
  • chrome
  • diameter cover plates 180 mm
  • cartridge 44 mm
  • with hot water and flow rate limiter
  • materials in accordance with German Drinking Water Regulations and FEA
  • lever metal
  • mounting with Tec-box
  • with installation depth compensation
  • control body +/- 18 degree adjustable
  • protected against backflow
  • optional accessories with anti vacuum device

Dimensional drawing

Maßzeichnungen

Product data

Download product data sheetDownload product data sheet
Download flow chartDownload flow chart
Download dimensional drawingDownload dimensional drawing
Download exploded viewDownload exploded view

Certificate

Sustainability CertificateSustainability Certificate

Delivery and installation

The following components are included in the scope of delivery

  • Conc. Monolever-Shower mixer
  • Rosette
  • Lever
  • Screw set
  • Assembly instruction
Download installation instructionsDownload installation instructions
Download care instructionsDownload care instructions

Spare parts

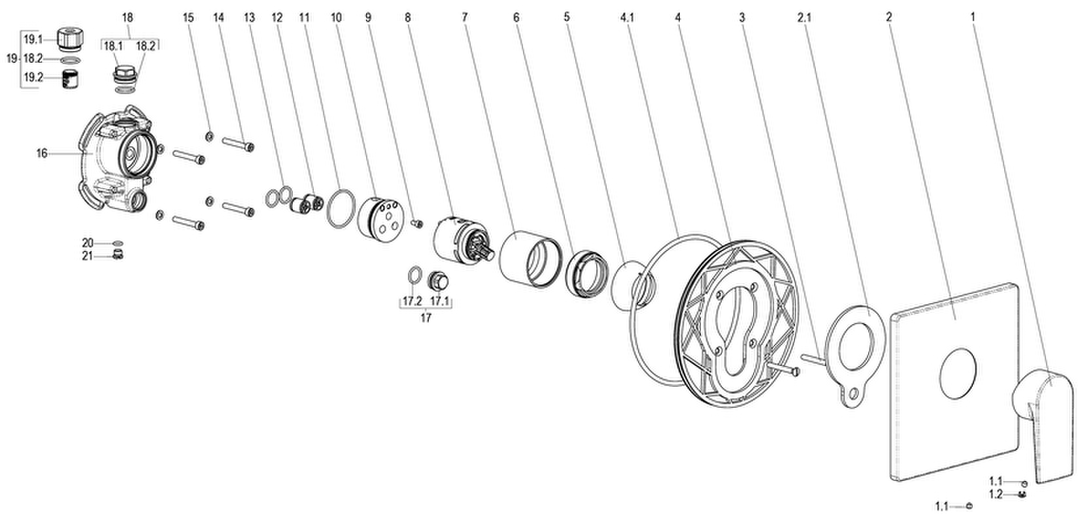

Exploded view

Explosionszeichnung

Spare parts

Position Description Item Number
1 SH BEDIENUNGSHEBEL ALPHA_400 Z069991-00010
2 SH ROSETTE FÜR UP BRAUSEARMATUR Z069697-50011
3 SH SENKKOPFSCHRAUBE M5 x 40 Z000073-00000
5 SH ROSETTE M48 X 1 Z009076-00010
6 SH VERSCHRAUBUNG F. SCHRAUBKAPPE Z009078-00000
8 SH KARTUSCHE FÜR NORMALDRUCK Z000070-00000
12 SH RÜCKFLUSSVERHINDERER PATRONE Z028910-00000
19 SH ROHRBELÜFTER FÜR TEC-BOX Z028900-00000
