ascona_1 Conc. body Tec-box 1/2″

SKU: Z051485-00000 Categories: , ,

The Series ascona_1

Dynamism and organic design come together in a unique way in the ascona_1 line by heinrichschulte. The rising spout and the control lever that sweeps upwards in parallel give the mixers in this line a dynamic, characterful design language that exudes individuality whilst blending harmoniously into a variety of interior concepts. Refined from classic design features, ascona_1 feels both familiar and distinctive. Its lively lines and meticulous attention to detail make it a series that stylishly complements both modern and classic bathrooms.

Discover the line

Technical information

Product features

  • Z051485-00000
  • Heinrich Schulte
  • Conc. body Tec-box 1/2"
  • ascona_1
  • thread connection 1/2"

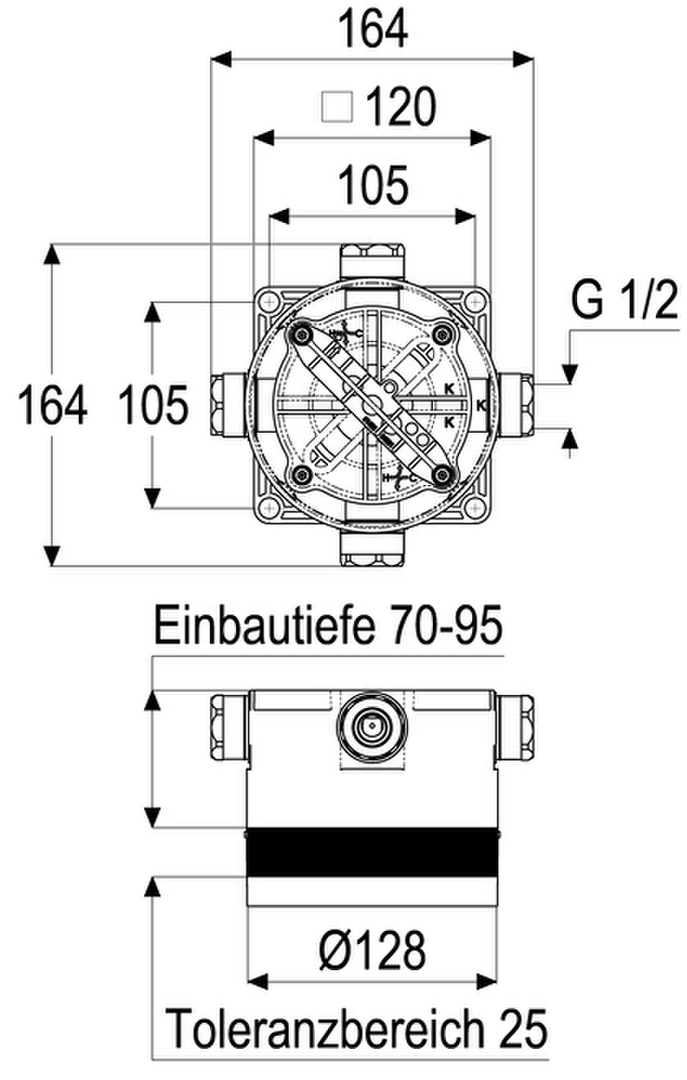

  • installation depth 70-95 mm
  • materials in accordance with German Drinking Water Regulations and FEA
  • suitable for conc. bath and shower mixer
  • single lever mixers and thermostats
  • with flushing and hydraulic test device
  • sealing collar and noise isolation
  • with distance frame
  • optional accessories with spacer sleeves for rear panel installation

Delivery and installation

The following components are included in the scope of delivery

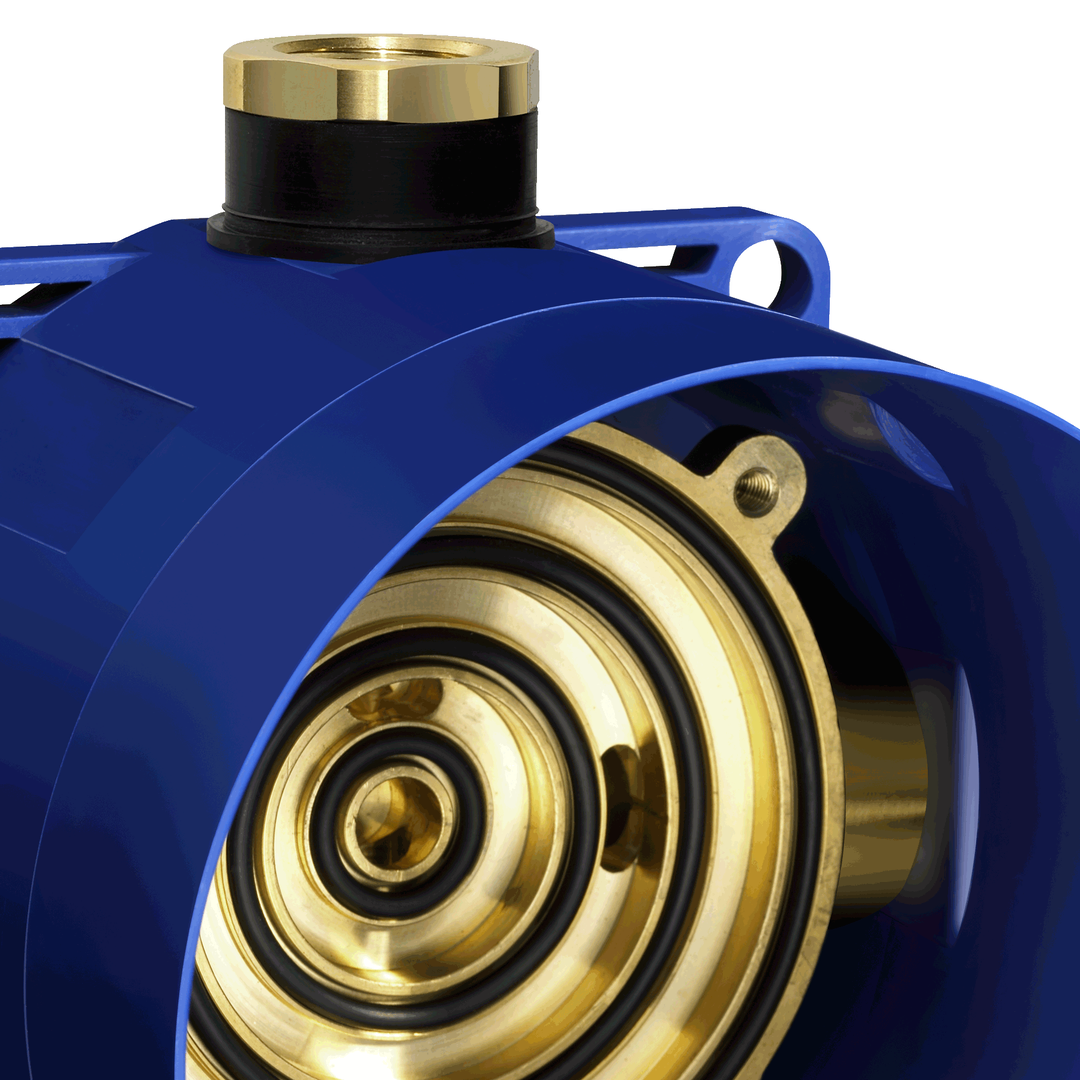

  • Conc. base body
  • Sealing collar
  • Seal kit
  • Distance frame
  • Connection set
  • Flushing and hydraulic test device
  • Screw set
  • Assembly instruction

Spare parts

Exploded view

Explosionszeichnung

Spare parts

Position Description Item Number
10 SH DICHTUNGSSATZ Z001813-00000
