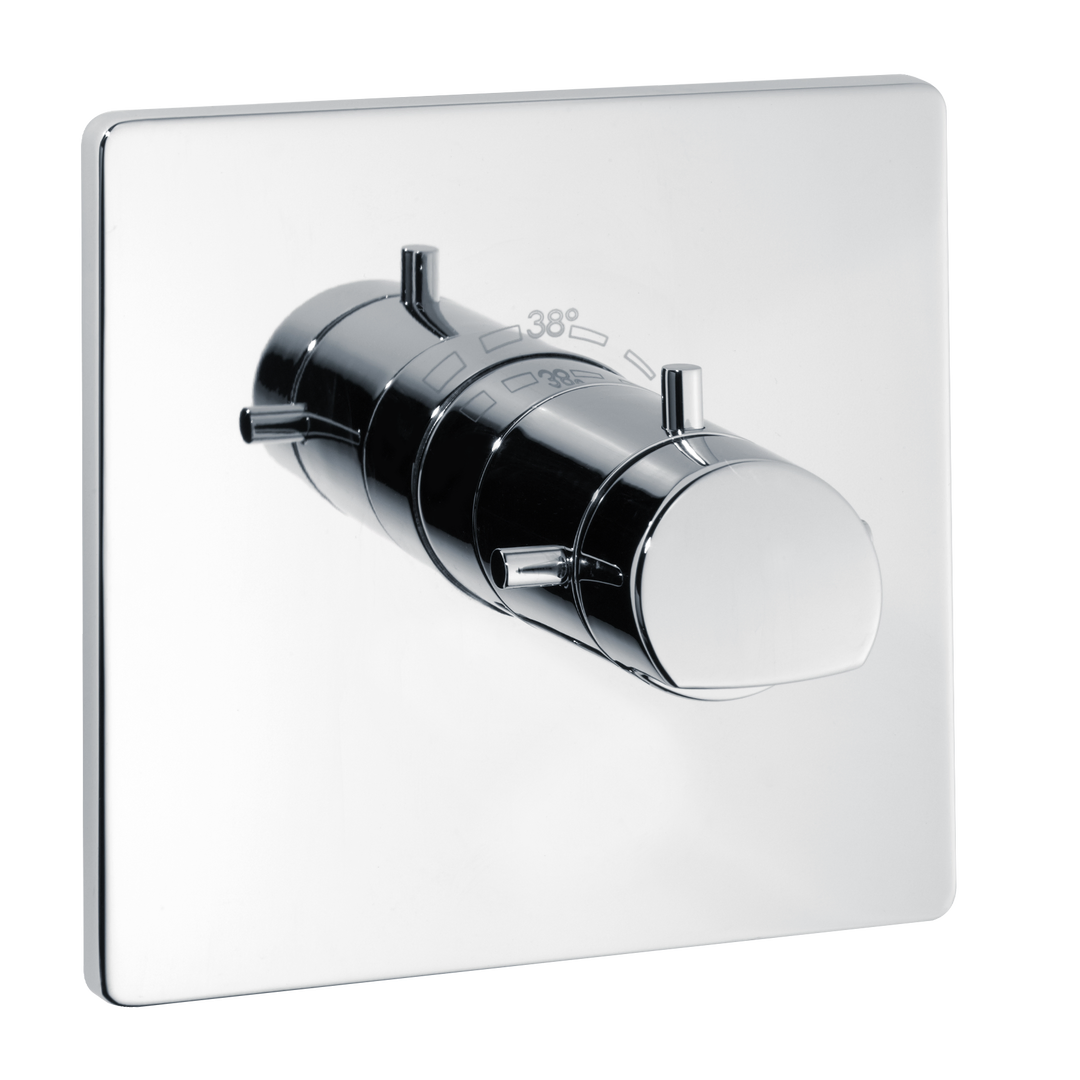

alpha_400 Finishing set thermostatic shower mixer for Tec-box

alpha_400 Finishing set thermostatic shower mixer for Tec-box

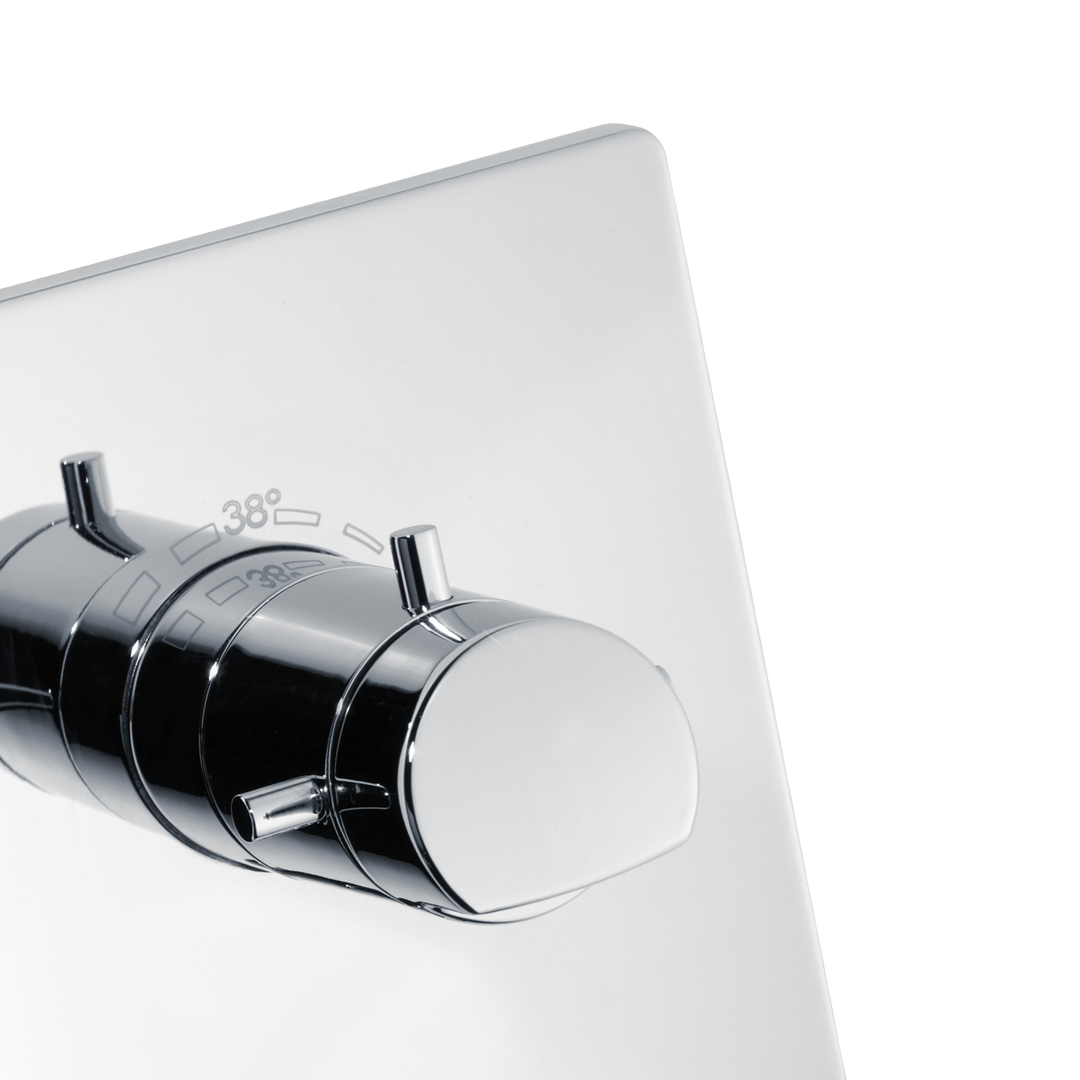

alpha_400 Finishing set thermostatic shower mixer for Tec-box - Image 2
SKU: Z069691-00010 Categories: , ,
Surface: chrome

Product description

Diese Thermostatarmatur bietet ein Höchstmaß an Komfort. In einem zweigeteilten zylindrischen Element sind Mengenregler und Thermostatsteuerung untergebracht. Kleine ebenfalls zylinderförmige Indikatoren visualisieren die gewählte Einstellung und schaffen eine rutschsichere Bedienung auch mit nassen Händen. Wirkungsvoll unterstreicht die glanzvolle Chromoberfläche die zeitlose Eleganz dieses Funktionselements. Die sanft gerundeten Ecken der elegant geformten quadratischen Wandrosette bewirken einen harmonischen Übergang zu unterschiedlichsten Wandgestaltungen.
Technical informationDelivery and installationSpare parts

The Series alpha_400

The alpha_400 strikes a harmonious, high-quality balance between architectural lines and precisely defined surfaces. Its deliberately minimalist design language appears clear and confident without losing any of its presence, and blends naturally into sophisticated bathroom concepts. It is precisely this that allows the range to make a distinctive statement within the room. Technical precision, long-lasting quality and a design that remains relevant over time make alpha_400 a reliable solution for modern bathrooms.



Discover the line

Related products

ascona_1 Conc. body Tec-box 1/2"
ascona_1 Conc. body Tec-box 1/2"
gamma_400 Corner shower basket with inlet
gamma_400 Corner shower basket with inlet
gamma_400 Shower basket with inlet and shower wiper
gamma_400 Shower basket with inlet and shower wiper
alpha-style_600 Finishing set shower mixer for Tec-box
alpha-style_600 Finishing set shower mixer for Tec-box

Technical information

Product features

  • Z069691-00010
  • Heinrich Schulte
  • Finishing set thermostatic shower mixer
  • alpha_400
  • chrome
  • diameter cover plates 180 mm
  • coaxial thermo element
  • materials in accordance with German Drinking Water Regulations and FEA
  • mounting with Tec-box
  • with installation depth compensation
  • control body +/- 18 degree adjustable
  • protected against backflow
  • with hot water safety stop at 38 degree
  • optional accessories with anti vacuum device

Dimensional drawing

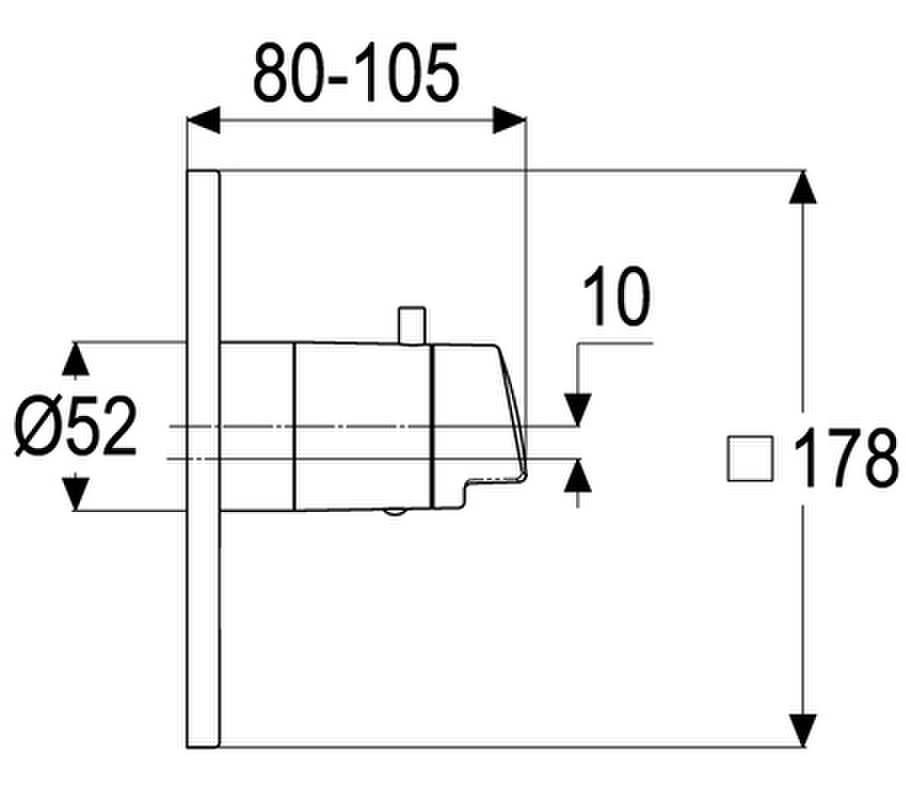

Maßzeichnungen

Product data

Download product data sheetDownload product data sheet

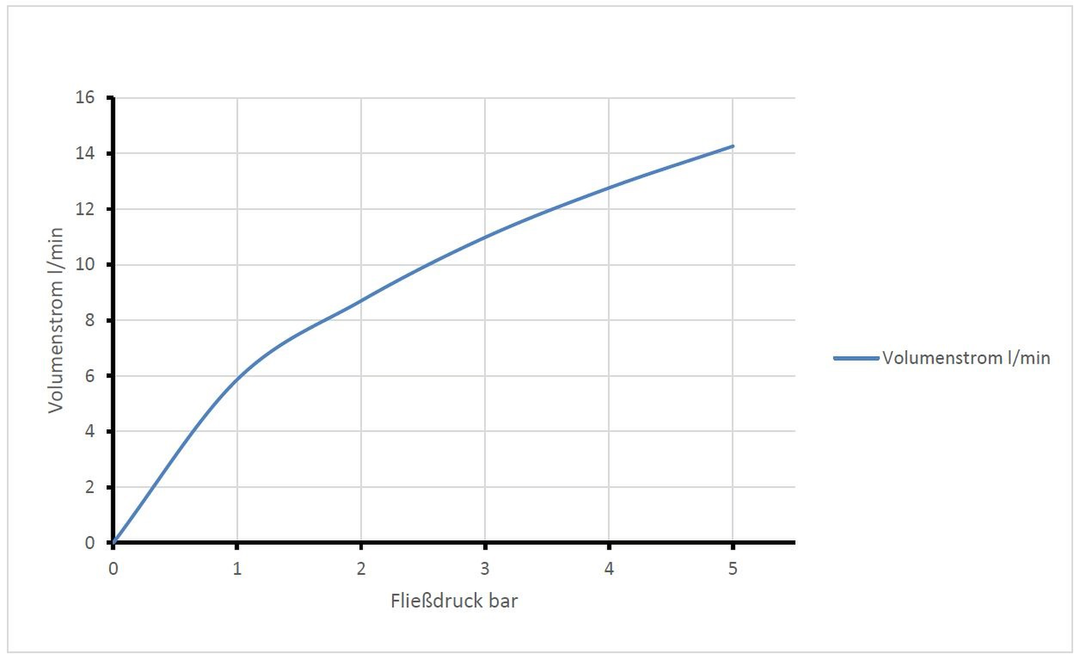

Download flow chartDownload flow chart
Download dimensional drawingDownload dimensional drawing
Download exploded viewDownload exploded view

Certificate

Sustainability CertificateSustainability Certificate

Delivery and installation

The following components are included in the scope of delivery

  • Conc. thermostatic shower mixer
  • Rosette
  • Screw set
  • Handle
  • Assembly instruction
Download installation instructionsDownload installation instructions
Download care instructionsDownload care instructions

Spare parts

Exploded view

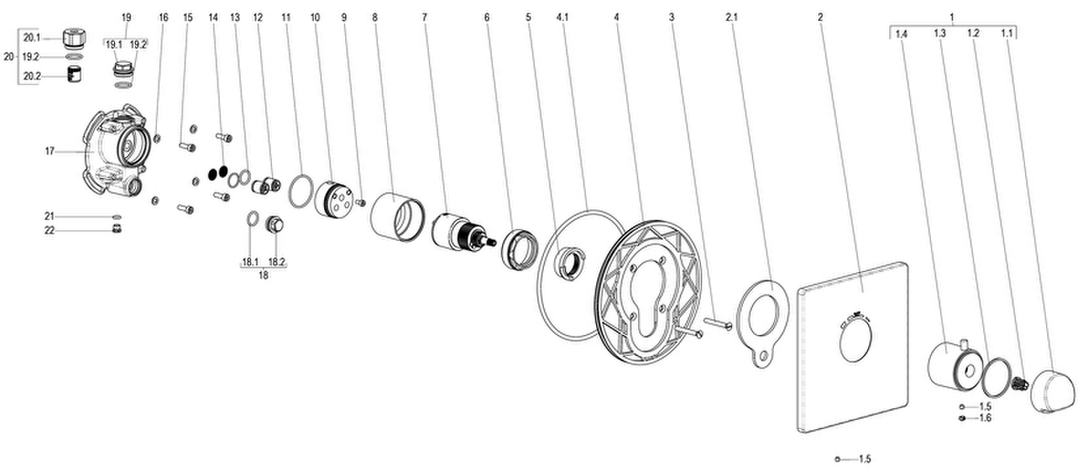

Explosionszeichnung

Spare parts

Position Description Item Number
1 SH BEDIENUNGSGRIFF UP THERMOSTAT Z069998-00010
3 SH SENKKOPFSCHRAUBE M5 x 40 Z000073-00000
6 SH VERSCHRAUBUNG F. SCHRAUBKAPPE Z009078-00000
7 SH KOAXIALE THERMOSTATKARTUSCHE Z009220-00000
12 SH RÜCKFLUSSVERHINDERER PATRONE Z028910-00000
20 SH ROHRBELÜFTER FÜR TEC-BOX Z028900-00000
