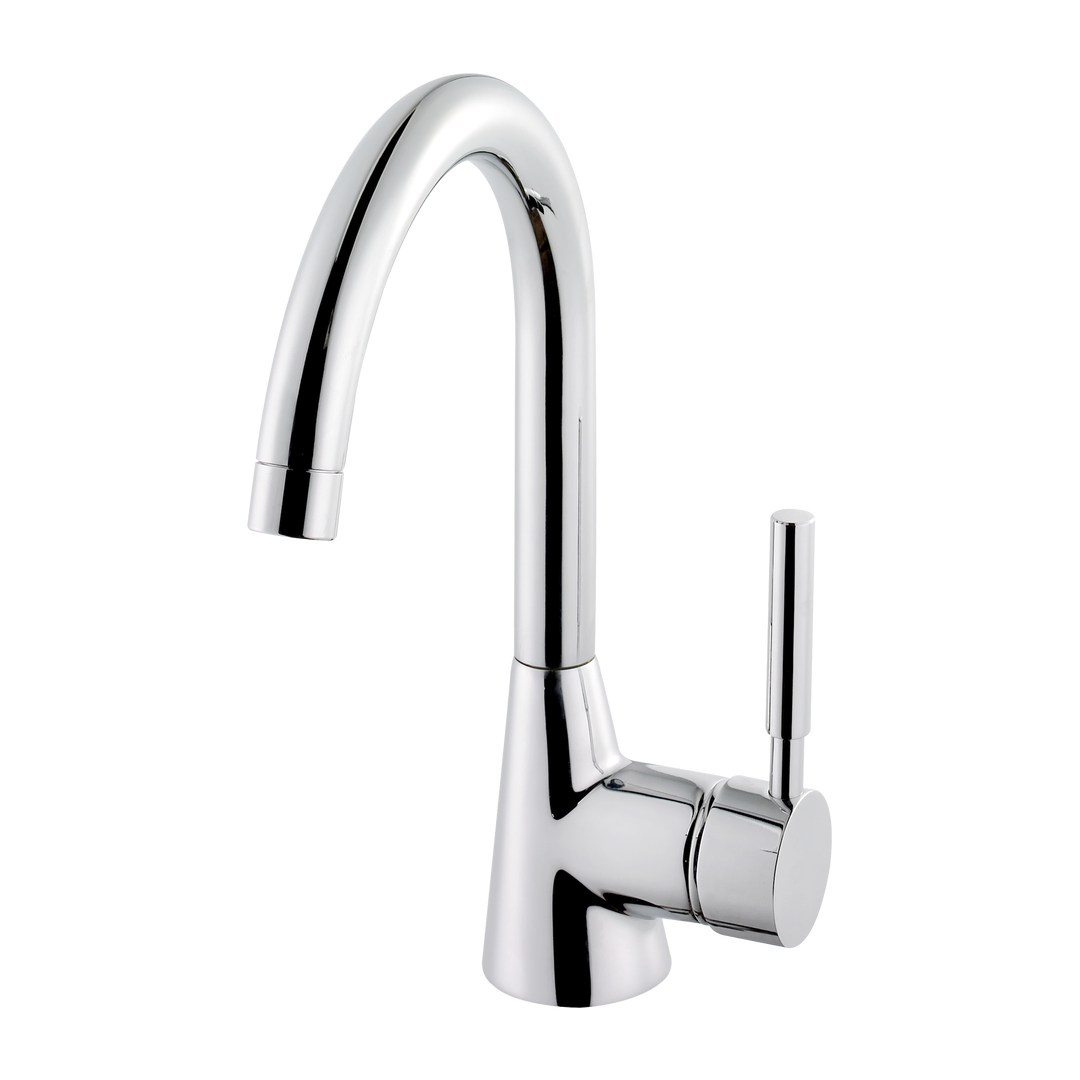

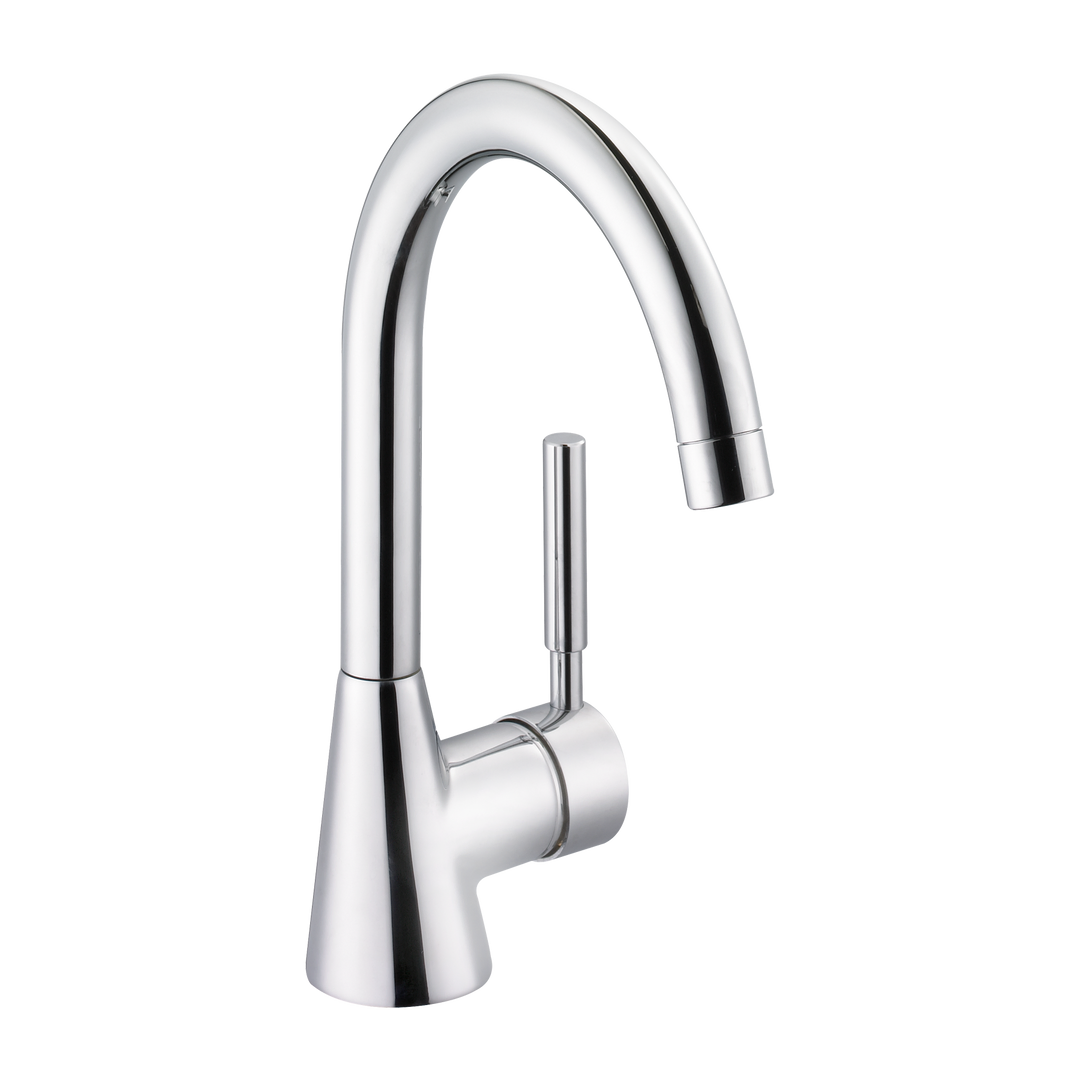

vivana Kitchen mixer low pressure for below window mounted
The Series vivana
Clean elegance and flowing lines define the appearance of the vivana by heinrichschulte. The tall, gently curved spout and the sleek silhouette lend the tap a calm, confident presence that complements modern kitchens to great effect. It attracts the eye not through ostentation, but through balanced proportions and an effortless beauty of form. Precise craftsmanship, reliable performance and a design with lasting appeal make this kitchen tap the ideal solution for spaces where clarity and quality come together convincingly.
Technical information
Product features
- Z062838-00010
- Heinrich Schulte
- Kitchen mixer low pressure
- vivana
- chrome
- reach 180 mm
- height to aerator 190 mm
- maximum height 280 mm
- cartridge 35 mm
- with hot water and flow rate limiter
- spout swivelling
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator low pressure
- below window mounted
- for unpressurized water heaters
- lateral control
- with shaft screw connection
- with flow rate limiter 5 l/min
Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Kitchen mixer
- Shaft screw connection kit
- Flow rate limiter
- Assembly instruction
- Care instruction
Spare parts
Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH AUSLAUF FÜR EHM KÜCHENARMATUR | Z013069-00010 |
| 2 | SH ANSCHLAGSCHRAUBE | Z000235-00000 |
| 3 | SH KARTUSCHE FÜR HOCH-/NIEDERDUCK | Z000074-00000 |
| 5 | SH ROSETTE M37 X 1,5 / D:39,7X12 | Z009110-00010 |
| 6 | SH BEDIENUNGSHEBEL | Z000987-00010 |
| 9 | SH ANSCHLUSSSCHLAUCH | Z009102-00010 |
| 10 | SH DURCHFLUSSBEGRENZER 3/8" | Z019389-00000 |
| 13 | SH SCHAFTVERSCHRAUBUNG M34 X 1,5 | Z009196-00000 |
