The Series vivana

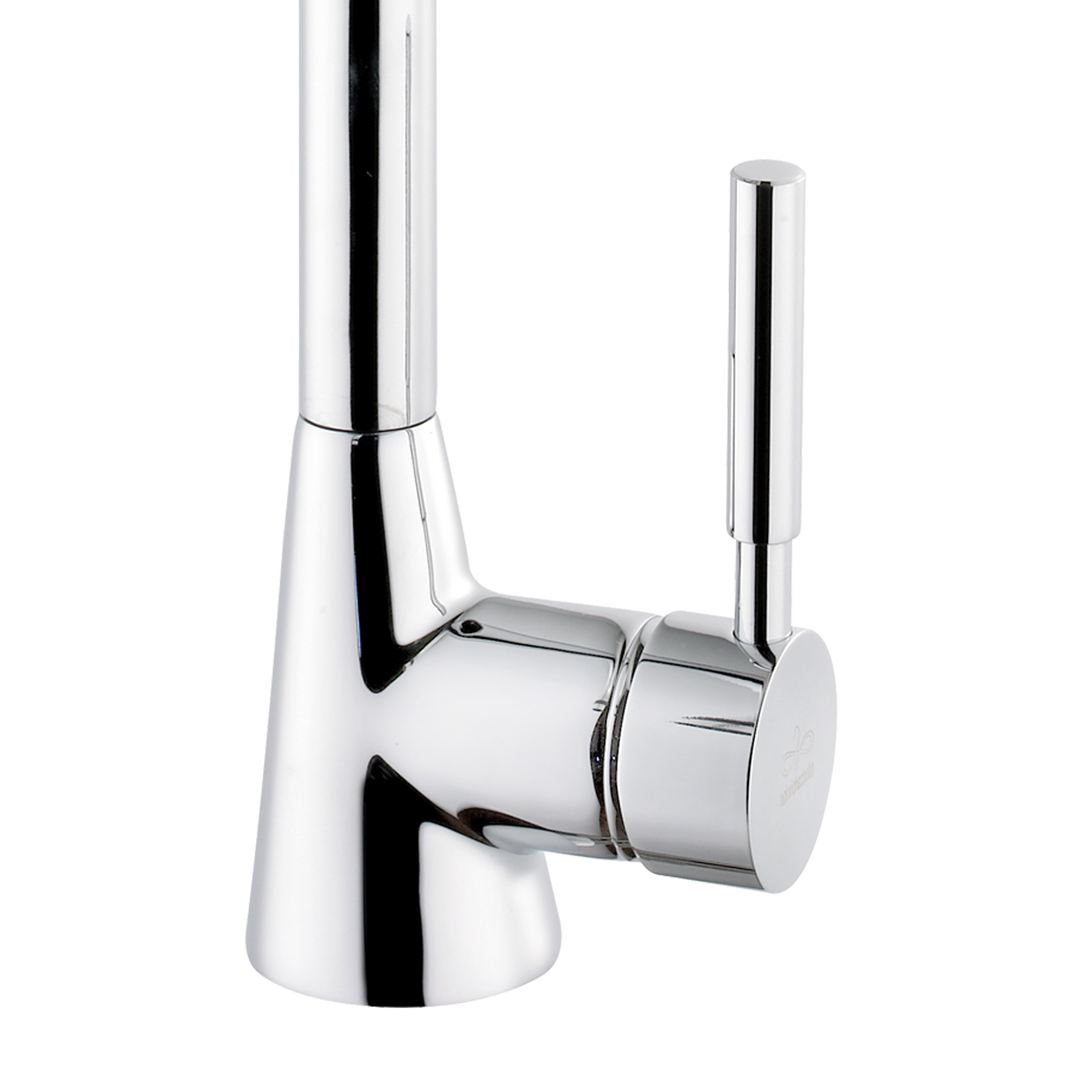

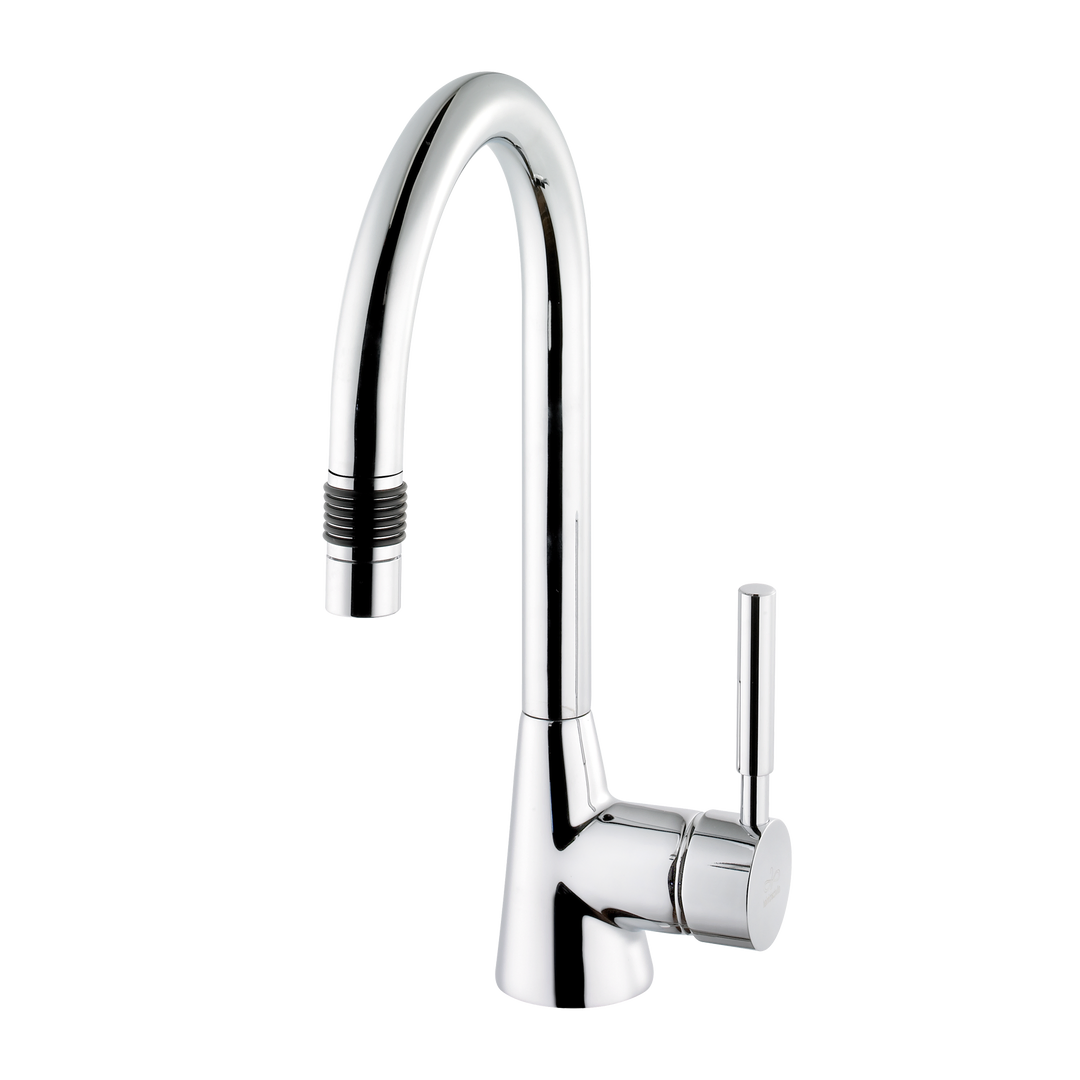

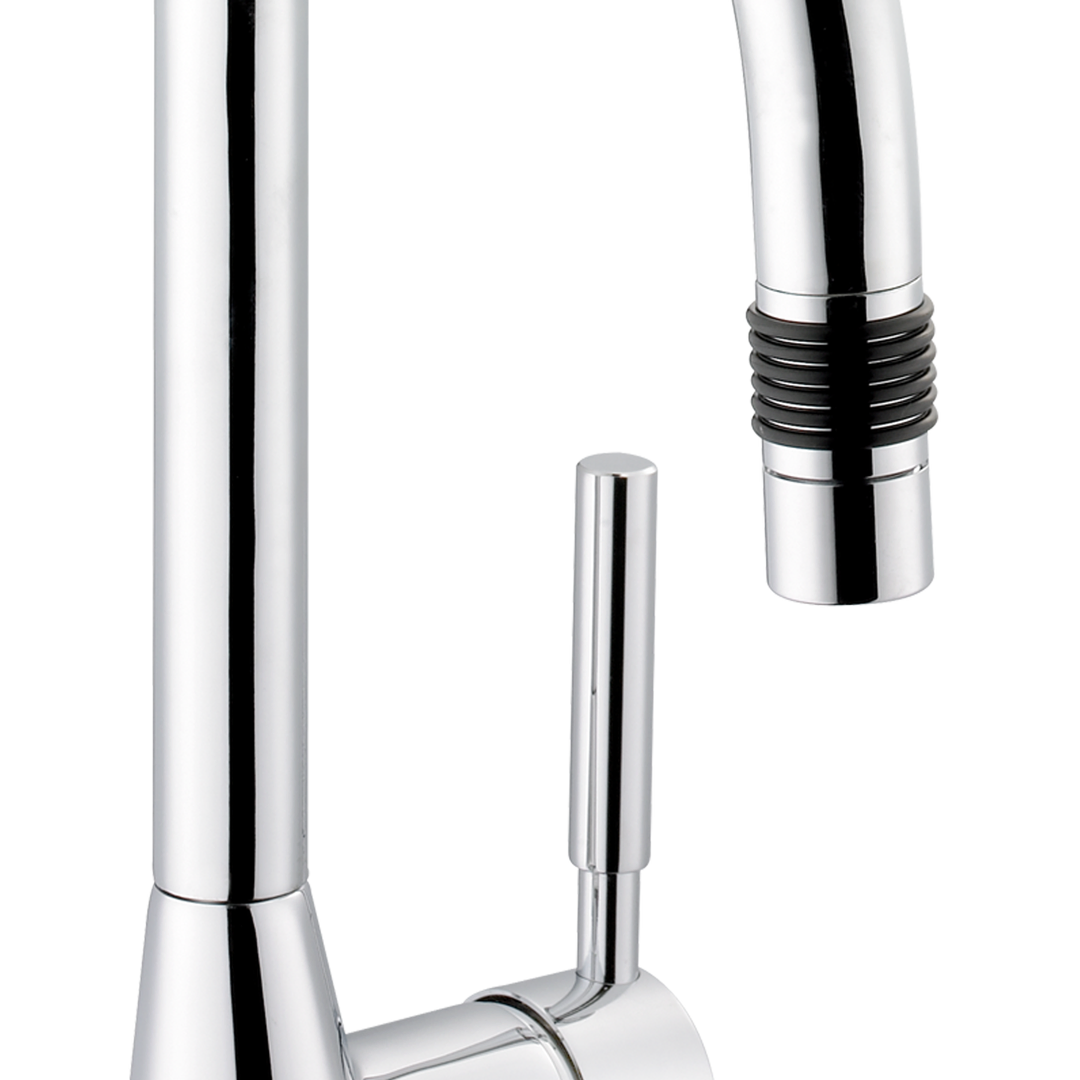

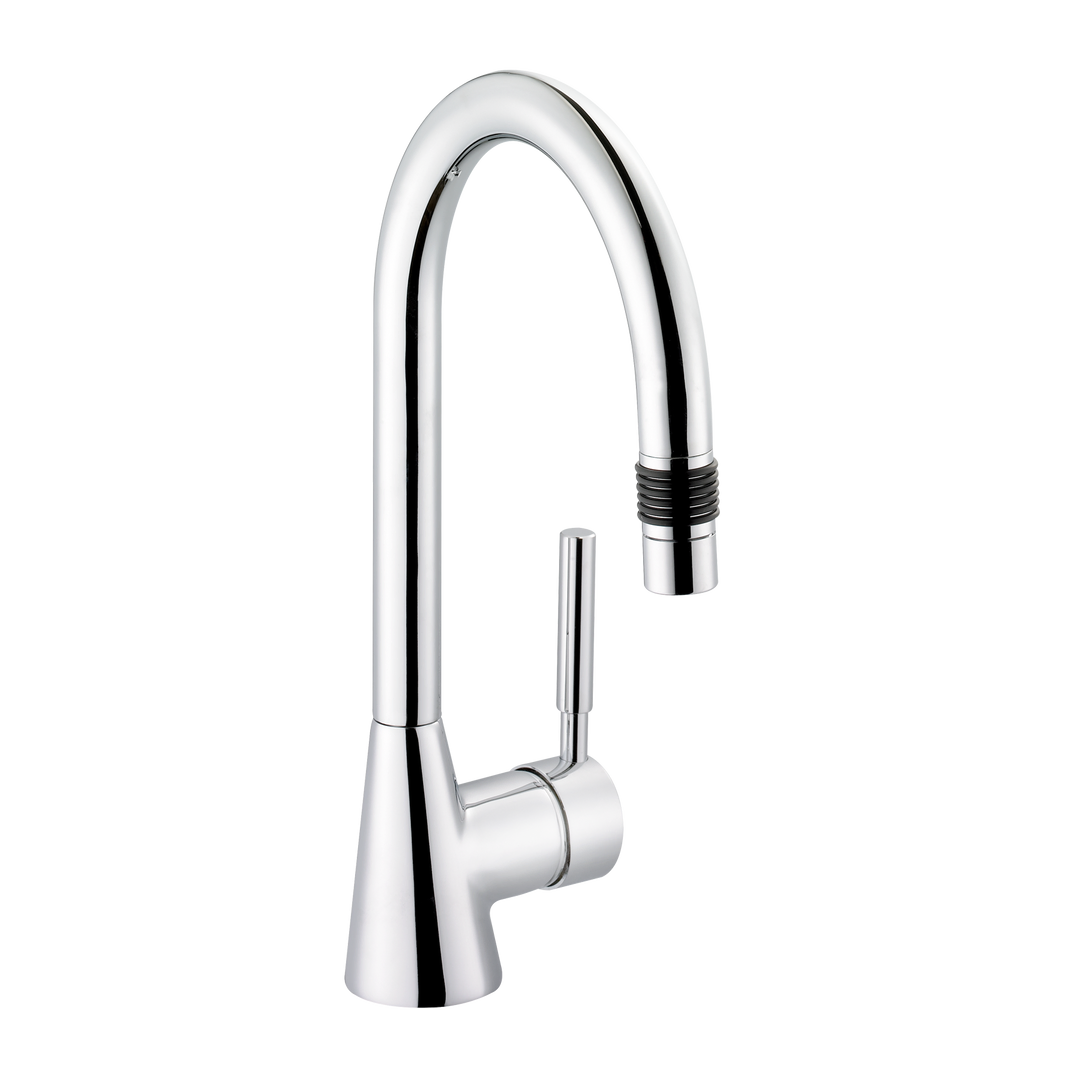

Clean elegance and flowing lines define the appearance of the vivana by heinrichschulte. The tall, gently curved spout and the sleek silhouette lend the tap a calm, confident presence that complements modern kitchens to great effect. It attracts the eye not through ostentation, but through balanced proportions and an effortless beauty of form. Precise craftsmanship, reliable performance and a design with lasting appeal make this kitchen tap the ideal solution for spaces where clarity and quality come together convincingly.
Technical information
Product features
- Z062803-00010
- Heinrich Schulte
- Kitchen mixer
- vivana
- chrome
- reach 175 mm
- height to aerator 180 mm
- maximum height 330 mm
- cartridge 35 mm
- with hot water limiter
- spout swivelling and extractable
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator flow rate class A
- single hole mounted
- with metal shower hose
- lateral control
- protected against backflow
- with shaft screw connection
Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Kitchen mixer
- Shaft screw connection kit
- Lead weight
- Check valve
- Assembly instruction
- Care instruction
Spare parts
Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH AUSLAUF FÜR EHM KÜCHENARMATUR | Z013068-00010 |
| 2 | SH ANSCHLAGSCHRAUBE | Z000235-00000 |
| 3 | SH KARTUSCHE FÜR NORMALDRUCK | Z009200-00000 |
| 4 | SH VERSCHRAUBUNG | Z009111-00000 |
| 5 | SH ROSETTE M37 X 1,5 / D:39,7X12 | Z009110-00010 |
| 6 | SH BEDIENUNGSHEBEL | Z000987-00010 |
| 7 | SH GEWEBESCHLAUCH | Z028811-00010 |
| 10 | SH LUFTSPRUDLER | Z013946-00010 |
| 12 | SH FLEXSCHLAUCH M8 X 1 - M15 X 1 | Z009074-00000 |
| 13 | SH FLEXSCHLAUCH M8 X 1 - 3/8" | Z009075-00000 |
| 14 | SH SCHAFTVERSCHRAUBUNG M34 X 1,5 | Z009196-00000 |
| 15 | SH RÜCKFLUSSVERHINDERER M15X1 | Z028914-00000 |
| 16 | SH BLEIGEWICHT | Z000287-00000 |
