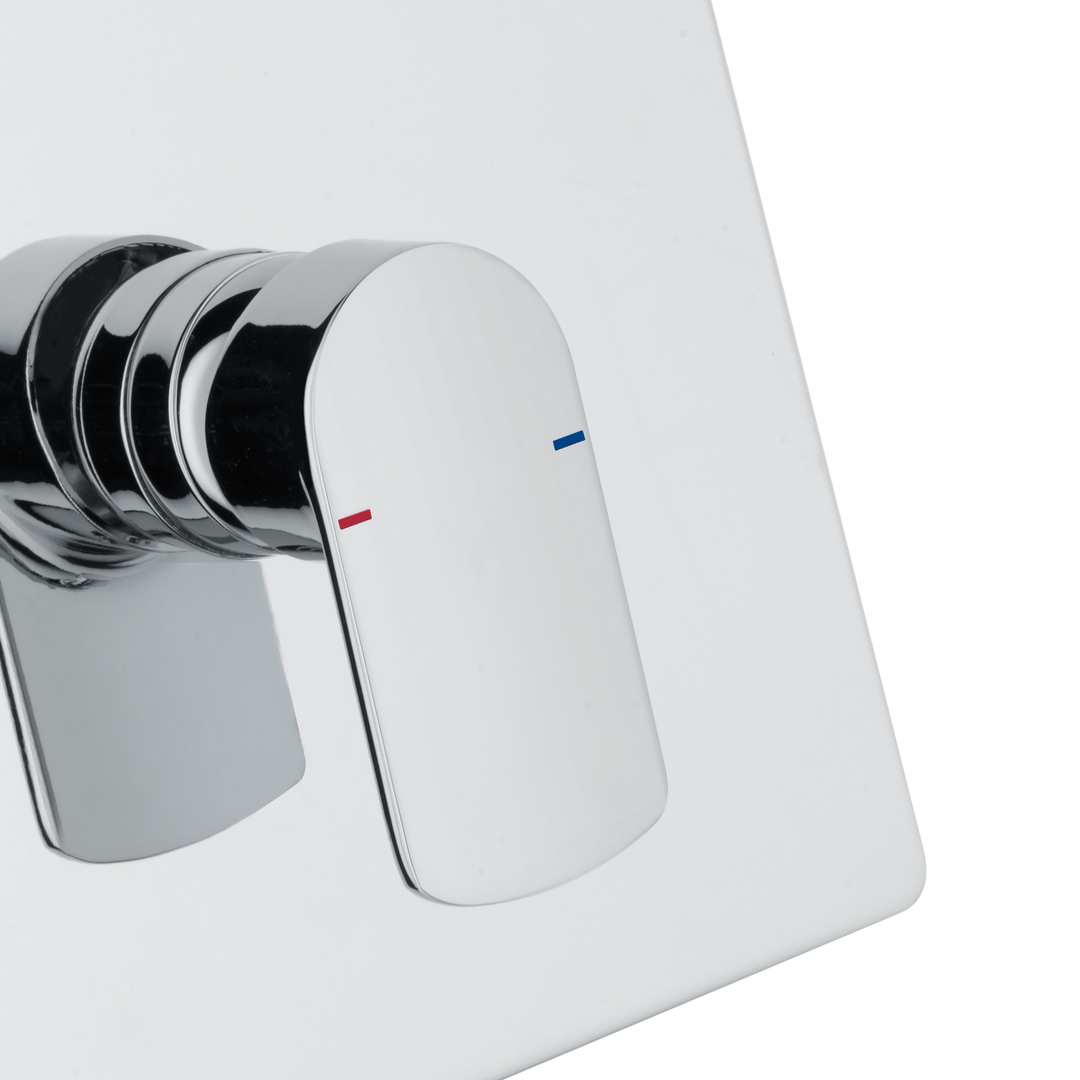

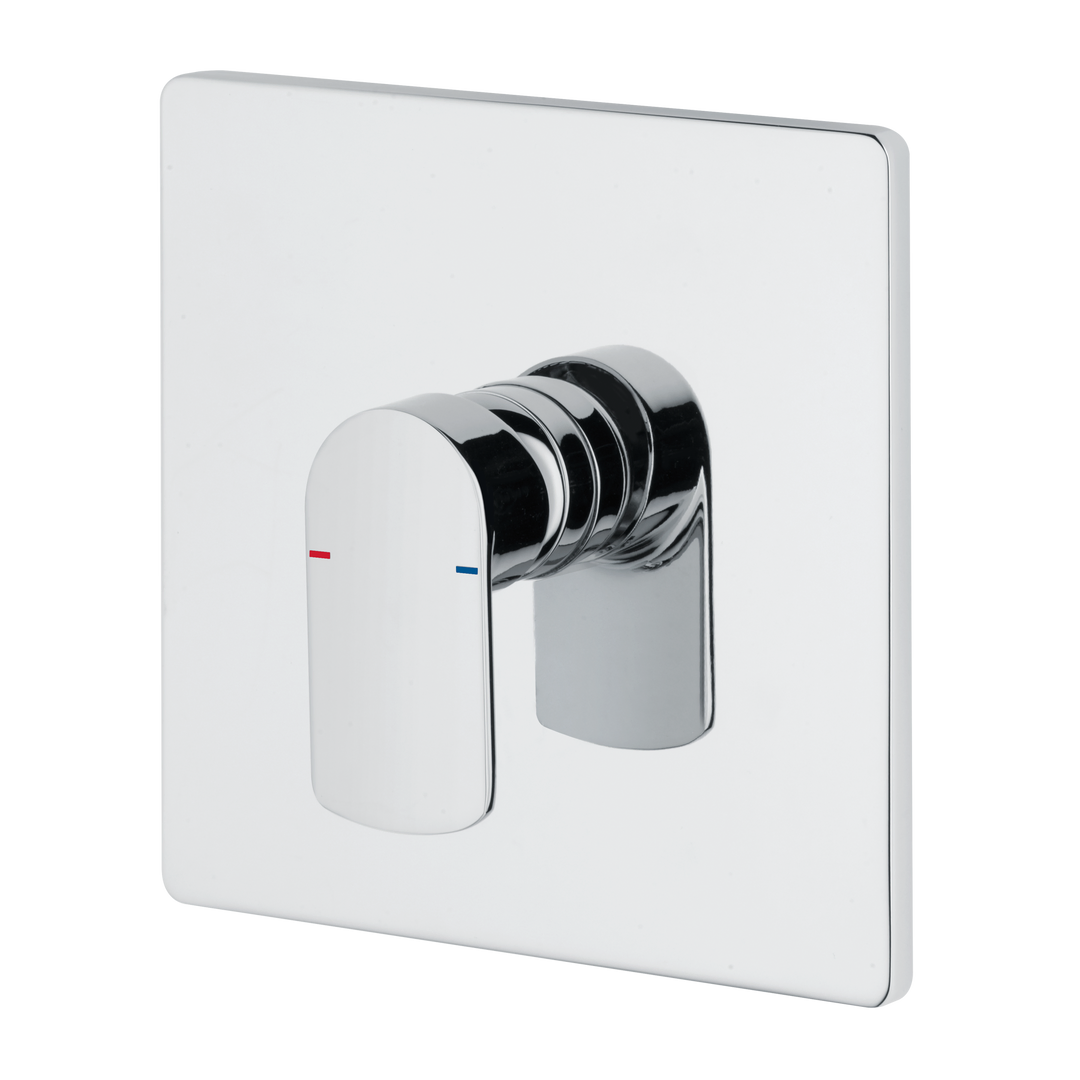

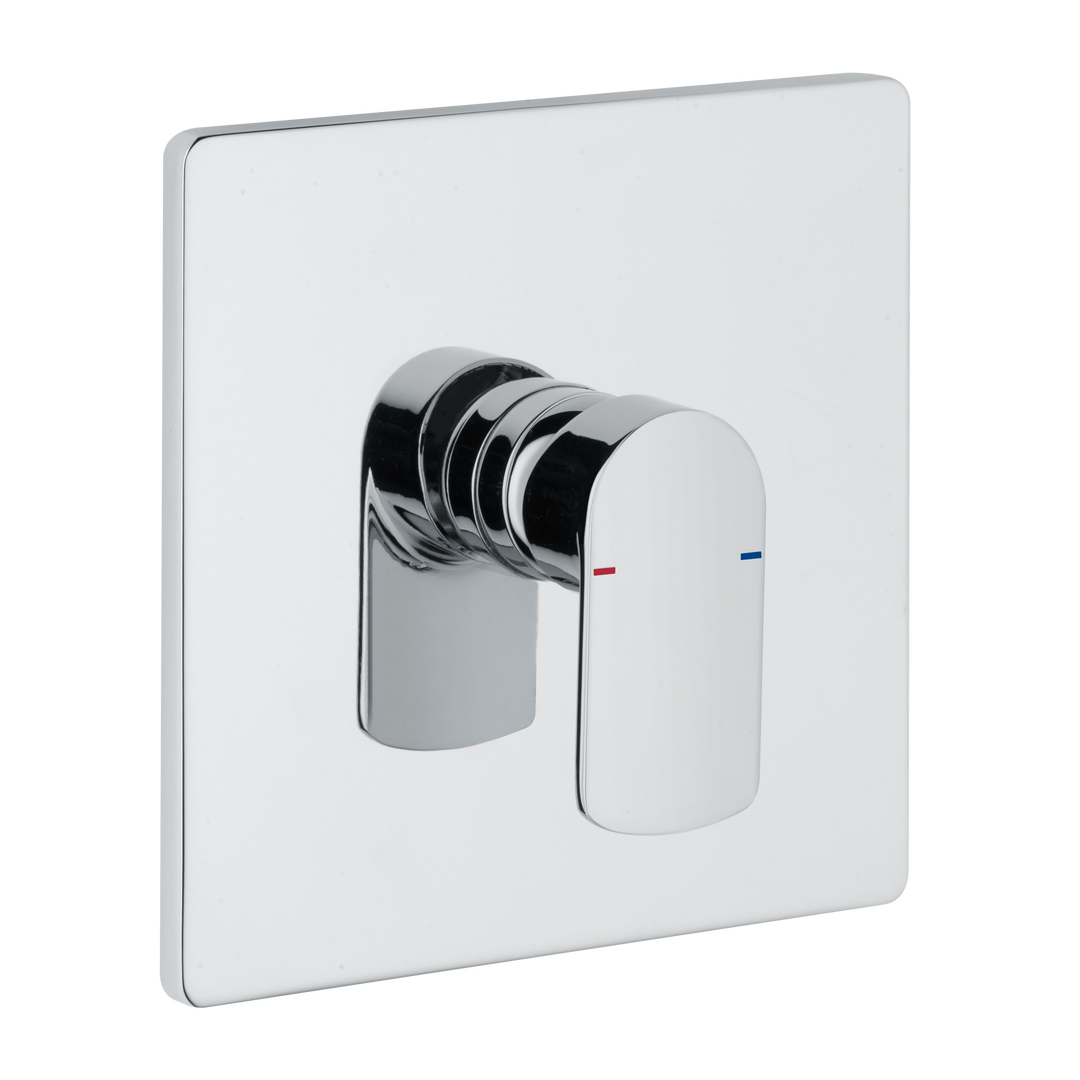

alpha-line_500 Finishing set shower mixer for Tec-box
Product description
Diese smarte und sehr wertige Unterputzarmatur schafft nicht nur wohltuenden Bewegungsfreiraum, sondern unterstreicht mit ihrer Erscheinung die extravagante Gestaltung des Badezimmers. Die brillante Oberfläche aus hochwertigem Chrom unterstreicht die hohe Qualität und Einzigartigkeit dieser Armatur. Der Hebel zelebriert Leichtigkeit und Bewegung und schafft ergonomisch durchdacht Freiraum für komfortable Bedienung. Die sanft gerundeten Ecken der elegant geformten quadratischen Wandrosette bewirken einen harmonischen Übergang zu unterschiedlichsten Wandgestaltungen.The Series alpha-line_500
Cubist influences, clean geometry and a calm presence give the alpha-line_500 by heinrichschulte its distinctive character. Straight lines, precise edges and balanced proportions lend these bathroom mixers for modern bathrooms a minimalist, architectural effect. The result is a range that brings order and design with substance to the space. The alpha-line_500 range of taps combines formal rigour with a reliability that proves its worth in everyday use just as much as it does in meeting design requirements.
Technical information
Product features
- Z057698-00010
- swivelling
- Heinrich Schulte
- Finishing set shower mixer
- alpha-line_500
- chrome
- diameter cover plates 178 mm
- cartridge 35 mm
- with hot water limiter
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- mounting with Tec-box
- with installation depth compensation
- control body +/- 18 degree adjustable
- protected against backflow
- optional accessories with anti vacuum device

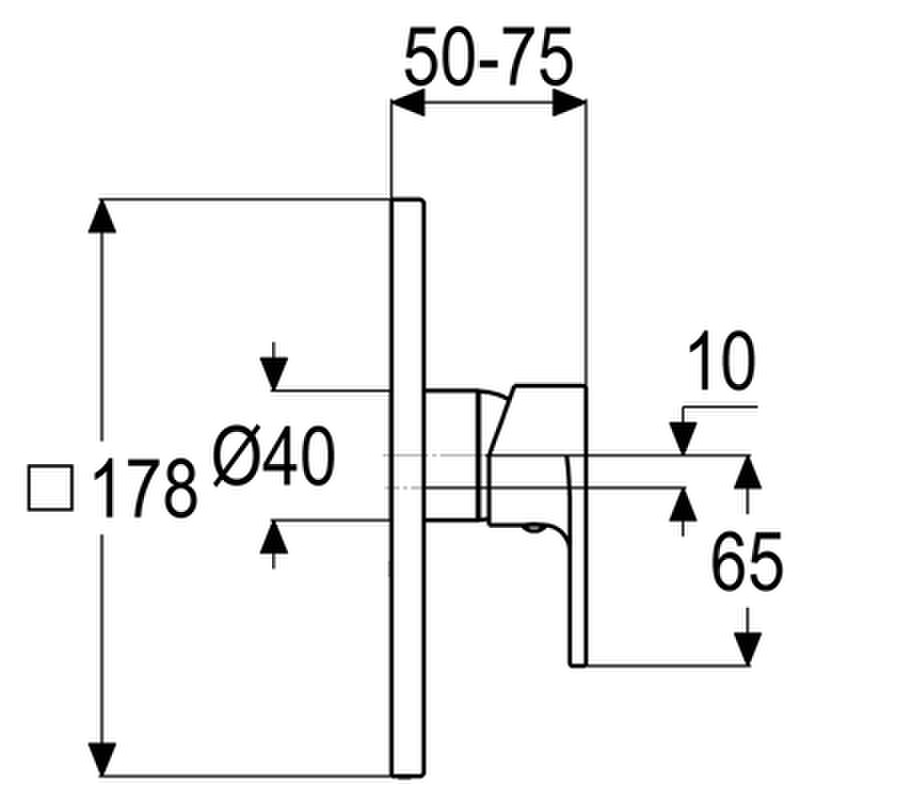

Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Conc. Monolever-Shower mixer
- Rosette
- Lever
- Screw set
- Assembly instruction
Spare parts

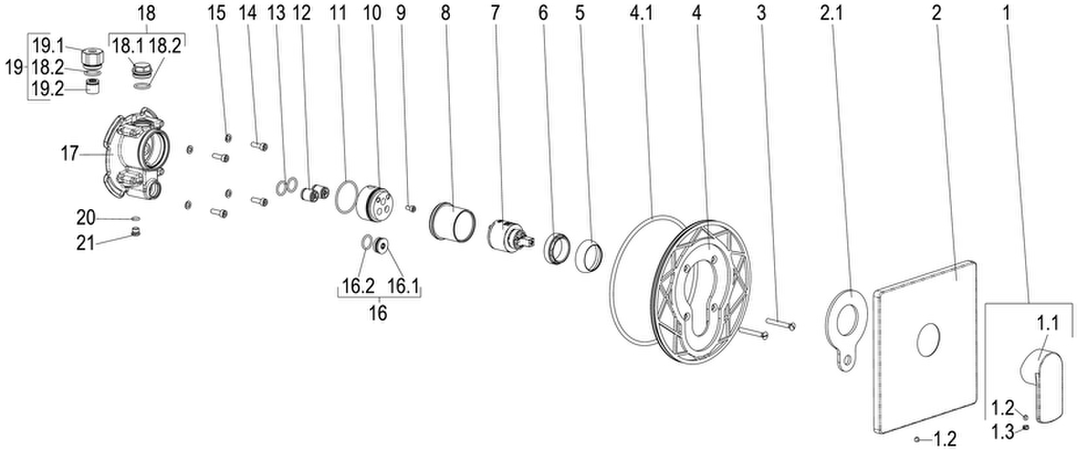

Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH BEDIENHEBEL ALPHA-LINE_500 | Z057991-00010 |
| 2 | SH ROSETTE FÜR UP BRAUSEARMATUR | Z069698-50011 |
| 3 | SH SENKKOPFSCHRAUBE M5 x 40 | Z000073-00000 |
| 5 | SH ROSETTE M37 X 1,5 / D:39,7X12 | Z009110-00010 |
| 6 | SH VERSCHRAUBUNG | Z009111-00000 |
| 7 | SH KARTUSCHE FÜR NORMALDRUCK | Z009200-00000 |
| 12 | SH RÜCKFLUSSVERHINDERER PATRONE | Z028910-00000 |
| 19 | SH ROHRBELÜFTER FÜR TEC-BOX | Z028900-00000 |
