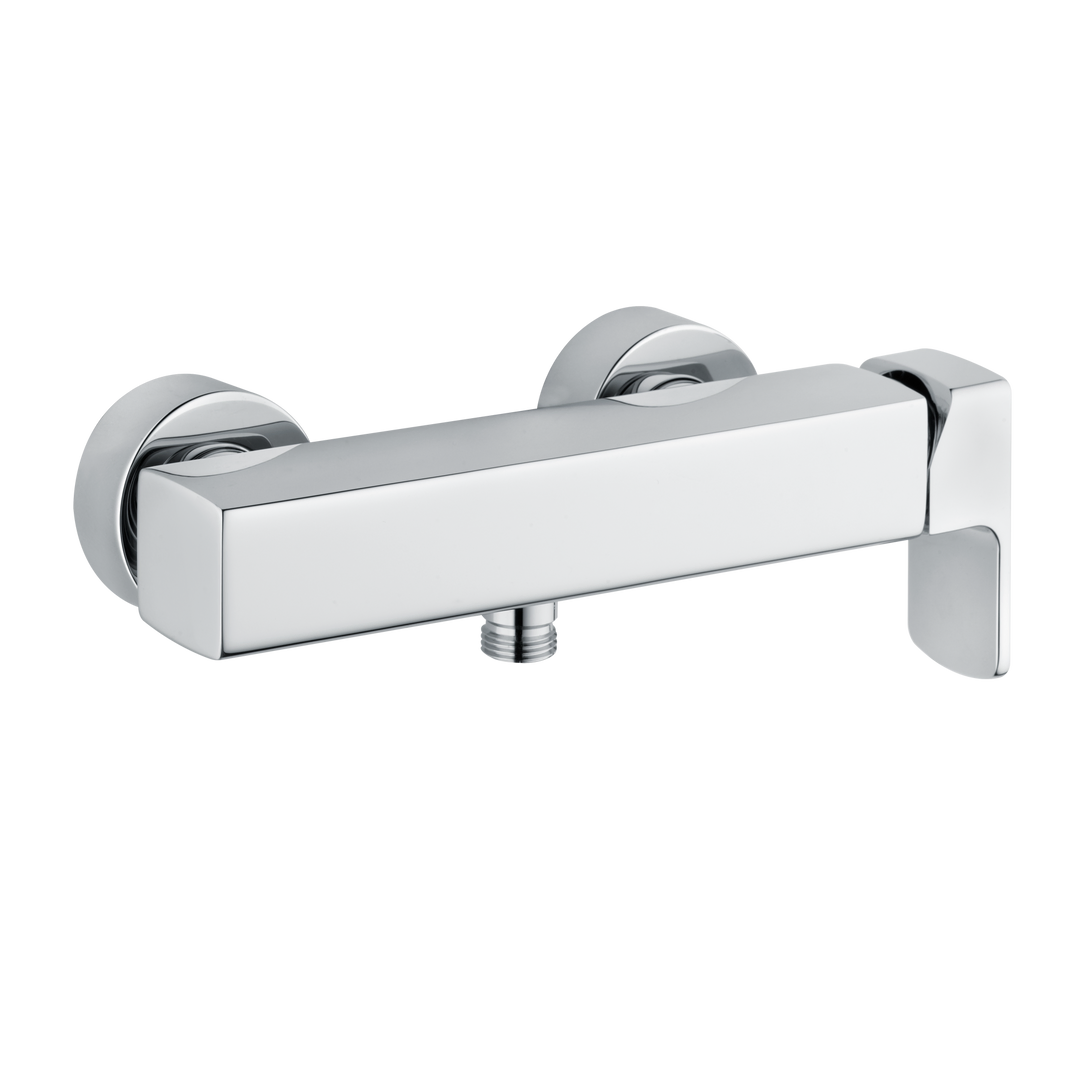

alpha-line_500 Shower mixer without shower set
Product description

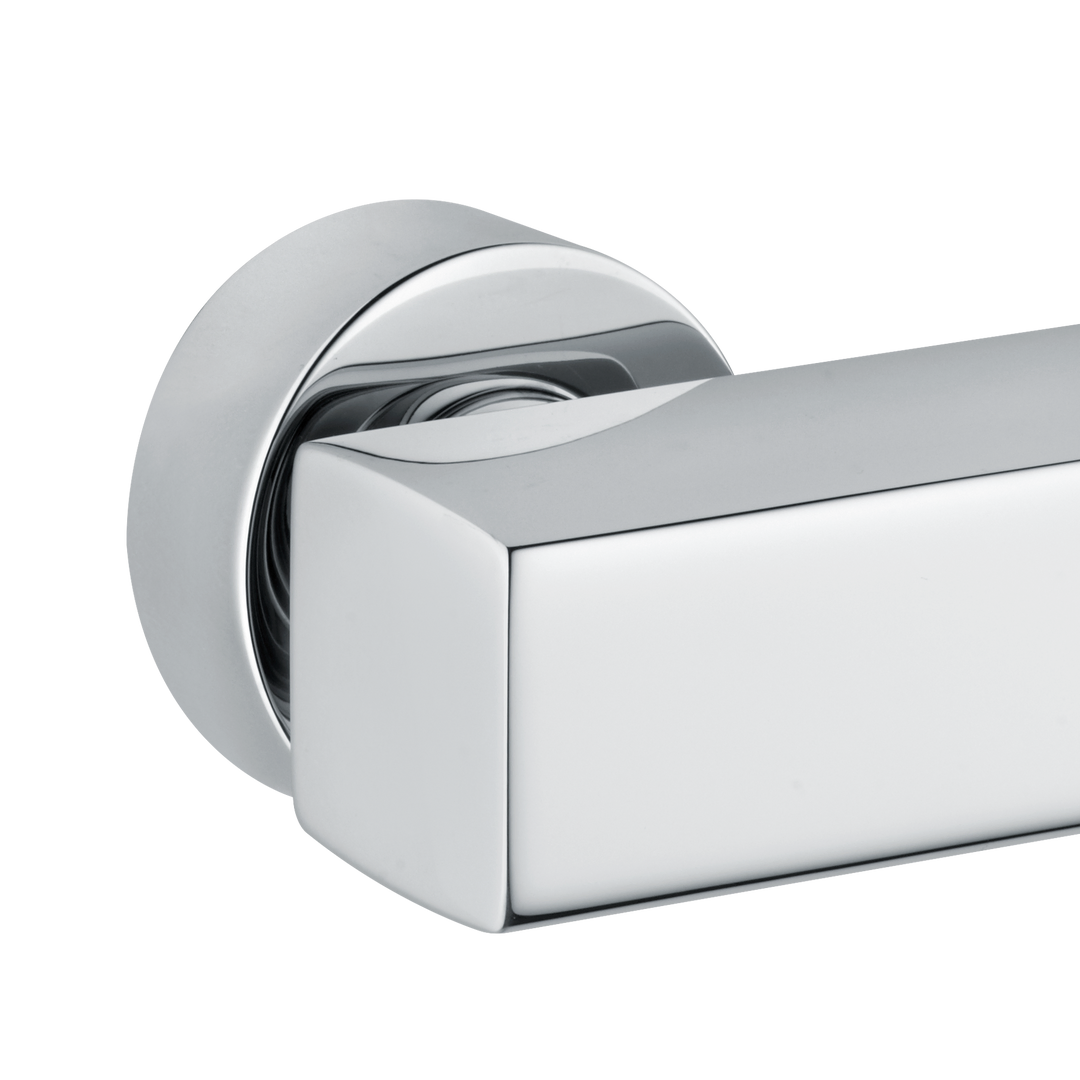

Über einen langgestreckten puristisch gestalteten Körper gelangt das Wasser in den Brauseanschluss. Die brillante Oberfläche aus hochwertigem Chrom unterstreicht die hohe Qualität und Einzigartigkeit dieser Armatur. Der Hebel zelebriert Leichtigkeit und Bewegung und schafft ergonomisch durchdacht Freiraum für komfortable Bedienung. Leicht der Wand anpassbare Schubrosetten umschließen elegant die Zuleitungen und verleihen der Armatur auch im Anschlussbereich eine sehr hochwertige Erscheinung.The Series alpha-line_500
Cubist influences, clean geometry and a calm presence give the alpha-line_500 by heinrichschulte its distinctive character. Straight lines, precise edges and balanced proportions lend these bathroom mixers for modern bathrooms a minimalist, architectural effect. The result is a range that brings order and design with substance to the space. The alpha-line_500 range of taps combines formal rigour with a reliability that proves its worth in everyday use just as much as it does in meeting design requirements.
Related products

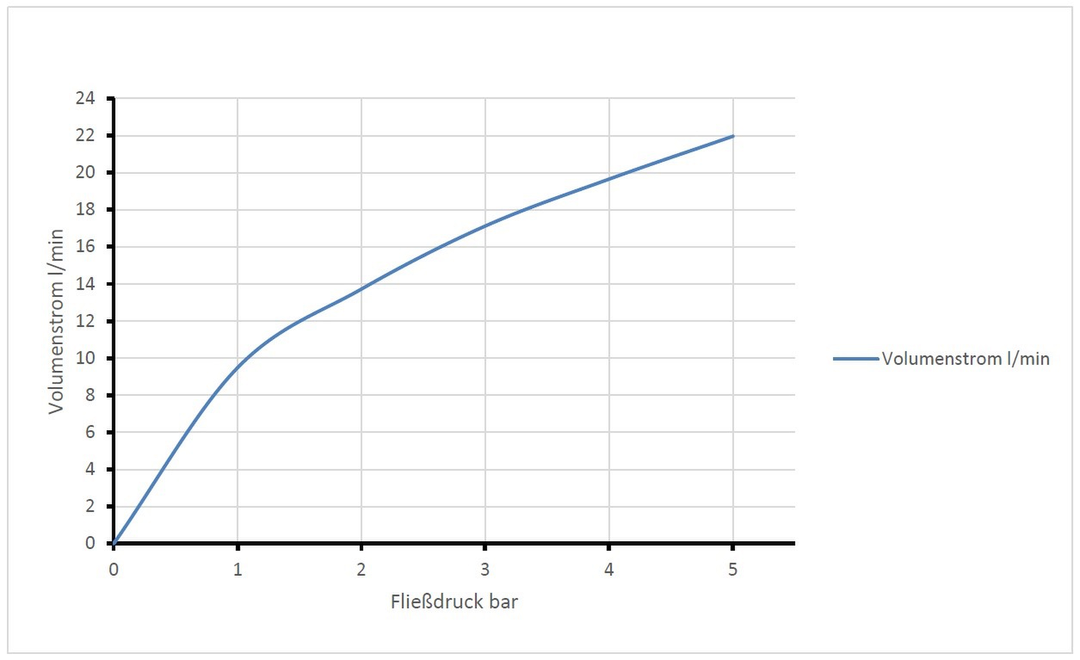

Technical information
Product features
- Z057602-00010
- Heinrich Schulte
- Shower mixer
- alpha-line_500
- chrome
- maximum width 260 mm
- centre distance 135 - 165 mm
- S-connectors 1/2"
- outlet to shower 1/2"
- cartridge 35 mm
- with hot water limiter
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- for wall mounting
- protected against backflow
- with covered S-connections
- suitable for instantaneous water heaters
- without shower set

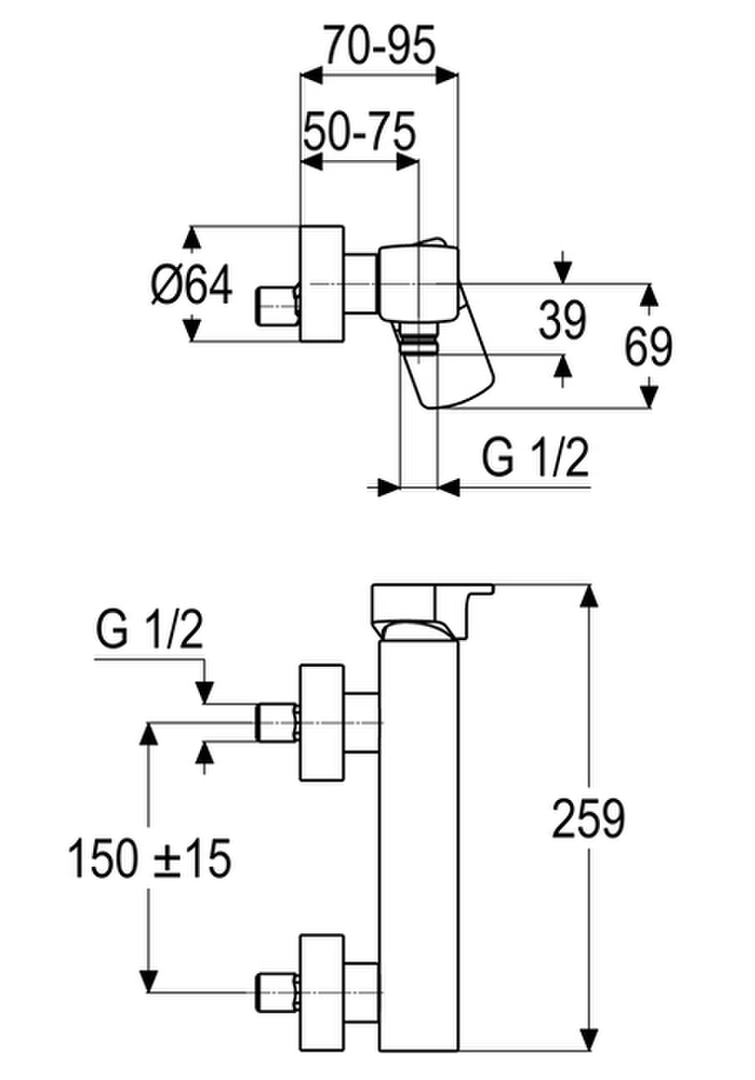

Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Monolever-Shower mixer
- Rosettes
- S-connectors
- Assembly instruction
Spare parts

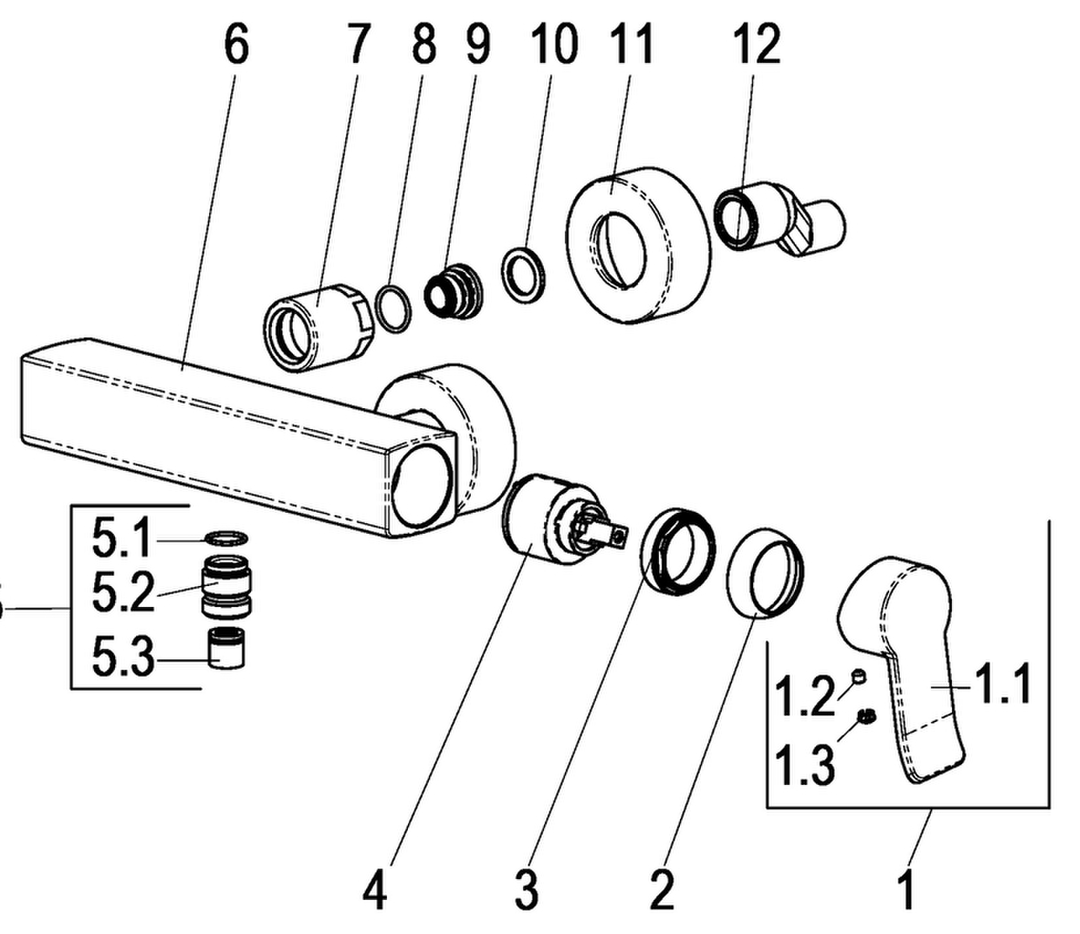

Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH BEDIENHEBEL ALPHA-LINE_500 | Z057990-00010 |
| 2 | SH SCHUBROSETTE WANNE-/BRAUSEARM. | Z000215-00010 |
| 2 | SH ROSETTE M37 X 1,5 / D:39,7X12 | Z009110-00010 |
| 3 | SH VERSCHRAUBUNG | Z009111-00000 |
| 4 | SH KARTUSCHE FÜR NORMALDRUCK | Z009200-00000 |
| 5 | SH BRAUSENIPPEL 1/2" MIT O-RING | Z028908-00010 |
| 9 | SH ANSCHLUSSNIPPEL MIT O-RING | Z000147-00000 |
