The Series alpha_100
With its compact design and gentle lines, the alpha_100 blends particularly stylishly into smaller bathroom spaces. Its design language appears light, friendly and subtly playful, without losing any of its clarity, and lends the surroundings a pleasant, balanced atmosphere. Where space needs to be used sensibly and design precisely tailored, the alpha_100 opens up a wide range of possibilities for harmonious integration. The range has been thought through down to the last detail, both technically and ergonomically, thus combining user-friendly operation suitable for everyday use with the reliable quality of heinrichschulte.
Related products
Technical information
Product features
- Z058485-00000
- Heinrich Schulte

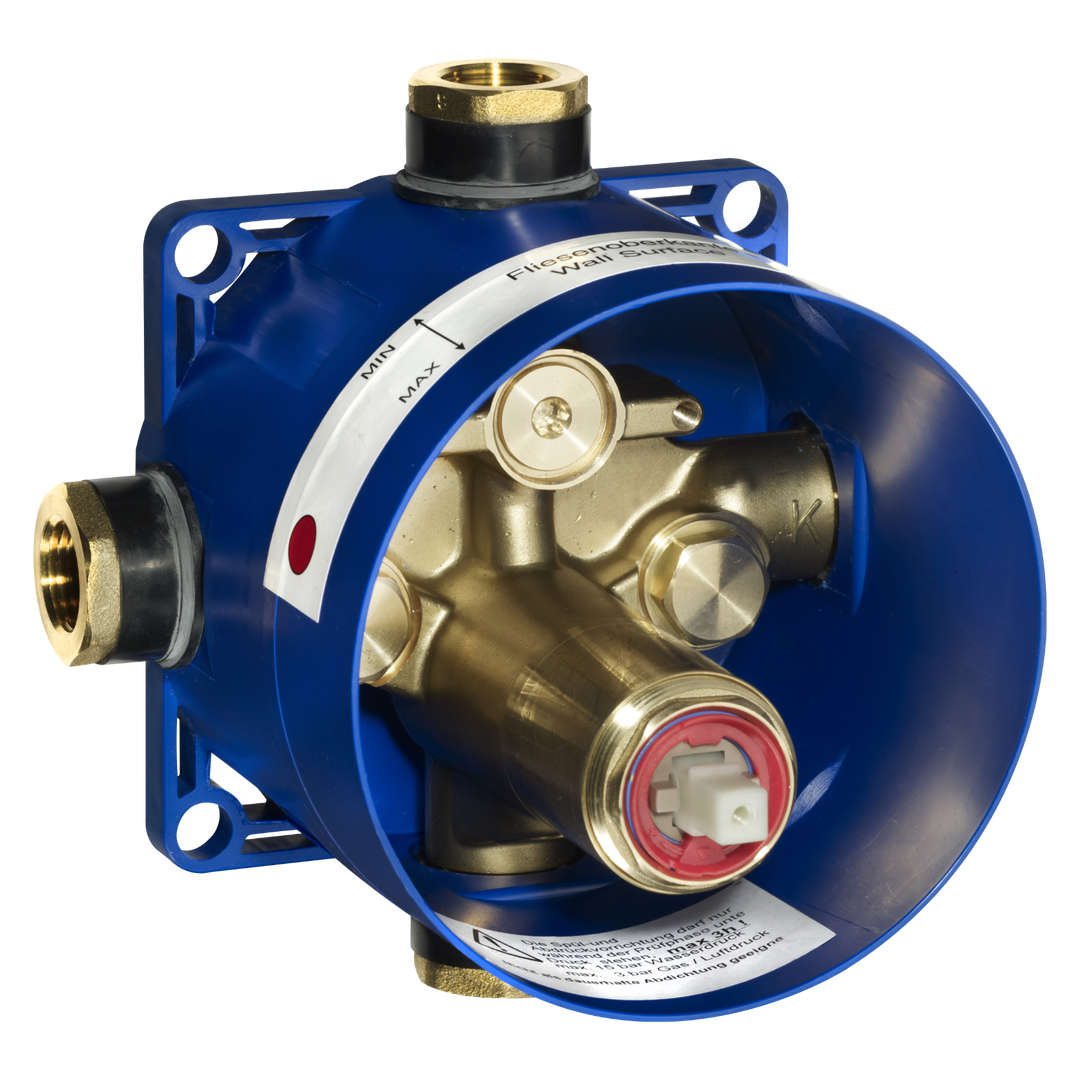

- Conc. body Tec-box_100 1/2"
- alpha_100
- thread connection 1/2"
- installation depth 70-95 mm
- cartridge 35 mm
- with hot water limiter
- materials in accordance with German Drinking Water Regulations and FEA
- suitable for conc. bath and shower mixer
- with installation depth compensation
- sealing collar and noise isolation
- with protection cap
- protected against backflow
- with distance frame
- optional accessories with spacer sleeves for rear panel installation
Dimensional drawing

Delivery and installation
The following components are included in the scope of delivery
- Conc. base body
- Sealing collar
- Protection cap
- Connection set
- Screw set
- Assembly instruction
- Care instruction
Spare parts
Exploded view

Spare parts
| Position | Description | Item Number |
|---|---|---|
| 3 | SH VERSCHRAUBUNG | Z009111-00000 |
| 4 | SH KARTUSCHE FÜR NORMALDRUCK | Z009200-00000 |
| 7 | SH GEWINDESTOPFEN M22x1 | Z000184-00000 |
| 9 | SH RÜCKFLUSSVERHINDERER PATRONE | Z028901-00000 |
| 16 | SH ROHRBELÜFTER FÜR 69492 | Z028899-00000 |
| 17 | SH ABSTANDSRAHMEN TEC-BOX | Z051485-84030 |
