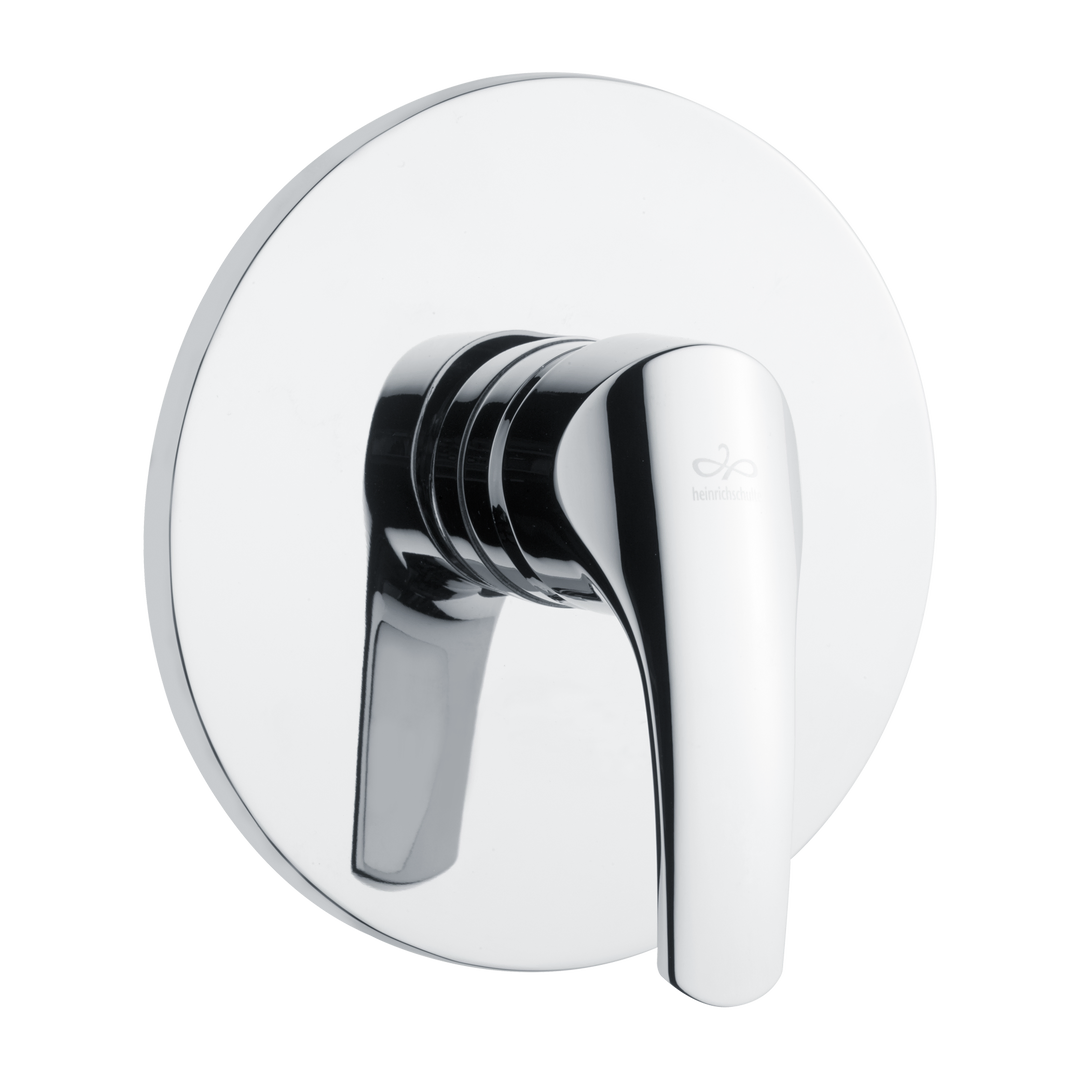

ascona_1 Finishing set shower mixer

SKU: Z051697-50010 Categories: , ,
Surface: chrome

The Series ascona_1

Dynamism and organic design come together in a unique way in the ascona_1 line by heinrichschulte. The rising spout and the control lever that sweeps upwards in parallel give the mixers in this line a dynamic, characterful design language that exudes individuality whilst blending harmoniously into a variety of interior concepts. Refined from classic design features, ascona_1 feels both familiar and distinctive. Its lively lines and meticulous attention to detail make it a series that stylishly complements both modern and classic bathrooms.

Discover the line

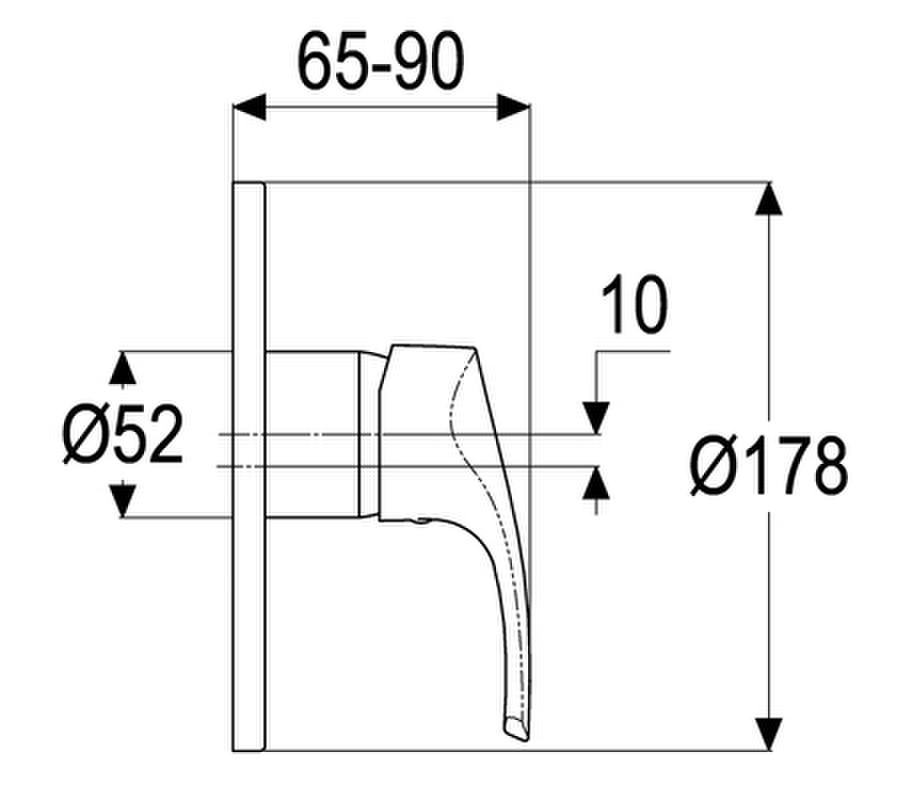

Technical information

Product features

  • Z051697-50010
  • Heinrich Schulte
  • Finishing set shower mixer
  • ascona_1
  • chrome
  • diameter cover plates 180 mm
  • cartridge 44 mm
  • with hot water and flow rate limiter
  • materials in accordance with German Drinking Water Regulations and FEA
  • lever metal
  • mounting with Tec-box
  • with installation depth compensation
  • control body +/- 18 degree adjustable
  • protected against backflow
  • optional accessories with anti vacuum device

Delivery and installation

The following components are included in the scope of delivery

  • Conc. Monolever-Shower mixer
  • Rosette
  • Lever
  • Screw set
  • Assembly instruction

Spare parts

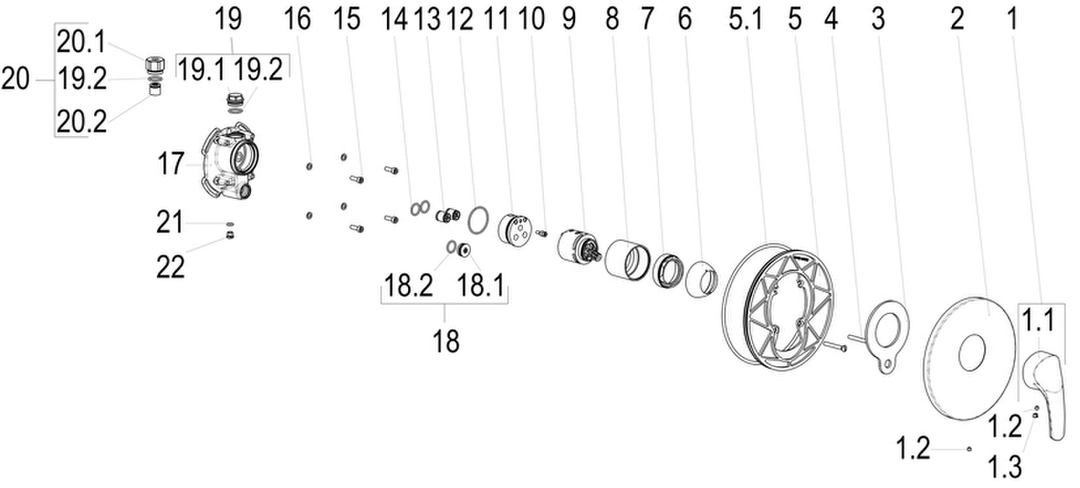

Exploded view

Explosionszeichnung

Spare parts

Position Description Item Number
1 SH BEDIENHEBEL ASCONA_1 Z051970-00010
2 SH ROSETTE FÜR UP BRAUSEARMATUR Z069697-50010
4 SH SENKKOPFSCHRAUBE M5 x 40 Z000073-00000
6 SH ROSETTE M48 X 1 Z009076-00010
7 SH VERSCHRAUBUNG F. SCHRAUBKAPPE Z009078-00000
9 SH KARTUSCHE FÜR NORMALDRUCK Z000070-00000
13 SH RÜCKFLUSSVERHINDERER PATRONE Z028910-00000
20 SH ROHRBELÜFTER FÜR TEC-BOX Z028900-00000
