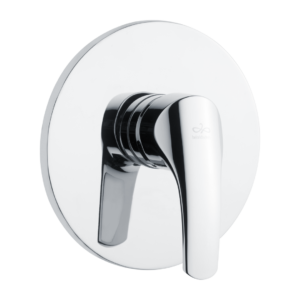

ascona_1 Finishing set thermostatic shower mixer for Tec-box
The Series ascona_1
Dynamism and organic design come together in a unique way in the ascona_1 line by heinrichschulte. The rising spout and the control lever that sweeps upwards in parallel give the mixers in this line a dynamic, characterful design language that exudes individuality whilst blending harmoniously into a variety of interior concepts. Refined from classic design features, ascona_1 feels both familiar and distinctive. Its lively lines and meticulous attention to detail make it a series that stylishly complements both modern and classic bathrooms.
Technical information
Product features
- Z051692-00012
- Heinrich Schulte
- Finishing set thermostatic shower mixer
- ascona_1
- chrome
- diameter cover plates 178 mm
- thermo element
- materials in accordance with German Drinking Water Regulations and FEA
- mounting with Tec-box
- with installation depth compensation
- control body +/- 18 degree adjustable
- protected against backflow
- with pre shut-off valve
- with hot water safety stop at 38 degree
- optional accessories with anti vacuum device
Dimensional drawing
Delivery and installation
The following components are included in the scope of delivery
- Conc. thermostatic shower mixer
- Rosette
- Screw set
- Handle
- Assembly instruction
Spare parts
Exploded view
Spare parts
| Position | Description | Item Number |
|---|---|---|
| 1 | SH GRIFF THERMOSTAT TEMPERATUR | Z069995-00010 |
| 3 | SH SENKKOPFSCHRAUBE M5 x 40 | Z000073-00000 |
| 7 | SH THERMOELEMENT | Z009260-75000 |
| 10 | SH ABSPERRSTOPFEN ZU THERMOSTAT | Z069492-44000 |
| 12 | SH RÜCKFLUSSVERHINDERER PATRONE | Z028906-00000 |
| 15 | SH VERSCHRAUBUNG FÜR UMSTELLUNG | Z009135-40010 |
| 16 | SH RASTBUCHSE | Z000413-00000 |
| 18 | SH KERAMIK-OT LIFETIME MOTION | Z009136-00000 |
| 20 | SH ZENTRIERRING | Z000434-00000 |
| 22 | SH GRIFF THERMOSTAT UMSTELLUNG | Z069994-00010 |
